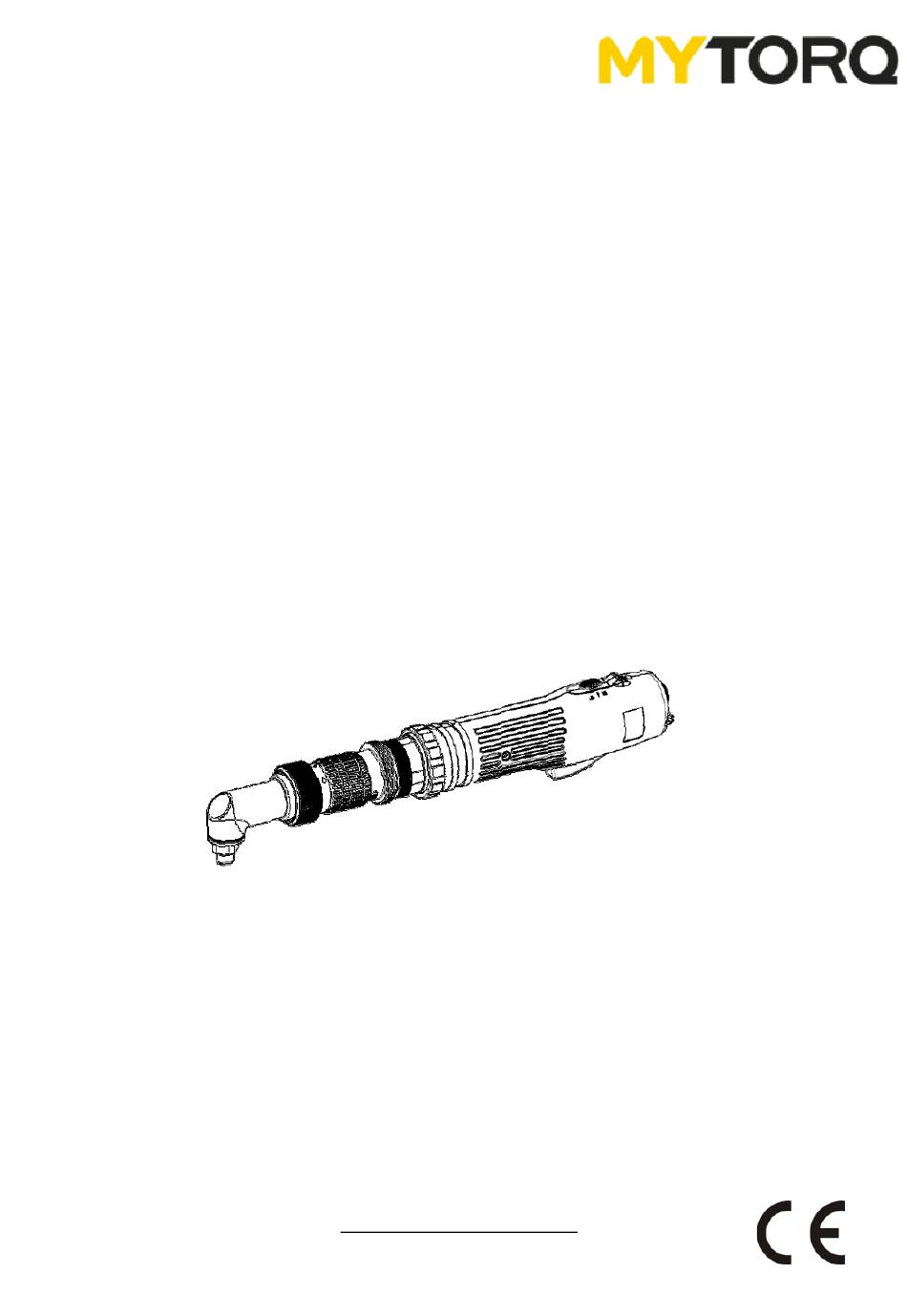

OPERATION AND MAINTENANCE MANUAL
MYLR-0205
MYLR-0375
MYLR-0610
MYLR-0815
MYLR-0610F
MYLR-0815F
MYLR-1222
Attention!
MYLR Series is belonging to high torque series. For safety consideration,
please collaborate it with Auxiliary Arm (KP-AUXA Series).
DC-TYPE Automatic Non-Carbon-Brush Series
SAING EI CORP.
https://www.mytorqtools.com
Y2F186A-4E-001
Advertisement
Related Manuals for MYTORQ MYLR Series
Summary of Contents for MYTORQ MYLR Series
- Page 1 OPERATION AND MAINTENANCE MANUAL MYLR-0205 MYLR-0375 MYLR-0610 MYLR-0815 MYLR-0610F MYLR-0815F MYLR-1222 Attention! MYLR Series is belonging to high torque series. For safety consideration, please collaborate it with Auxiliary Arm (KP-AUXA Series). DC-TYPE Automatic Non-Carbon-Brush Series SAING EI CORP. https://www.mytorqtools.com Y2F186A-4E-001...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. is not responsible for customer modification of tools for applications on which was not consulted. SAING EI SAING EI WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation this tool and save these instructions.
- Page 3 Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Page 4 d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Do not let visitors touch the tool or extension cord. All visitors should be kept away from work area. e) Maintain power tools.
- Page 5 7) Kindly note that MYLR-0205/0375/0610/0815/0610F/0815F/1222 will be enclosed with the torque fixing ring. The torque fixing ring can protect the operator and avoid getting hurt by the threads on the screwdriver. And it can fix the torque and prevent the torque to be adjusted. In order to prevent getting hurt, kindly check if the torque fixing ring is fixed when using the screwdriver and adjusting the torque.
- Page 6 Grounding Instructions This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding 1、 result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors.
- Page 7 Operations Cautions 1. Before changing bits from MYLR Series screwdriver, make sure the Forward / Reverse switch stays at “OFF” position. 2. To avoid damaging the housing of screwdriver, do not allow chemicals get in touch with housing of screwdriver.
- Page 8 CAUTION Do not drop or abuse the tool. Whenever a tool is not being used, position the Power Switch to the “OFF” position and unplug the power cord. Description of Operation Attaching / detaching bit and bit type Push up the holder clamp by fingertip, and it will be unlocked.
- Page 9 CAUTION 1. The use of other than genuine MYTORQ replacement parts may Result in decreased tool performance and increased maintenance and may invalidate all warranties. 2. All repairs and maintenance of this tool and its word must be performed by an authorized service center.
- Page 10 Specifications MODEL MYLR-0205 MYLR-0375 MYLR-0610 MYLR-0815 MYLR-0610F MYLR-0815F MYLR-1222 Input voltage (DC) DC 40V Power Consumption Torque (N.m) 3~7.5 6~10 8~15 6~10 8~15 12~22 Repeatable Torque ±5% Accuracy (%) Stepless Torque Adjustment Unloaded Rotation 1200 Speed (r.p.m) ±10% Machine Screw ≤5 ≤6 ≤8...
- Page 11 Torque Adjustment Operation To adjust the torque on these screwdrivers. Proceed as follows: 1. Determine the torque output of the tool by checking a tightened Fastener with a torque wrench. 2. Increase or decrease the torque by rotating the Spring Adjusting Ring.
