Summary of Contents for MYTORQ MYBT-AS0320

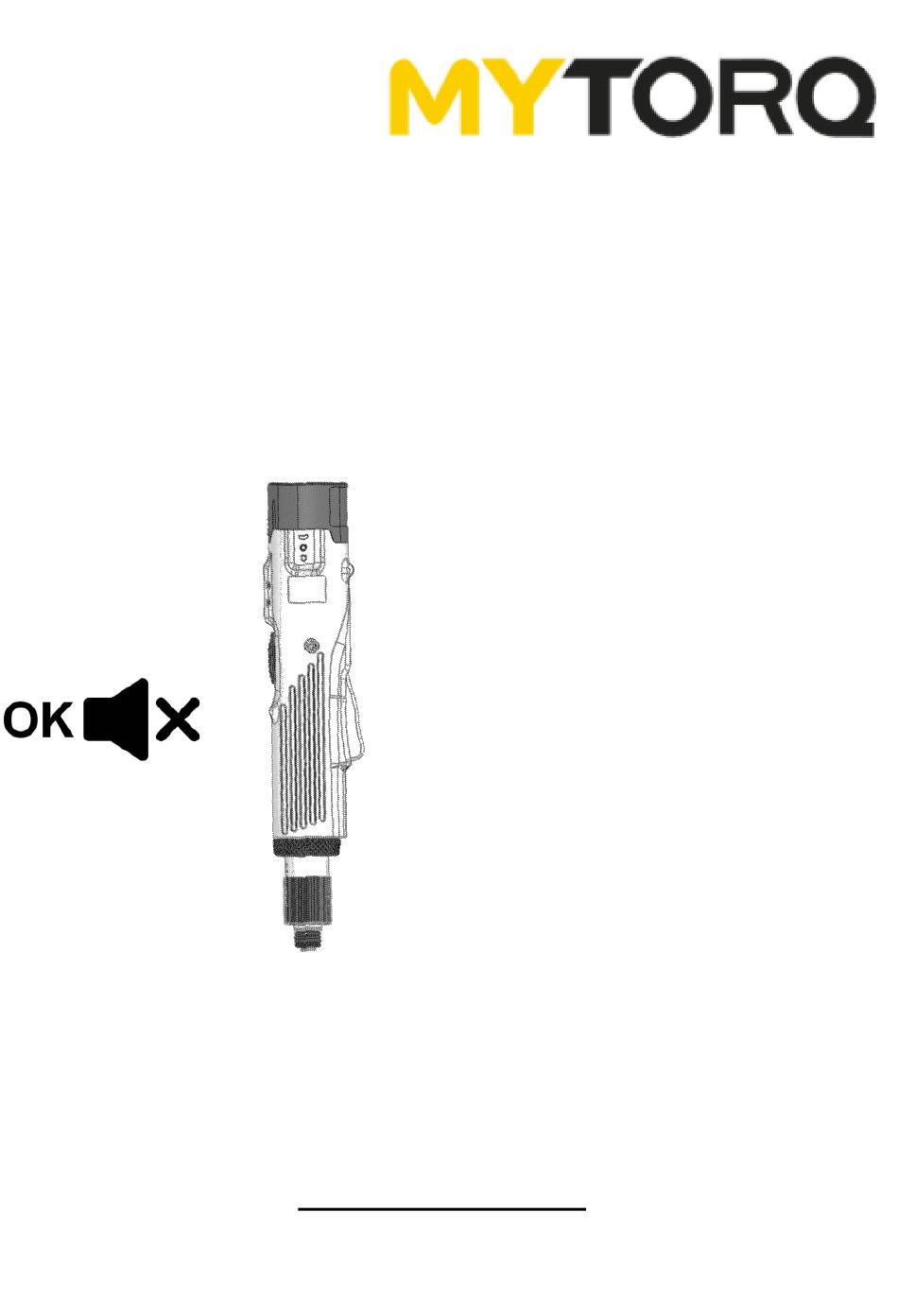

- Page 1 Automatic Industrial Cordless Brushless Power Torque Screwdrivers Series OPERATION AND MAINTENANCE MANUAL MYBT-AS0320 MYBT-AS0830 MYBT-AS1545 Rechargeable -TYPE Automatic Brushless Series ANLIDAR INDUSTRIAL CO., LTD. http://www.anlidar.com Y2F151A-5E-001...
-
Page 2: Icon Instructions
Before you use the Cordless Screwdriver for the first time, it is essential to read and understand the manual completely (including the spare parts view). The term “Cordless Screwdriver” in all of the warning listed below refers to your main operated appliance. Icon Instructions 1. - Page 3 Warning Read all instructions and make sure the appearance of the device has no damage before you use it. Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. 1. Keep the working area nice and clean. 1.1 Mess and dark areas may cause of accidents.
- Page 4 Cordless Tool Protections ▉Over electric current protection ▉Prevent from low power ▉Thermal Protector ▉Stall protection ▉Slow rotation protection ▉Reverse control protection ▉Battery Identification ▉Sleep & power saving mode Warning Do not attempt to repair or disassemble this cordless screwdriver, the warranty will be considered void.
-
Page 5: Insert Battery Steps
Follow belw steps to correctly install & remove battery. Insert Battery Steps Remove Battery Steps (1) Press the release button and take it out of the (1) Take screwdriver and battery. Device. Battery Release Button (2) Insert the rechargeable battery into the device (2) Follow the arrow direction. -
Page 6: Function / Operating Introduction
Function / Operating Introduction Function Name Table Description Description Trigger Switch Driver Hook Forward/Reverse Lever S waist Screw Hole Bit Sleeve S Waist Hook Torque Adjusting Ring OK/NG/Power/Hi&Lo Indicating Light Torque Locker/Coupler... -
Page 7: Manual / Function
Lo for slowest rotation. It's possible that the uncompleted shut-off occurs when the switch is setup to Lo and the presetting torque is more than 50% of torque range. Please refer to the following table. Lo Switch Shut-off MYBT-AS0320 MYBT-AS0830 MYBT-AS1545 1.5( N.m )↓... - Page 8 (3) Bit Sleeve To Switch the bit and compatibility, pull the head of the type B screwdriver, and install the bit according to the diagram below, and push it in following the arrow indicated on the diagram. Pull the bit holder Insert the bit (4) Torque Adjustment Ring: Turn torque adjusting R ring counter clock wise to increase torque output, on the other hand decrease...
- Page 9 (9) OK/NG/Power/Hi&Lo Indicating Light Explanation Protection Explanation: The indicating LEDS will show Hi/Lo when push Forward/Reverse lever to the middle position. Speed can't be adjusted when temperature protection is activated. Please wait until temperature protection is deactivated. Release Screw Current switch to reaches set Start...
-
Page 10: Other Cautions
The longer use of the device, torque reduction will become stable and the users could measure the torque by a tester on a regular time schedule to check if the torque power still meets the criteria. 13. The torque range of MYBT-AS0320/ MYBT-AS0830/MYBT-AS1545 must be measured by the ANLIDAR torque meter KTM-150. -
Page 11: Specifications
Specifications MODEL MYBT-AS0320 MYBT-AS0830 MYBT-AS1545 INPUT VOLTAGE(DC) DC 10.8V 3-20 8~30 (kgf.cm) 15-45 TORQUE 2.57-17.35 6.94-26.02 (Lbf.in) 13.02-39.06 0.29-1.96 0.78-2.94 (N.m) 1.47-4.41 Torque accuracy (%) ±3% Torque adjustment Stepless Duty cycle 1.0s ON 3.0s OFF Unloaded 1200 1200 Speed (min )±10%... -
Page 12: Torque Adjustment Operation
Torque Adjustment Operation To adjust the torque on these screwdrivers. Proceed as follows : Determine the torque output of the tool by checking a tightened fastener with a torque wrench. Increase or decrease the torque by rotating torque Adjusting Ring. Rotating the Ring clockwise to a higher number on the torque Scale increase torque output while rotating the Ring counterclockwise to a lower number decreases the torque output.
