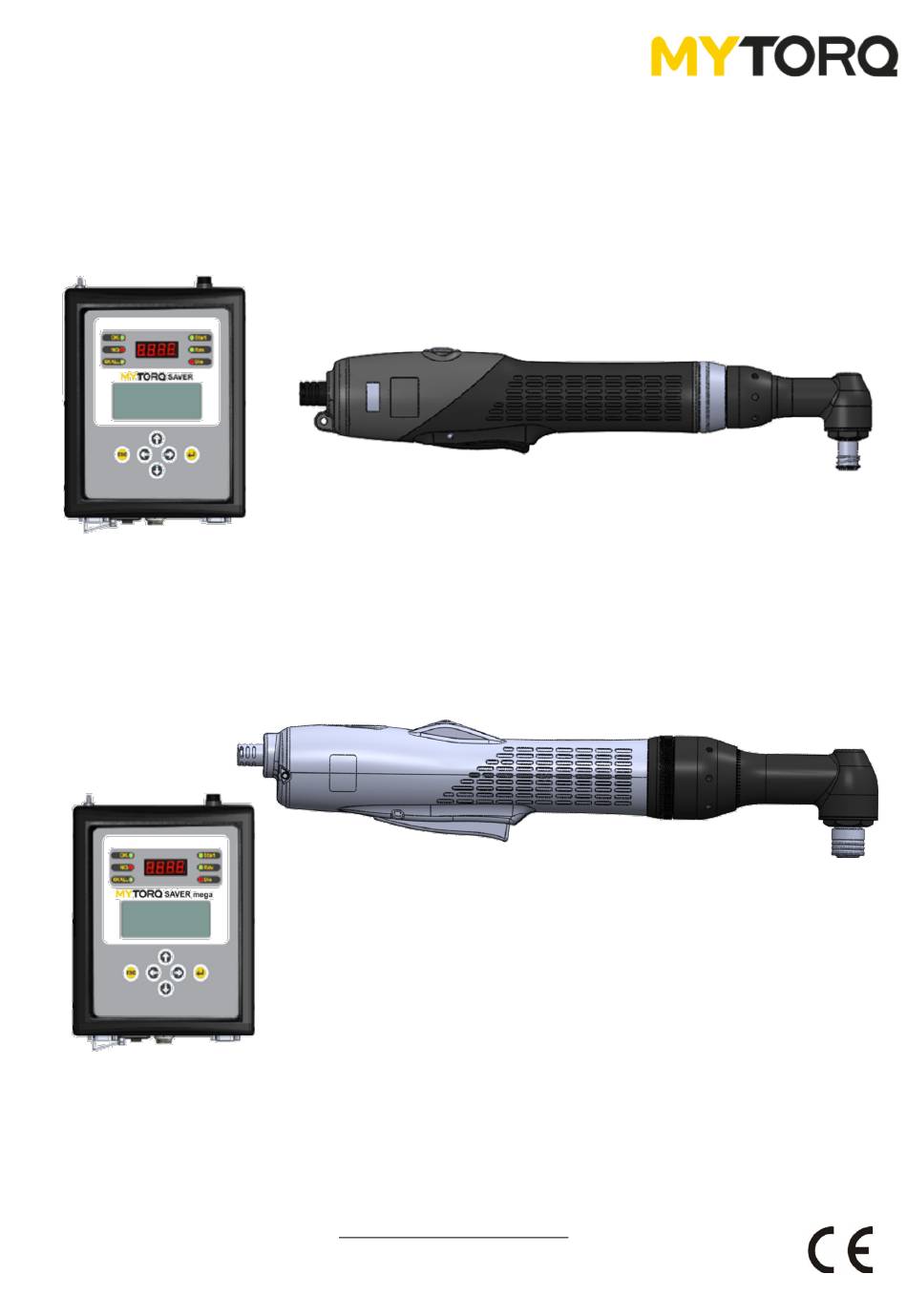

- Page 1 OPERATION AND MAINTENANCE MANUAL MY-SAVER3RA MY-SAVER5RA MY-SAVER7RA MY-SAVER12RA MY-SAVER18RA MY-SAVER25RA Automatic Non-Carbon-Brush Series SAING EI CORP. http://www.mytorqtools.com Y2F230A-4E-002...
- Page 2 NOTICE Metal Assembly sensor screwdriver are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. SAING EI CORP. is not responsible for customer modification of tools for applications on which SAING EI CORP. was not consulted. WARNING Important safety information enclosed.
- Page 3 Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Page 4 d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Do not let visitors touch the tool or extension cord. All visitors should be kept away from work area. e) Maintain power tools.
- Page 5 Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors.
- Page 6 Operations Cautions 1) Do not allow chemicals such as acetone, benzene, thinner, trichloroethylene ketone, or other similar chemicals to come in contact with the sensor screwdriver housing as damage will result. 2) Use the sensor screwdriver carefully, do not drop or be impacted, it is best to use a balancer to lift it, and set it on the auxiliary arm for operation.
- Page 7 Function / Operating Introduction Number Product Name Description Use Hanging Hole Hanging hole is available, to hang the screwdriver Signal Light Display OK light, NG light, screw removal starts and stop signal Button Switch Switch rotation direction CW/CCW Front Lock Ring Lock stationary gearbox and housing Headgear Load/unload and fixing the screwdriver bits...
- Page 8 Servicing Maintenance and Inspection: 1. The screwdriver must be operated in top condition, one day working hour must be not more than eight hours. cording to operating frequency and torque loaded, we suggest adding lubricating oils in clutch per 3-6 months, and kindly contact with distributor when product's maintenance.
- Page 9 CAUTION The use of other than genuine MYTORQ replacement parts may Result in decreased tool performance and increased maintenance and may invalidate all warranties. All repairs and maintenance of this tool and its word must be performed by an authorized service center.
- Page 10 No. 00 ．．． Bit use in dia 1.3~1.8mm screw No. 0．．． ．Bit use in dia 1.8~2.0mm screw No. 1．．． ．Bit use in dia 2.0~2.6mm screw No. 2．． ．．Bit use in dia 3.0~4.0mm screw 2. MY-SAVER3RA with BIT 2 Pcs. MY-SAVER5RA with BIT 2 Pcs.
- Page 11 Specifications MODEL MY-SAVER12RA MY-SAVER18RA MY-SAVER25RA Input voltage (DC) DC40V Power Consumption (N.m) 2.4-12 3.6-18 5-25 Torque (kgf.cm) 24.48-122.4 36.72-183.6 51-255 (Lbf.in) 21.24-106.21 31.86-159.32 44.26-221.28 Repeatable Torque Accuracy +/- 3sigma / AVG., 7.5% Unloaded Rotation Speed (r/min) 80-750 40-470 30-300 Can be set and adjusted Working Time 1s ON / 3s OFF Weight (g)
