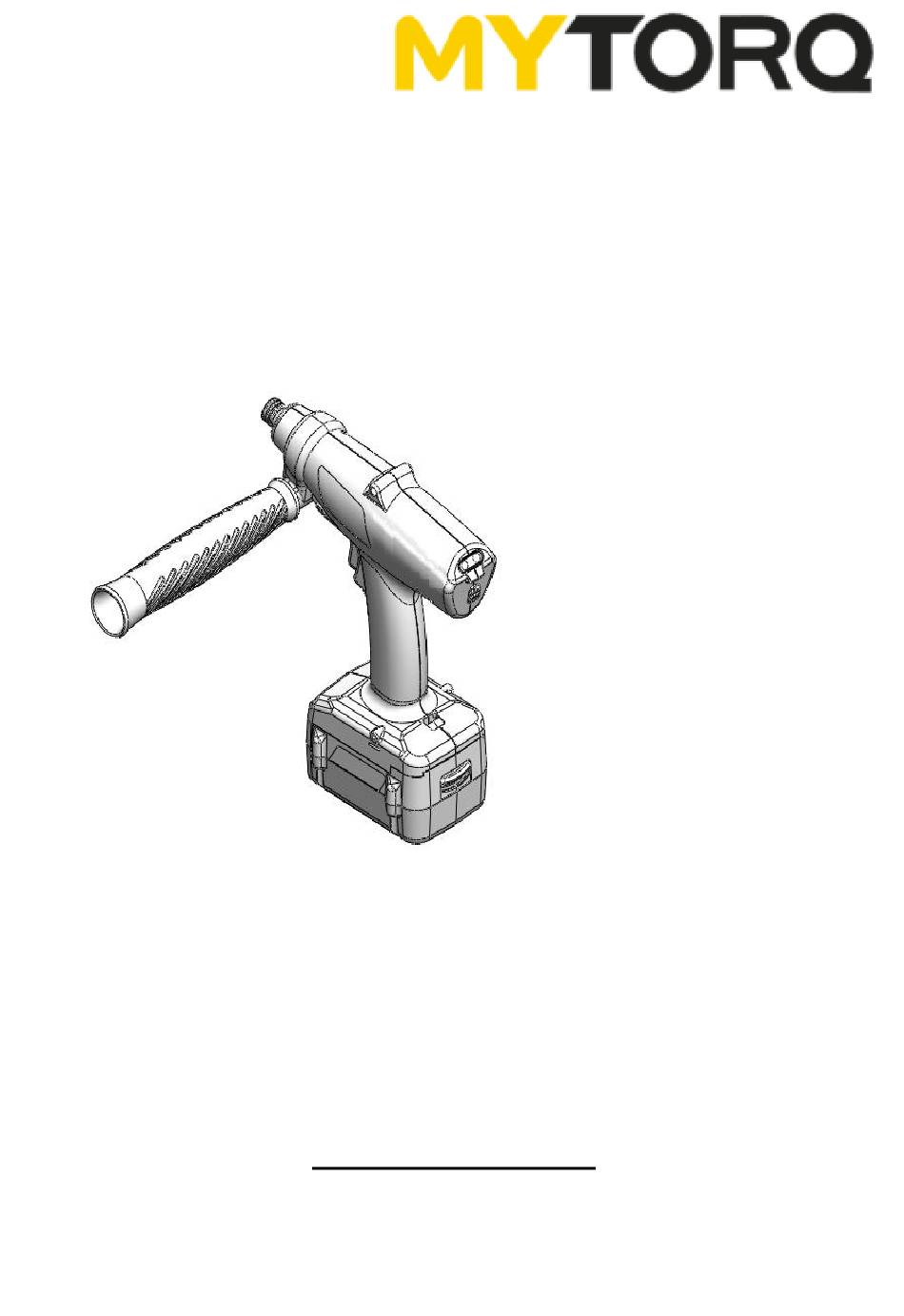

Automatic Industrial Cordless Brushless
Power Torque Screwdriver Series
OPERATION AND MAINTENANCE MANUAL
CAUTION!!
MYBT-AI SERIES IS ADVANCEMENT IN HIGH TORQUE MOTORS DESIGN.
TO BE MORE SAFTY, ASSEMBLE THE AUXILIARY HANDLE BEFORE OPERATION.
ANLIDAR INDUSTRIAL CO., LTD.
http://www.anlidar.com
MYBT-AI0822
MYBT-AI0615
MYBT-AI0512
MYBT-AI0408
Y2F102A-3E-001
Advertisement
Table of Contents
Related Manuals for MYTORQ MYBT-AI0822
Summary of Contents for MYTORQ MYBT-AI0822
- Page 1 Automatic Industrial Cordless Brushless Power Torque Screwdriver Series OPERATION AND MAINTENANCE MANUAL MYBT-AI0822 MYBT-AI0615 MYBT-AI0512 MYBT-AI0408 CAUTION!! MYBT-AI SERIES IS ADVANCEMENT IN HIGH TORQUE MOTORS DESIGN. TO BE MORE SAFTY, ASSEMBLE THE AUXILIARY HANDLE BEFORE OPERATION. ANLIDAR INDUSTRIAL CO., LTD.
-
Page 2: Icon Instructions
5. Do not expose to wet or rain conditions. Accessories Item Quantity Unit Auxiliary handle base Auxiliary handle Adjusting Wrench Manual Guarantee Card Torque rings ass’y Package S Waist hook Driver hook Screw M3*0.5P*10LT Screw M6*50 Socket Extension (MYBT-AI0822/0615/0512/0408) (MYBT-AI0822/0615/0512/0408) - Page 3 16. To prevent parts in gearbox from damage, replace the grease at least once for every year. 17. It is necessary for the operators to read and follow up all the operating instructions in this manual. MYTORQ is not responsible for any personal injury that might cause of disobeying the safety advices.
-
Page 4: Protection Function
3. Do not repair the device with other than genuine MYTORQ replacement parts may result in poor performance or danger of injury, the warranty will be considered void. - Page 5 2.1 Below illustration is showing the process of correct install & disassemble the rechargeable battery. The beep sound comes along with a flash while the screwdriver is supplied genuine battery installation. It could be operated once the battery has been identified. 2.2 Too slow to install the battery may cause error identification so the beep sound and flash would be continuing.
-
Page 6: Function / Operating Introduction
Function / Operating Introduction (11) (10) Function Name Table Description Description Trigger Switch S waist hook Forward/Reverse Lever Indication light LED Light Torque wrench Bit Sleeve (10) Speed adjustment Torque Ring (11) Wrist strap hole Driver Hook Hole... -
Page 7: Manual / Function
Manual / Function 1. Full auto shut-off screwdriver It stops automatically when the screw has been tightened up and reached the set-up torque level. The device will not cause damage of task since no continue running after screws are tightened. (1) Trigger switch The LED lights on when the trigger switch has been pressed about one-third down, and then the screwdriver starts functioning when the switch trigger has been pressed half way down;... - Page 8 (5) Torque ring The purpose of the color ring is to have the torque level visible; there are 5 different types in total, follow the diagram below for installation/removal. Dismantle Removal 1. Remove the color torque 2. Tilt the screwdriver slightly upwards 3.
- Page 9 (6) Driver Hook convenient production lines able to Hook Hanging device balancers work together with the tools to be more efficiently. (7) S Waist hook The S waist hook allows users to carry the device easily by attaching it to their work belt. (8) Functional light and the status indicator Whenever the remaining power in the rechargeable battery is fewer than 20%, the tool is still alive but with red flash lights on.
- Page 10 5) The torque wrench as shown in diagram 2: When the torque wrench rotates clockwise , the torque adjustment ring will be pushed to the sign (+) direction of the screwdriver, the higher up will be the greater torque until pushed to the position of highest point will no longer be able to rise up.
- Page 11 Lo and the presetting torque is more than 50% of torque range. Please refer to the following table. Lo Switch Shut-off MYBT-AI0408 MYBT-AI0512 MYBT-AI0615 MYBT-AI0822 4~6N m 5~9N m 6~9.5N m 8~15N m 6N m↑...
-
Page 12: Other Cautions
3. MYTORQ is not responsible for any poor performance or damage caused by customers own modification of the tool. 4. It is necessary for the management to have individual operators read and follow up all instructions in this manual. -
Page 13: Specifications
Specifications MODEL(MYBT)) MYBT-AI0822 MYBT-AI0615 MYBT-AI0512 MYBT-AI0408 INPUT VOLTAGE(DC) DC 18V hard joints 8~22 6~15 5~12 TORQUE (N.m) soft joints 8-17.6↓ 6-12↓ 5-9.6↓ 4-6.4↓ 80%↓ Torque accuracy (%) ±3% Torque adjustment Internal adjustment Duty cycle 1.0s ON 3.0s OFF 1200...
