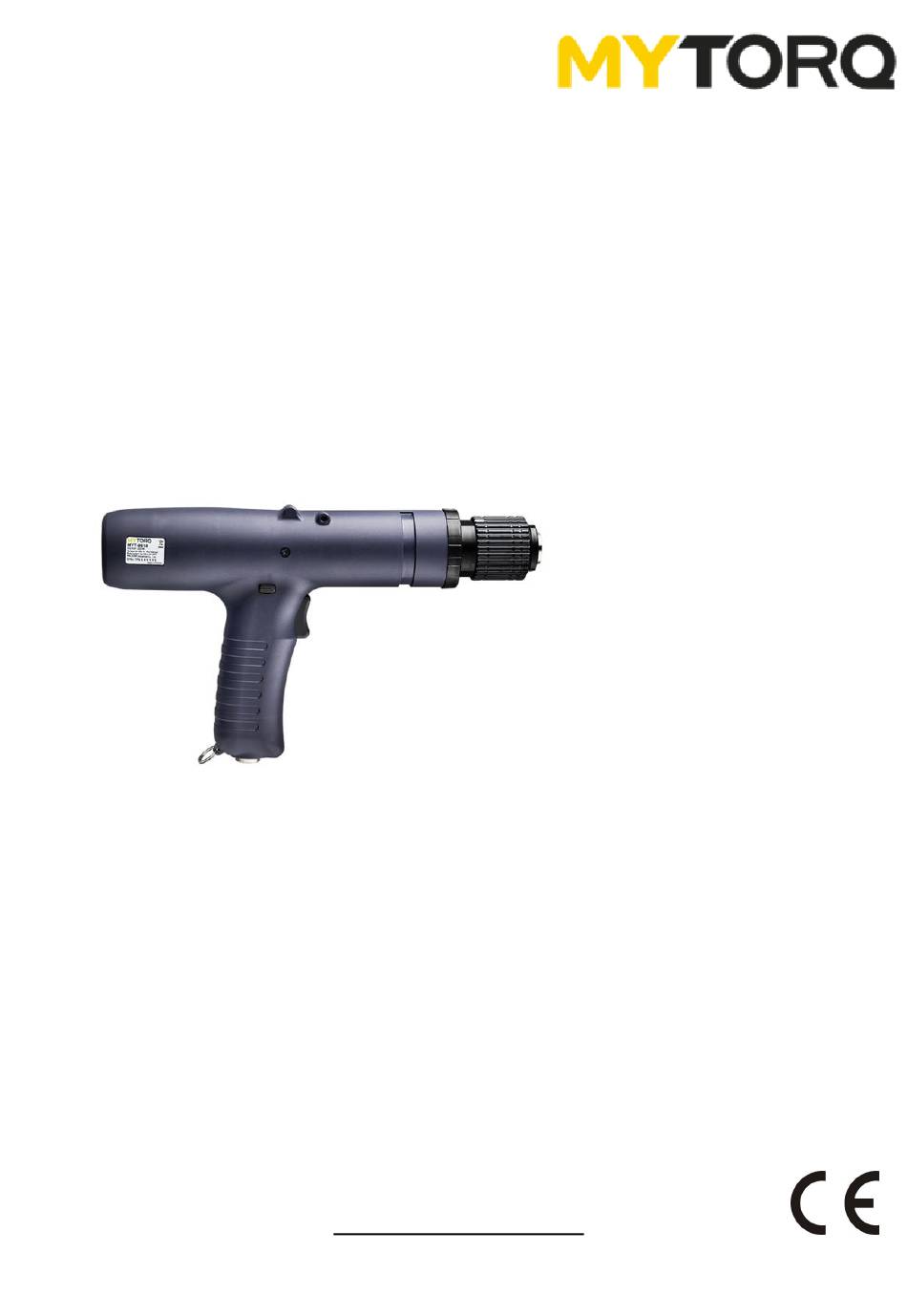

- Page 1 OPERATION AND MAINTENANCE MANUAL MYT-0206L MYT-0309L MYT-0412L MYT-0618L DC-TYPE Automatic Non-Carbon-Brush Series SAING EI CORP. https://www.mytorqtools.com Y2F120A-5E-001...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. SAING EI is not responsible for customer modification of tools for applications on which SAING EI was not consulted. WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation this tool and save these instructions.
-
Page 3: Important Safety Rules
Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Do not let visitors touch the tool or extension cord. All visitors should be kept away from work area. e) Maintain power tools.
- Page 5 7) Clamp fixed position for 3cm Nylon Fixed-Wire The clamp fixed position for 3cm Nylon Fixed-Wire is at 235mm start count from the top of the screwdriver flat surface (for direct cable), as shown in Figure 1. The clamp fixed position for 3cm Nylon Fixed-Wire is at 285mm start count from the top of the screwdriver flat surface( for 15 cm tail cable), as shown in Figure 2.
-
Page 6: Grounding Instructions
Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors. - Page 7 Operations Cautions 1) Before changing bits from MYT Series screwdriver, make sure the Forward / Reverse switch stays at the middle position. The screwdriver must be unplugged. 2) To avoid damaging the housing of screwdriver, do not allow chemicals get in touch with housing of screwdriver. Ex.: Acetone, benzene, thinner, trichloroethylene ketone, and other similar chemicals.
-
Page 8: Description Of Operation
CAUTION ● Do not drop or abuse the tool. ● Whenever a tool is not being used, position the Power Switch to the “OFF” position and unplug the power cord. Description of Operation Attaching / detaching bit and bit type Push up the holder clamp by fingertip, and it will be unlocked. -
Page 9: Do Not Attempt To Repair This Electric Screwdriver
CAUTION The use of other than genuine SAING EI replacement parts may Result in decreased tool performance and increased maintenance and may invalidate all warranties. All repairs and maintenance of this tool and its word must be performed by an authorized service center. SAING EI is not responsible for customer modification of tools for applications on which SAING EI was not consulted. -
Page 10: Specifications
MY-SIO Bit Type HEX 6.35mm(NO.3) 1N.m=10.2Kgf.cm 1N.m=8.85Lbf.in ※ MYT:T-Type Power Torque(Non-Carbon-Brush)electric screwdrivers. (MYT-0206L、MYT-0309L、MYT-04120L、MYT 0618L)，MYT W Type Not attached BIT L: Trigger start U: Top-Cord W: Round-socket Drive (B:Bit in SS 6.35mm Hexagon Type) Accessories 1、ＢＩＴ Type： No. 00 ．．． Bit use in dia 1.3~1.8mm screw No. -
Page 11: Torque Adjustment Operation
Torque Adjustment Operation To adjust the torque on these screwdrivers. Proceed as follows : 1. Determine the torque output of the tool by checking a tightened Fastener with a torque wrench. 2. Increase or decrease the torque by rotating the Spring Adjusting Ring. Rotating the Ring clockwise to a higher number on the torque Scale increase torque output while rotating the Ring counterclockwise to a lower number decreases the torque output.
