Atmos S 351 NATAL Operating Instructions Manual

Hide thumbs Also See for S 351 NATAL:

Advertisement

Quick Links

Download this manual
Operating Instructions
ATMOS S 351 NATAL
English
0124
GA1GB.210302.0
2024-11 Index 04

Advertisement

loading
Need help?

Need help?

Do you have a question about the S 351 NATAL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atmos S 351 NATAL

Summary of Contents for Atmos S 351 NATAL

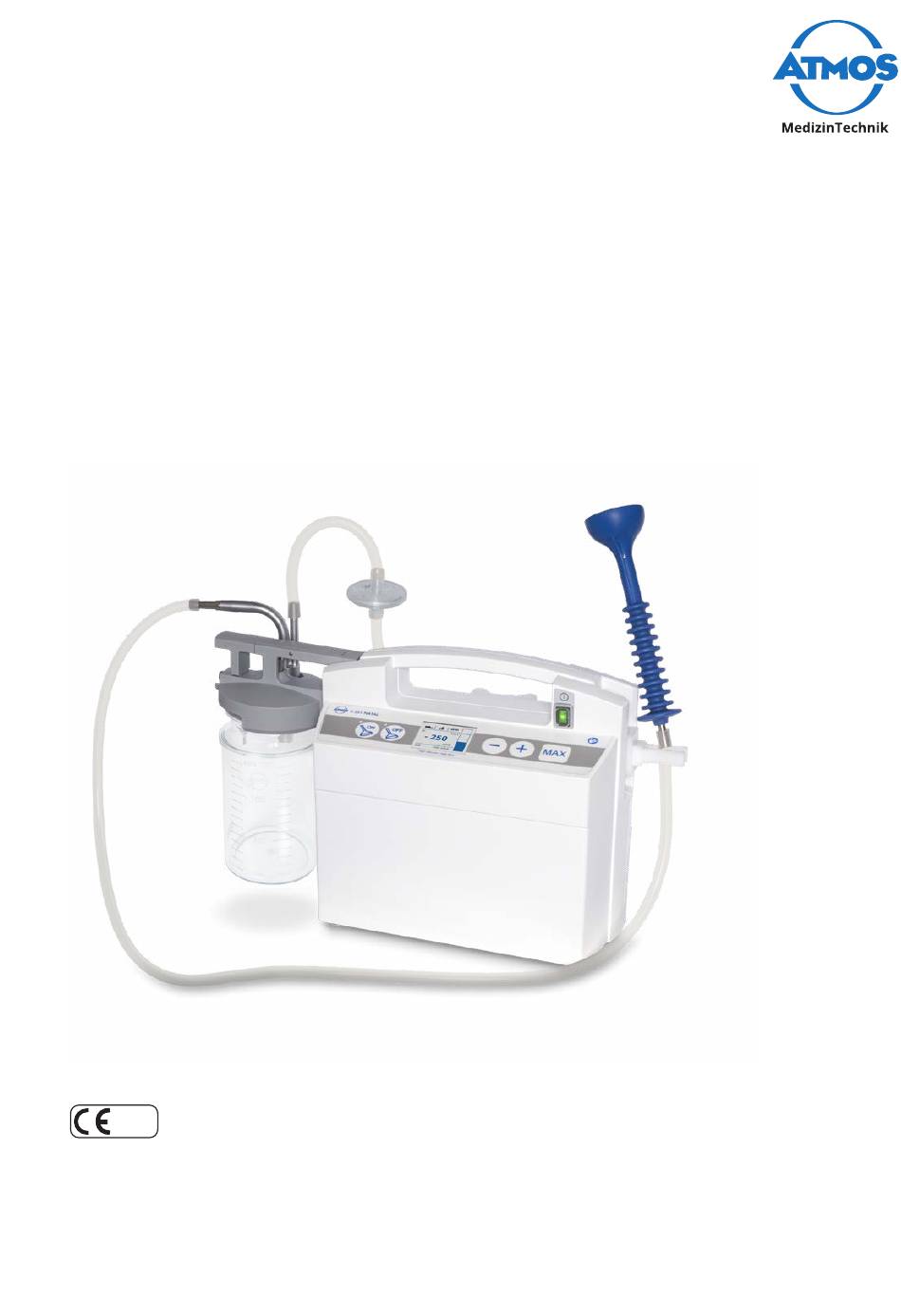

  • Page 1 Operating Instructions ATMOS S 351 NATAL English 0124 GA1GB.210302.0 2024-11 Index 04...
  • Page 2 Suction ........................25 4.9 Electronic fill-level monitoring system ..............26 4.10 Changing the secretion canister ................26 4.11 Warning messages ....................27 4.12 Trolley with standard rail ATMOS S 351 (REF 320.0070.0) ...................... 28 4.13 Foot controller ......................28 4.14 Checking the bacterial and viral filter ..............28...
  • Page 3 Reprocessing ....................29 Safety instructions for reprocessing ..............29 5.1.1 General safety instructions ................29 5.1.2 Danger for users, patients and third parties ..........29 5.1.3 Avoiding damage to the device ................ 29 Preparing and completing reprocessing .............. 30 Reprocessing surfaces .................... 30 5.3.1 Overview ......................
  • Page 4 ATMOS S 351 NATAL, 230 V 444.0401.0 ATMOS S 351 NATAL, 100 V 444.0401.1 ATMOS S 351 NATAL, 115 V 444.0401.2 ATMOS S 351 NATAL, 127 V 444.0401.3 ATMOS S 351 NATAL, 230 V 444.0491.0 ATMOS S 351 NATAL, 100 V 444.0491.1 ATMOS S 351 NATAL, 115 V 444.0491.2 ATMOS S 351 NATAL, 127 V 444.0491.3 ATMOS S 351 NATAL – basic set, 230 V 444.0490.0 ATMOS S 351 NATAL – basic set, 100 V 444.0490.1 ATMOS S 351 NATAL – basic set, 115 V 444.0490.2 Introduction...
  • Page 5 ATMOS S 351 NATAL – basic set, 127 V 444.0490.3 ATMOS S 351 NATAL – basic set, 230 V (Medi-Vac®) 444.0492.0 ATMOS S 351 NATAL – basic set, 230 V (Serres®) 444.0493.0 ATMOS S 351 NATAL mobile, 230 V 444.0481.0 ATMOS S 351 NATAL mobile, 100 V 444.0481.1 ATMOS S 351 NATAL mobile, 115 V 444.0481.2 ATMOS S 351 NATAL mobile, 127 V 444.0481.3 ATMOS S 351 NATAL mobile with foot control, 230 V 444.0482.0...
  • Page 6 Warning; pay special attention This product complies with the relevant requirements of EU Directives. 0124 This product complies with the relevant requirements of EU Directives. Eurasian conformity Manufacturer Date of manufacture Serial number Reference number European Article Number Type B applied part No protection from water IPX0 Professional disposal...
  • Page 7 Store in a dry place Protect from sunlight 1.3 Intended use Product name: ATMOS S 351 NATAL Main function: An electric suction pump controlled by a microprocessor generates negative pressure. Due to the controlled negative pressure, parts of the body, in particular the head of a baby, are fixed.
  • Page 8 Application organ: Natural orifices as well as openings resulting from surgical procedures (entire body) Application time: Short-term use on the patient (< 60 minutes) Area of application: The area of application is the clinical setting (among others: OT and delivery room). The device may only be used by staff who have been medically trained and instructed. Criteria for patient Patients who benefit from vacuum extraction, a surgical selection: procedure or bronchial suction...
  • Page 9 Secretion canister 1.5 l (PC) 444.0100.0 Double socket nipple with overflow electrode 444.0012.0 Secretion canister lid incl. standard rail holder 444.0015.0 Trolley with standard rail ATMOS S 351 320.0070.0 Foot control for ATMOS S 351 444.0478.0 Standard rail support Medi-Vac® 444.0451.0 Medi-Vac®-external canister 1 l 312.0473.0...
  • Page 10 If damage occurs during transport: 1. Document and report damages in transit. 2. Send the device to ATMOS; see chapter ‘6.3 Sending in the device’ on page 38. Environmental conditions for transport and storage; see chapter ‘10 Technical data’ on page 44.
  • Page 11 Report all serious incidents that have occurred in connection with this product to the manufacturer and your national competent authority. The safety of the ATMOS S 351 NATAL complies with the accepted standards of technology and the guidelines of the German Medical Devices Act.
  • Page 12 • Perform a function check after each use. • ATMOS recommends always having another suction device ready at hand. That way you can also perform suctioning if a device should fail. • Please observe the notes on the electromagnetic compatibility (EMC) of the device.
  • Page 13 • Never operate the product in potentially explosive areas or in areas that are oxygenated. • Only use original accessories and original spare parts from ATMOS. This applies to the power cable in particular. WARNING Tripping hazard due to cables.
  • Page 14 The device may become damaged. • Ensure that no liquid enters the device. Once liquid has entered the device, it may no longer be used. In this case, clean the device and send it to ATMOS for repair. • Always place the device on firm, level ground. The device must always be in a vertical position when you use it.
  • Page 15 3 Setting up and starting up 3.1 Device overview Front view On/off switch Display Support for canister system Hydrophobic bacterial and viral filter Connection for suction hose Secretion canister lid Connection for extraction cup Rear view Pump connection Connection for foot controller Service interface for data read-out Potential equalisation Mains supply Setting up and starting up...
  • Page 16 Release button Fill-level sensor with anti-foaming device Lid rim Aperture for double hose connector Contacts for fill-level monitoring Disposable canister system ATMOS Disposable System (1 l) Angle (connection for the disposable suction hose) ATMOS suction bag ATMOS external canister L-connector (connection for vacuum hose) Serres®...
  • Page 17 3. If the device is damaged: document and report the damages in transit. Send the device to ATMOS (chapter ‘6.3 Sending in the device’ on page 38). 4. If the device is not damaged: place the device on a safe, level surface.
  • Page 18 3.4 Connecting the secretion canister system and hoses 1. The anti-foaming device must be placed on the fill-level sensor for strongly foaming secretion. 2. Slide the secretion canister lid with the release button pointing forward onto the secretion canister.  Make sure that the lid rim is under the bead of the secretion canister.
  • Page 19 4 Operation Environmental conditions for operation; see chapter ‘10 Technical data’ on page 44 4.1 Control panel S 351 NATAL high vacuum / high ow Button for switching on the automatic vacuum build-up (ON) Button for switching off the automatic vacuum build-up (OFF) LEDs for indicating the active function...
  • Page 20 4.4 Explanation of the display The display shows the current settings of your ATMOS device. Connected with trolley Foot controller SEMI Semi-automatic vacuum extraction mode AUTO Automatic vacuum extraction mode Variant 1: Variant 2: Variant 3: In addition, the colours shown indicate the following: •...
  • Page 21 4.6 User menu Display Operation Options 1. Press the on/off switch and • Language immediately afterwards the ON • Vacuum unit button (1). • Vacuum » The user menu appears. extraction 2. Press the − button (5) to scroll down • Brightness in the user menu or + button (6) to •...
  • Page 22 Display Operation Options 4.6.3.1 Final vacuum 1. Press the + (6) or − (5) button to set • min. −70 kPa the desired value. • max. −90 kPa 2. Confirm the value by pressing the • min. −700 mbar MAX button (7). • max. −900 mbar » The final vacuum is set. You are • min. −525 automatically redirected to the mmHg vacuum extraction menu. • max. −675  To return directly to the vacuum mmHg extraction menu, press the OFF button (2).
  • Page 23 Display Operation Options 4.6.4 Brightness 1. Press the + (6) or − (5) button to go • Levels 1–5 to the desired level of brightness. 2. Select the level of brightness by pressing the MAX button (7). » The level of brightness is set. You are automatically redirected to the main menu.
  • Page 24 • For vacuum extraction, we recommend that you use a small secretion canister (1.5 l) so that the required vacuum can be generated with the least possible delay. • During automatic vacuum build-up, the ATMOS S 351 NATAL generates vacuum evenly and the final vacuum is reached in the preset time.
  • Page 25 • The pump output is increased, if possible, to counteract the leak. • The warning signal stops as soon as vacuum build-up can be continued or after the user cancels the action.  The ATMOS S 351 NATAL cannot predict that the extraction cup will tear off. There is no warning for this. 4.7.3 Vacuum drop after final vacuum has been reached •...
  • Page 26 4.9 Electronic fill-level monitoring system The ATMOS S 351 NATAL has an electronic fill-level monitoring system that switches off the pump when the maximum fill level is reached. At the same time, the device beeps and then Secretion canister full appears in the display. The maximum fill level is reached when the liquid comes into contact with the sensor in the secretion canister lid. If a large amount of foam is generated, you should fit the enclosed anti-foaming device over the sensor so that the unit does not switch off prematurely. As soon as the sensor is no...
  • Page 27 Fit the anti-foaming device over the sensor. Please observe: The warning message ‘Secretion canister full’ is deactivated when disposable canister systems are in use. The device temperature is Please provide sufficient too high. cooling. Service is required. Contact ATMOS Service. Operation...
  • Page 28 1. Plug the foot controller into the connection. 2. Connect the suction catheter, suction attachment or suction instrument to the suction hose. 3. Switch on the ATMOS S 351 NATAL. Make sure that the pilot lamp in the on/off switch lights up. 4. Select the final vacuum required using one of the buttons (5), (6) and (7). Keeping the − (5) and + (6) buttons pressed changes the value faster.
  • Page 29 5 Reprocessing 5.1 Safety instructions for reprocessing 5.1.1 General safety instructions We recommend that you always document all maintenance work and part replacements in writing. It is the responsibility of the user to ensure that the required results of cleaning and disinfection are achieved.
  • Page 30 Unsuitable cleaning agents and disinfectants. The product can become damaged. • Do not use any process chemicals containing the following ingredients on plastic parts: • Chloramides or phenol derivatives • Do not use abrasives. 5.2 Preparing and completing reprocessing Prior to reprocessing 1.
  • Page 31 Cleaning agent (manufacturer) Active ingredients in 100 g Type Dismozon® plus 95.8 g magnesium monoperoxyphthalate hexahydrate Granulate (Bode Chemie) Kohrsolin® FF 5 g glutaral, 3 g benzyl-C12-C18-alkyldimethylammonium Liquid (Bode Chemie) chloride, 3 g didecyldimethylammonium chloride concentrate Kohrsolin® extra 14.1 g (ethylenedioxy)dimethanol, 5 g glutaral, Liquid (Bode Chemie) 8 g didecyldimethylammonium chloride...
  • Page 32 5.4 Reprocessing the accessories 5.4.1 Overview Accessory Secretion canister system Secretion canister Secretion canister lid Double hose connector Bacterial and viral filter Hoses Suction hose Vacuum hose Connecting hose Immediate filter change in the event of discolouration, contamination, oversuction. The bacterial filter is no longer in optimum condition if the vacuum displayed is above −0.3 bar when the vacuum regulator is in the ‘MAX’ position and the suction hose is open. 5.4.2 Selecting process chemicals Follow the manufacturer’s instructions for the process chemical. Cleaning agent (manufacturer) Active ingredients in 100 g...
  • Page 33 5.4.3 Secretion canister system Characteristics The accessories have the following hard-to-reach areas: • Double hose connector (lumens) • Secretion canister lid complete (hollow spaces) Take particular care when reprocessing hard-to-reach areas. Pre-treating at the site 1. Empty the secretion canister. of use 2.
  • Page 34 Checking and 1. Check whether reprocessing was successful with a maintaining suitable light magnifier. • Free of particles and organic material 2. Dispose of damaged accessories or have them repaired. Assembly Not necessary. Function check Not necessary. Packaging 1. Label the accessories. 2.
  • Page 35 Mechanical cleaning 1. Empty the secretion canister. and disinfection 2. Clean and disinfect using a suitable programme: Pre-rinse: 1 min • Pre-rinse with cold water Clean: 5 min • Cleaning with cleaning agent 55 °C / 131 °F • Neutralise with cold water Neutralise: 2 min •...
  • Page 36 ATMOS recommends: work should be carried out by an authorised ATMOS service partner. This ensures that repairs and tests are carried out professionally, original spare parts are used and warranty claims remain unaffected.
  • Page 37 - After the final vacuum has been reached, the pump switches off and only adjusts when necessary - The display changes to green • AUTO extraction mode: - Close the suction hose with your finger - Extraction starts automatically when −20 kPa has been reached - The time displayed for vacuum build-up corresponds to requirements - The value displayed for the final vacuum corresponds to requirements - Vacuum build-up can be accelerated or delayed using the ‘+’ and ‘−’ buttons - If available: vacuum build-up can be accelerated or delayed using the foot controller - The process is shown correctly on the display (blue colour) - An advisory tone sounds when the final value has been reached; the LED of the...
  • Page 38 5. The product must be well padded and packed in suitable packaging. 6. Place the form QD 434 ‘Delivery complaint / return shipment’ and the respective decontamination certificate in an envelope. 7. Affix the envelope to the outside of the package. 8. Send the product to ATMOS or your dealer. 38 Maintenance and service...
  • Page 39 Check whether the secretion canister the secretion canister and its secretion canister lid have and the device. locked into the holder correctly and whether the ATMOS S 351 NATAL has been screwed correctly to the trolley. Warning message Hydrophobic DDS Replace the hydrophobic bacterial...
  • Page 40 (ATMOS blocked. S 351 NATAL has Ambient temperature is Use the ATMOS S 351 NATAL only in overheated). too high. the specified temperature range. Try using auto standby mode (less heat build-up). Fan is defective.
  • Page 41 8 Accessories Accessories Foot control for ATMOS S 351 444.0478.0 Trolley with standard rail ATMOS S 351 320.0070.0 Secretion canister 1.5 l (PC) 444.0100.0 Secretion canister lid 444.0650.0 Secretion canister lid incl. standard rail holder 444.0015.0 Socket nipple set 444.0640.0 Double socket nipple with overflow electrode 444.0012.0...
  • Page 42 Extraction hose, green, silicone, Ø 6 mm (minimum 5 m) 006.0010.0 Extraction hose, green, Ø 6 mm, L = 1.5 m 404.0146.0 ATMOS-Suction Bag 1 l with Gelling Agent, 100 pcs. 401.0101.0 ATMOS-Suction Bag 1 l, 100 pcs. 401.0102.0 Serres®-suction bag 1 l without gelling agent, 36 pcs.
  • Page 43 The product does not contain any hazardous materials. 1. Clean and disinfect the product. 2. In Germany: Send the product back to ATMOS or your specialist dealer. They will dispose of the product properly. 3. In other countries: Dispose of the product properly and in accordance with country- specific laws and regulations.
  • Page 44 Secretion canister 1.5 l / 2.5 l Polycarbonate canisters Supports for using disposable bags: • ATMOS (1 l / 2 l / 3 l) • Receptal® (1 l / 1.5 l / 2 l / 3 l) • Serres® (1 l / 2 l / 3 l) •...
  • Page 45 Heat output approx. 135 J/s Noise level < 54 dB (A) @ 1 m (ISO 7779) Environmental conditions: Transport/storage Temperature range −10...+60 °C Air humidity without condensa- 30...95 % tion Air pressure 700...1060 hPa Environmental conditions: Operation Temperature range +5...+40 °C Air humidity without condensa- 30...95 % tion Air pressure...
  • Page 46 WARNING Portable RF communications equipment (e.g., radios, antenna cables) should be used no closer than 30 cm* to any part of the ATMOS S 351 NATAL, including cables, specified by the manufacturer. Failure to heed this warning may result in a reduction in the device’s performance.
  • Page 48 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch/Germany Phone: +49 7653 689-0 info@atmosmed.com www.atmosmed.com...
