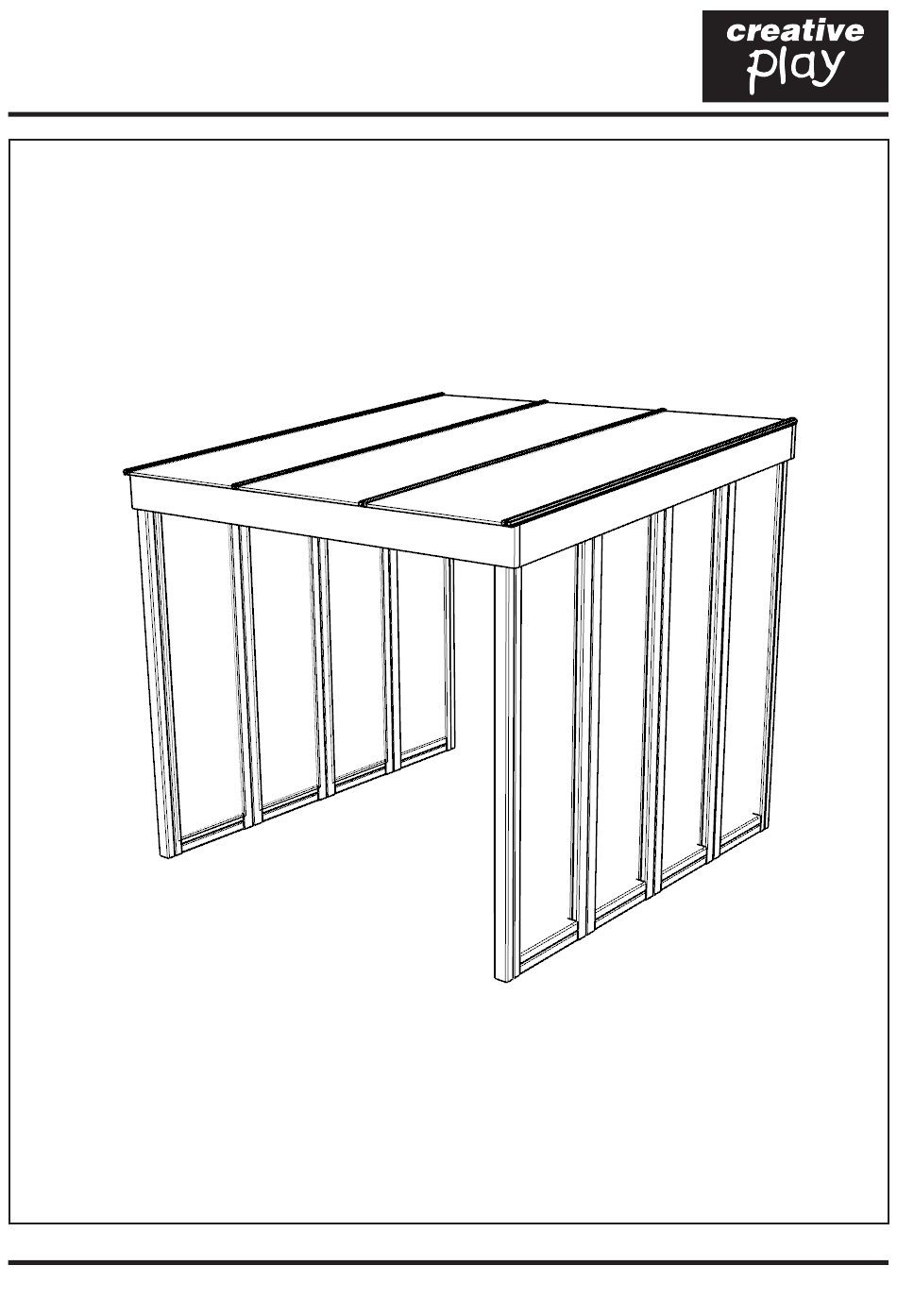

- Page 1 CA115 - CAMBRIDGE SENSORY TUNNEL Installation Instructions REF: CA115 pg 1 of 14 08.11.2024...
- Page 2 PARTS REQUIRED POLYCARB ROOF SHEET GLAZING BAR -3000MM POLYCARB SIDE PANELS WHITE F-SECTION - 3000MM WHITE SHEET CLOSURE - 2100MM ADDITIONAL TAPE - ALUMINIUM TAPE & ANTI DUST BREATGER TAPE FOR 16MM POLYCARB SHEETS. (SHEETS WHICH ARE CUT TO SIZE SHOULD HAVE TAPE ATTATCHED AS STANDARD) CLEAR SILICONE M8X180...
- Page 3 TIMBERS REQUIRED CODE TYPE SIZE STG1a 120x90 3348 STG1b 120x90 3600 STG2 218x43 3000 STG3 218x43 2895 STG4 173x43 2890 STG5a 218x43 STG5b 218x43 STG6 43x43 2730 STG7 90x90 STG8 90x90 3512 STG9 90x90 3512 STG10 90x90 3449 STG11 120x90 3449 STG12 90x90...
- Page 4 FOUNDATION DETAILS STG1b STG1b STG8 STG8 STG9 STG9 STG10 STG10 STG11 STG11 STG12 STG12 STG13 STG13 STG1a STG1a CONCRETE POST NOTE: MUST HAVE 830 IN THE GROUND REF: CA115 pg 4 of 14 08.11.2024...
- Page 5 INSTALLATION INSTRUCTIONS SLOT POLYCARB SHEETS INTO THE UPRIGHT TIMBERS USING M8X180 CTS SCREWS [X16] PP SHEET PP SHEET PP SHEET PP SHEET STG14 STG14 STG14 STG14 STG1a STG1b STG12 STG10 STG8 STG11 STG9 STG13 SCREW ON SUPPORT TIMBER 830MM FROM THE BASE AS SHOWN ABOVE MAKING SURE IT SLOTS INTO POLYCARB STG14...
- Page 6 INSTALLATION INSTRUCTIONS SCREW STG7 TIMBERS TO TOP OF FRAME USING M8X160 CTS SCREWS [X12] STG7 STG7 STG7 STG7 SCREW UPRIGHT TIMBERS TOGETHER AS SHOWN USING M8X120 CTS SCREWS [X24] REF: CA115 pg 6 of 14 08.11.2024...
- Page 7 INSTALLATION INSTRUCTIONS REPEAT STEPS 1-3 ABOVE FOR OPPOSITE SIDE PANNEL HT TIMBERS USING M8X160 CTS SCREWS [X12] USING M8X120 CTS SCREWS [X24] USING M8X180 CTS SCREWS [X16] CAB1b VERHANG the END UPRIGHTS by 43mm) ATTACH STG2 FLUSH TO UPRIGHT TIMBERS. ENSURE TIMBER HAS 43MM OVERHANG ON EITHER USING M8X80 [X8} WOOD SCREWS STG2...
- Page 8 Installation Instructions INSTALLATION INSTRUCTIONS Attach the CAB3 SIDE timbers to CAB1a / b TIMBERS ATTACH STG2 TO UPRIGHT TIMBERS. Using 8x M8X80 WOOD SCREWS USING M8X80 [X8} WOOD SCREWS CAB3 STG3 STG3 Attach the CAB3 SIDE timbers to CAB2 TIMBERS Using 8x‘JOIST HANGERS’...
- Page 9 INSTALLATION INSTRUCTIONS SLOT STG4 INTO PLACE. FIX IN PLACE USING M8X80 [X12} WOOD SCREWS STG4 STG4 NOTE: MEASURE FROM TIMBER EDGE STG4 STG4 REF: CA115 pg 9 of 14 08.11.2024...
- Page 10 INSTALLATION INSTRUCTIONS ATTACH STG5 TO STG4 TIMBERS AS BELOW. FIX IN PLACE USING M8X80 [X24} WOOD SCREWS Installation Instructions Attach the CAB4 timbers to CAB3 TIMBERS Using 100 x FM80 ‘Brass Screws’ CAB4 CAB4 CAB4 CAB4 CAB4 STG5 STG5 STG5 STG5 STG5 STG5...
- Page 11 Installation Instructions INSTALLATION INSTRUCTIONS Attach GLAZING BARS to all CAB3 TIMBERS Using 100 approx x WOOD SCREWS for GLAZING BARS ATTACH GLAZING BARS TO STG4 TIMBERS x4. FIX IN PLACE USING M8X80 [X40} WOOD SCREWS THE GLAZING BARS will overhang the front of the shelter to allow water drainage 6 x GLAZING BAR - 3000mm (WHITE ‘SNAPTYPE’...
- Page 12 INSTALLATION INSTRUCTIONS ATTACH 16MM POLYCARBONATE SHEETS. NOTE: ENSURE THE PRINTED FLOW- ER PATTERN WRAP SIDE IS UNDER THE ROOF, NOT ON THE TOP OF THE ROOF Fig. 1 All ‘INNER’ glazing bars will have a polycarbonate sheet EACH SIDE In the vacant space of the RIGHT Glazing Fig.
- Page 13 INSTALLATION INSTRUCTIONS ATTACH WHITE FIXING BUTTONS THROUGH POLYCARB INTO STG5 TIMBERS. USING 4 FIXINGS PER TIMBER [X36] STG5 REF: CA115 pg 13 of 14 08.11.2024...
- Page 14 ADDITIONAL DIMENSIONS REF: CA115 pg 14 of 14 08.11.2024...
