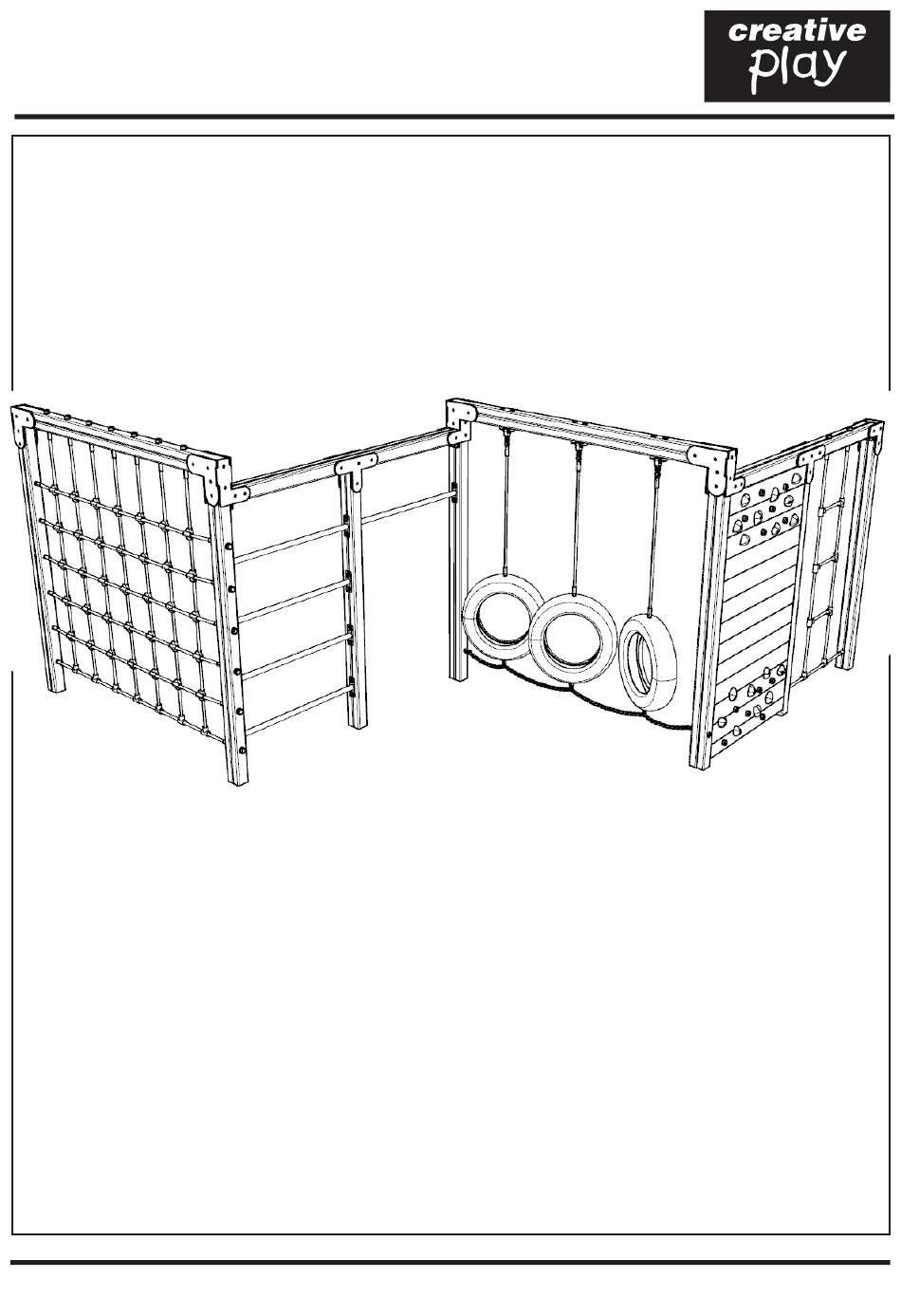

- Page 1 CF109 - ARUN CLIMBING FRAME Installation Instructions REF: CF109 ARUN CLIMBING FRAME pg 1 of 18 03.03.22...
-
Page 2: Parts Required
PARTS REQUIRED CF109 CF109 CF109 CF109 CF109 CF109 CF109 UPRIGHT TIMBERS CF109 CF109 CF109 CF109 *PLEASE NOTE CF106Hd INCLUDES THE SWING HANGERS ALL H TIMBERS ARE PRE-ASSEMBLED WITH PLAYTEC L’s / T’s (AS SHOWN ABOVE) HORIZONTAL TIMBERS REF: CF109 ARUN CLIMBING FRAME pg 2 of 18 03.03.22... - Page 3 PARTS REQUIRED TIMBER CLIMBING WALL CARGO NET SINGLE LADDER TYRE 420MM TYRE CHAIN (EYEBOLT) 690MM TYRE CHAIN STANDARD BAR (1065MM) PLAYTEC - BACK PLAYTEC L - RIGHT REF: CF109 ARUN CLIMBING FRAME pg 3 of 18 03.03.22...
- Page 4 PARTS REQUIRED x1 (SET) x4 (PAIRS) PLAYTEC - SHORT L (LEFT) PLAYTEC ‘SPECIAL L’ SET PLAYTEC - UNDER BRACKETS 102001-0 - M8 97.M8X80CSK 97.M8X180CSK 656.M12 102003-01 - M12 REF: CF109 ARUN CLIMBING FRAME pg 4 of 18 03.03.22...
- Page 5 PARTS REQUIRED CONSISTS OF SHACKLE / BOLT / NYLOC / CAP M12 SOCKET NUT (50MM) 349.742.D-SHACKLE ‘SET’ (inc 2 spares) REF: CF109 ARUN CLIMBING FRAME pg 5 of 18 03.03.22...
-
Page 6: Foundation Details
FOUNDATION DETAILS REF: CF109 ARUN CLIMBING FRAME pg 6 of 18 03.03.22... -
Page 7: Surfacing Details
SURFACING DETAILS = MINIMUM SPACE = OVERALL AREA REF: CF109 ARUN CLIMBING FRAME pg 7 of 18 03.03.22... -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS POSITION THE UPRIGHT TIMBERS FOLLOWING FOUNDATION DETAILS CF109 CF109 CF109 CF109 CF109 CF109 ATTACH TIMBER Ha USING 8X80 WOOD SCREWS REF: CF109 ARUN CLIMBING FRAME pg 8 of 18 03.03.22... - Page 9 INSTALLATION INSTRUCTIONS ENSURE BRACKETS ARE POSITONED AS SHOWN BELOW TAKE CARE THAT SCREWS DO NOT ‘CROSS’ NOTES: Ha IS PRE-ASSEMBLED WITH VARIOUS PLAYTEC PARTS ATTACH PLAYTEC - BACK, SHORT L (LEFT) & L (RIGHT) USING 8X80 WOOD SCREWS, ENSURE COUNTERSINKS ARE ON THE OUTSIDE REF: CF109 ARUN CLIMBING FRAME pg 9 of 18 03.03.22...
- Page 10 INSTALLATION INSTRUCTIONS ATTACH TIMBER Hb USING 8X80 WOOD SCREWS ATTACH TIMBER Hc USING 8X80 WOOD SCREWS REF: CF109 ARUN CLIMBING FRAME pg 10 of 18 03.03.22...
- Page 11 INSTALLATION INSTRUCTIONS ATTACH PLAYTEC - L (RIGHT), SHORT L (LEFT) USING 8X80 WOOD SCREWS ATTACH Hd TIMBER USING 8X80 WOOD SCREWS REF: CF109 ARUN CLIMBING FRAME pg 11 of 18 03.03.22...
- Page 12 INSTALLATION INSTRUCTIONS ATTACH PLAYTEC - L (RIGHT), SHORT L (LEFT) USING 8X80 WOOD SCREWS ATTACH PLAYTEC ‘SPECIAL L’ SET USING 8X80 WOOD SCREWS REF: CF109 ARUN CLIMBING FRAME pg 12 of 18 03.03.22...
- Page 13 INSTALLATION INSTRUCTIONS MAIN ASSEMBLY COMPLETE ENSURE ALL FIXINGS HAVE BEEN INSTALLED - ALL COUNTERSUNK PLAYTEC PIECES SCREWED ATTACH PLAYTEC - UNDER BRACKETS USING 8X80 WOOD SCREWS, ASSEMBLE UNDERBRACKETS AS SHOWN TO RIGHT NOTES: ADDITIONAL UNDER BRACKETS POSITIONED Hb & Hd REF: CF109 ARUN CLIMBING FRAME pg 13 of 18 03.03.22...
- Page 14 INSTALLATION INSTRUCTIONS ATTACH STANDARD BARS USING 8X80 WOOD SCREWS/ 102003-01 PLEASE ENSURE SPACING BETWEEN BARS IS AS SHOWN BELOW NOTES: SPACE BARS ACCORDING TO DIMENSIONS (SEE NEXT STEP) REF: CF109 ARUN CLIMBING FRAME pg 14 of 18 03.03.22...
- Page 15 INSTALLATION INSTRUCTIONS ATTACH CARGO NET USING 656.M12 / 102003-01 ATTACH SINGLE ROPE LADDER USING 656.M12 / 102003-01 & M12 X 50MM SOCKET NUT REF: CF109 ARUN CLIMBING FRAME pg 15 of 18 03.03.22...
- Page 16 INSTALLATION INSTRUCTIONS ATTACH TYRES USING D - SHACKLE SETS AS SHOWN ATTACH TYRE CHAINS USING M12 X 50MM SOCKET NUT ON EYEBOLT CHAINS & D- SHACKLE SETS ON MIDDLE CHAINS NOTES: REPEAT EYEBOLT CHAIN ON BOTH SIDES ATTACH MIDDLE CHAINS TO TYRES AS SHOWN ENSURE CHAIN IS POSITION ON INSIDE OF D - RING...
- Page 17 INSTALLATION INSTRUCTIONS ATTACH TIMBER CLIMBING WALL USING 8X180 WOOD SCREWS SPACED EQUALLY AS SHOWN NOTES: ENSURE OUTER WALL IS FLUSH WITH OUTER TIMBER BUTT WALL TO TOP OF HORIZONTAL TIMBER REF: CF109 ARUN CLIMBING FRAME pg 17 of 18 03.03.22...
-
Page 18: Additional Dimensions
ADDITIONAL DIMENSIONS REF: CF109 ARUN CLIMBING FRAME pg 18 of 18 03.03.22...
