EGR ROLLTRAC ELECTRIC Installation Instructions Manual page 8

T40 Torx Key
7

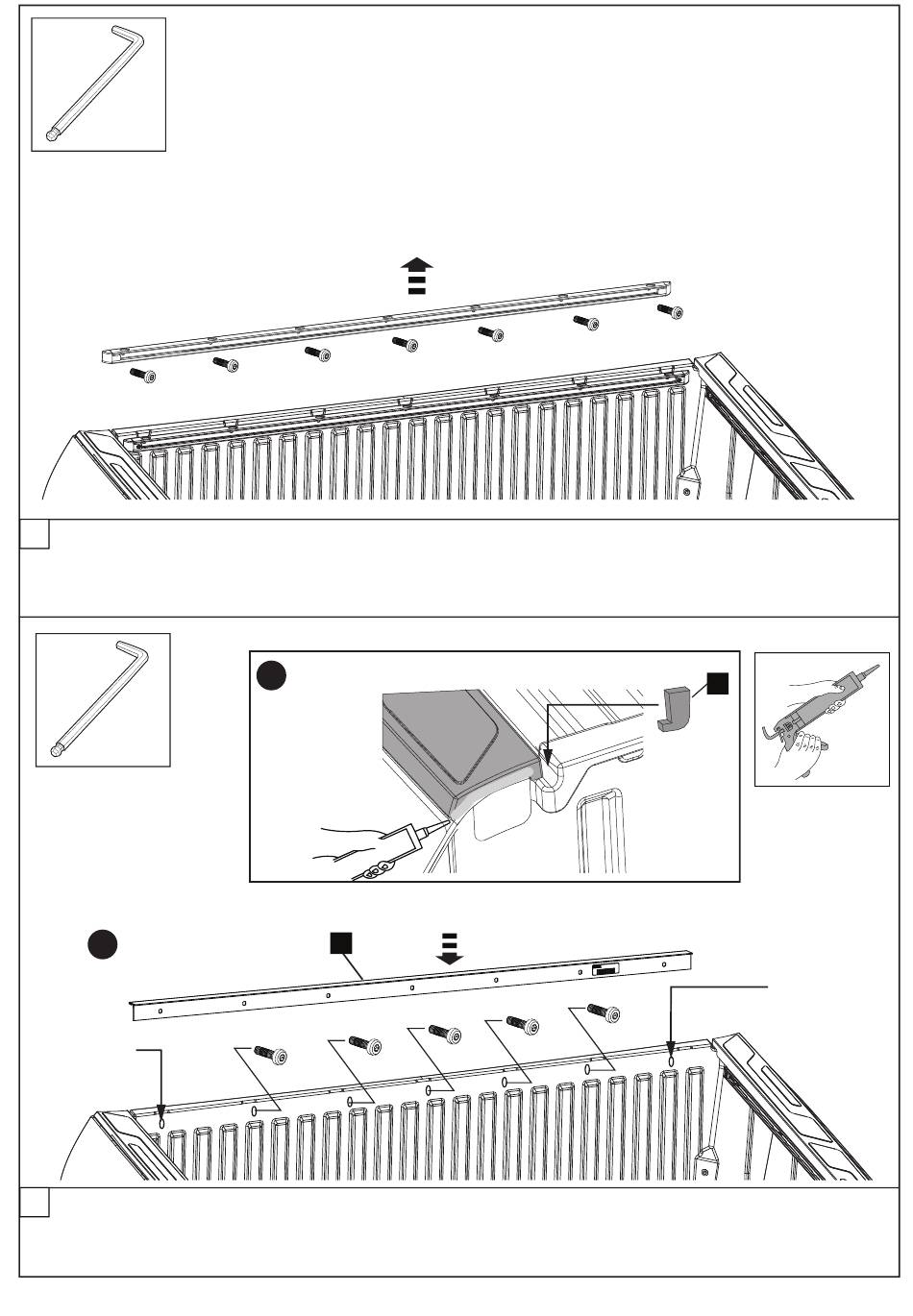

Remove and discard the front utility rail. Retain the 7 Torx screws.
T40 Torx Key
2
DO NOT FIT
SCREW
8
Insert the foam block (26) into the gap between tub and bed cap as shown. Silicone the foam block in place.
Silicone the gap between the panels as shown on both sides. Place the header bar (5) on top of the tub front panel,
press down and secure with 5 Torx screws (previously removed). Torque to 5.5Nm.
RT0094
1
RHS BED FRONT CORNER
FILL GAPS AS
REQUIRED
5
Page 8 of 36
26
Silicone
DO NOT FIT
SCREW
Issue 1: 03/07/24
