EGR ROLLTRAC ELECTRIC Installation Instructions Manual page 16

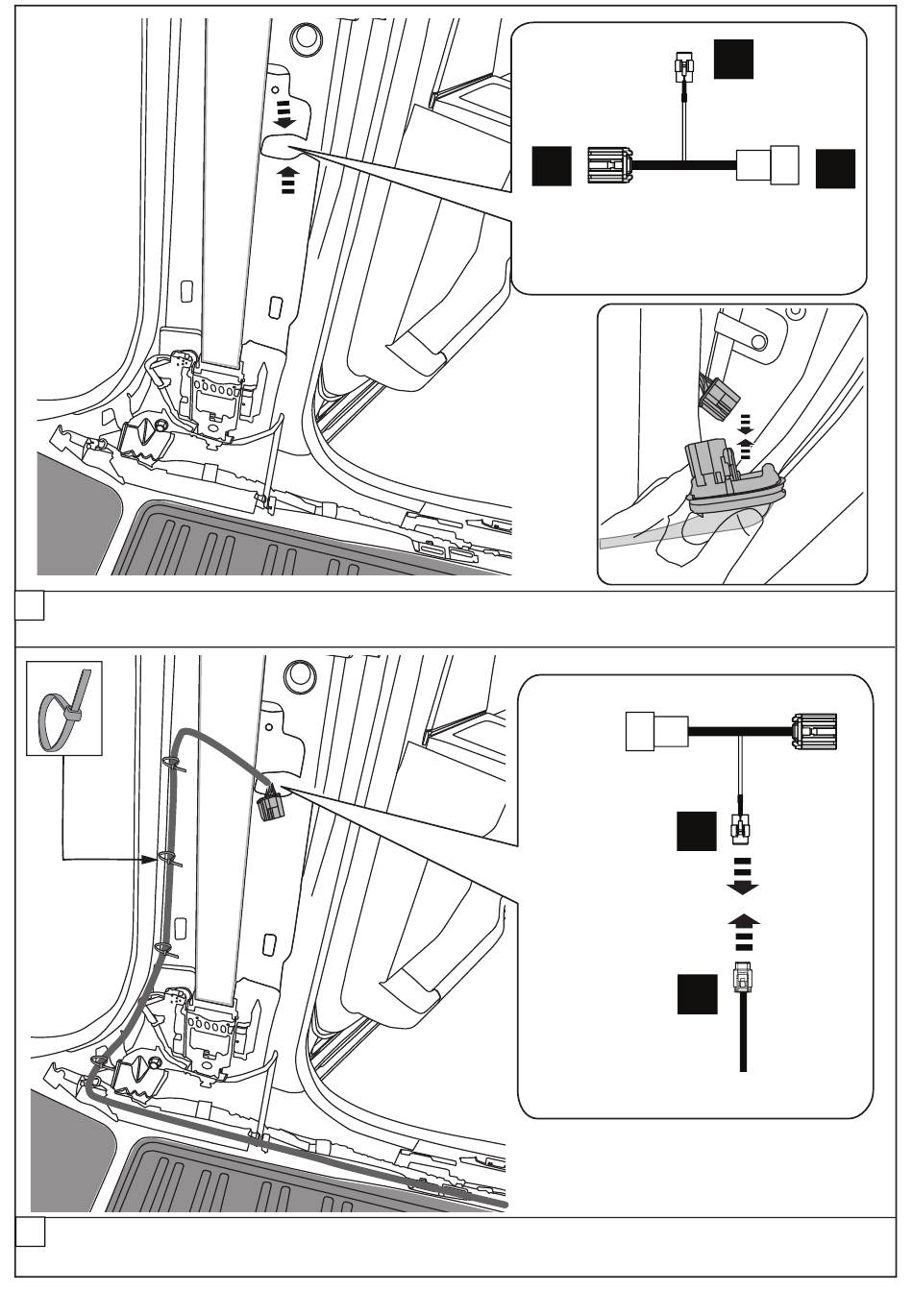

Inside the vehicle connect the previously disconnected connector inside the B-pillar to the (F) connector from the
9
T-patch join the connector (G) with the connector outside the B-pillar.
x4
Connect the Vehicle Harness connector C to the T-patch connector E. Push the connectors and the T-patch inside the
10
pillar and use zip ties to secure. Secure the Vehicle Harness to the existing harness all the way down to the floor.
RT0094
F
T-PATCH
VEHICLE
HARNESS
Page 16 of 36
E
T-PATCH
E
C
Issue 1: 03/07/24
G
