Summary of Contents for Ronix 8679

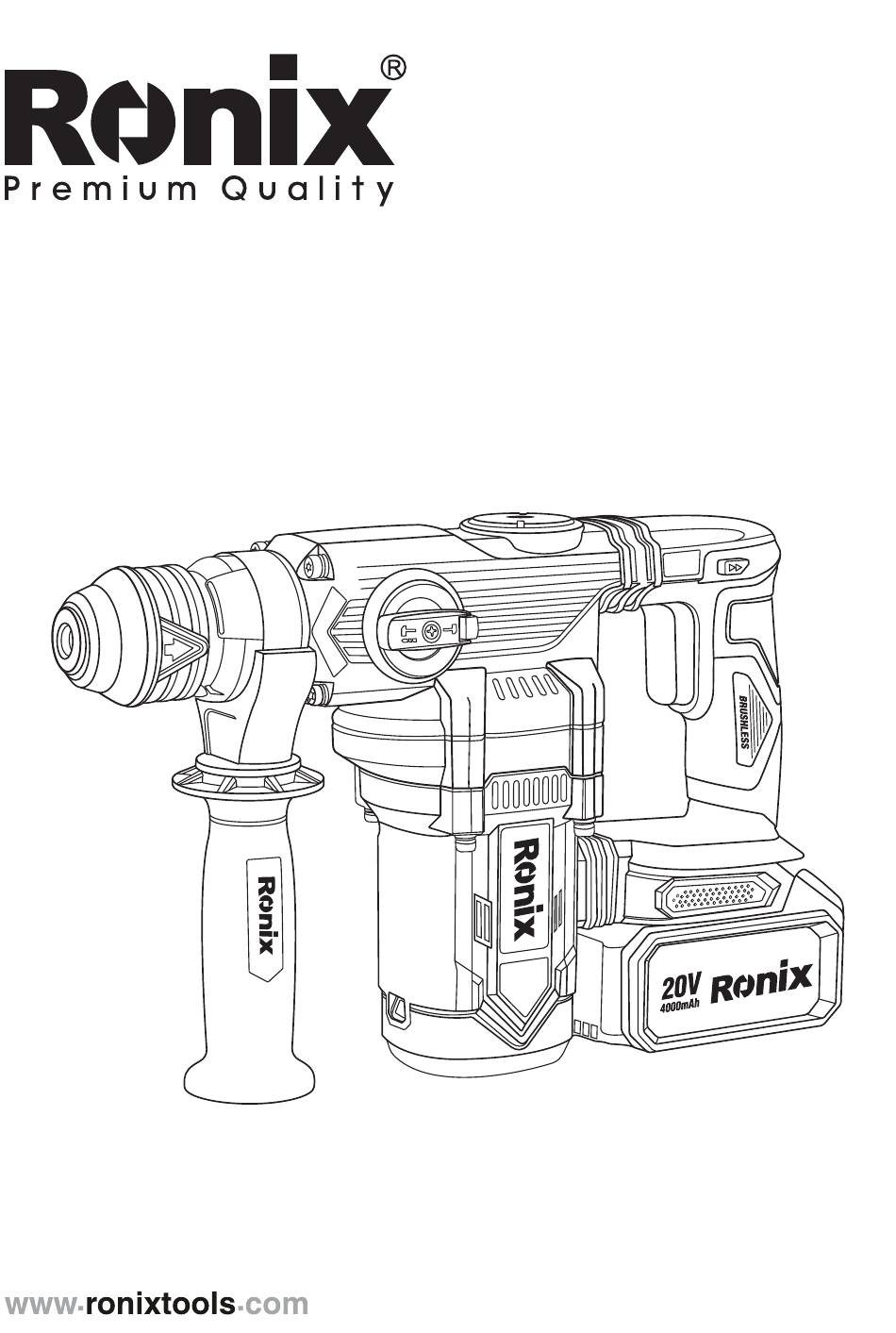

- Page 1 20V BRUSHLESS CORDLESS ROTARY HAMMER 3.5J 8679...
- Page 3 SPECIFICATION 8679 Model Battery Type Lithium-ion Battery Capacity 4.0Ah/20V Chuck Type SDS-Plus Ф10mm Chuck Size No-load Speed 0-1000RPM Impact Joules 3.5J Impact Rate 0-5400BPM Max Capacity in Concrete 24mm Dimensions 336× 91×221mm Body Material PA6+GF30 Weight 4.26Kg (With 1pc Battery Pack)
- Page 4 PART LIST Function Mode Selector Key-less Chuck Grease Injection Inlet Forward / Reverse Switch Button Switch Trigger Handle Auxiliary Handle Motor Housing Battery Pack READ THE INSTRUCTION MANUAL PURPOSE: This tool used For vibration operation on concrete, brick wall and stone. You can also use this tool to drilling on wood, metal, ceramic materials and plastics (normal drilling without vibration function).
- Page 5 2- Do not operate electric tools in explosive environment, such as flammable liquid, gas or dust. Sparks generated by electric tools can ignite dust or gas. 3- Keep away from children and bystanders when operating electric tools. Lack of concentration will make you lose control of tools. ELECTRICAL SAFETY 1- The plug of electric tool must match the socket.
- Page 6 or have drug, alcohol or treatment reactions. Transient negligence in the operation of electric tools can cause serious personal injury. 2- Use personal protective equipment. Always wear goggles. Protective devices, such as the use of dust masks, anti-slip safety shoes, safety helmets, hearing protection and other devices under appropriate conditions, can reduce personal injury.
- Page 7 USE AND PRECAUTIONS OF ELECTRIC TOOLS 1- electric tools according to the purpose. Choosing the right power tools designed according to the rating will make your work more efficient and safer. 2- If the switch cannot tum on or off the power supply, the power tool cannot be used.
- Page 8 operations to be carried out. The use of power tools for operations that are not compatible with their purpose can lead to dangerous situations. 8- Keep the handle and holding surface dry and clean, and do not be stained with grease. In the event of an accident, the slippery handle does not guarantee a secure grip and control of the tool.
- Page 9 may damage the battery and increase the risk of ignition. REPAIR 1- Let professional maintenance personnel use the same spare parts to repair electric tools. This will ensure the safety of the electric tools to be repaired. 2- Never repair a damaged battery pack. The battery pack can only be repaired by the manufacturer or its authorized service provider.
- Page 10 IMPORTANT SAFETY PRECAUTIONS FOR BATTERY PACK 1- Before using the battery pack, please carefully read all the instructions and (1) the battery charger, (2) the battery, and (3) the warning signs on the products using the battery. 2- Do not disassemble or modify the battery pack. Otherwise, it may cause fire, overheating or explosion.
- Page 11 Please follow local regulations on how to dispose of waste batteries. 12- Use the battery only for the products specified by RONIX. Installing the battery to an incompatible product will cause fire, overheating, explosion or electrolyte leakage.
- Page 12 3- Please charge the battery pack at room temperature of 1O ° C - 40 ° C (50 ° F - 104 ° F). Please recharge after the hot battery pack cools down. 4- Remove the battery pack from the tool or charger when not in use. 5- If the battery is not used for a long time (more than six months), please charge it.
- Page 13 battery pack with the groove on the cover, and then push and slide it into place. Insert it fully into place until the battery pack is locked and clicks. If you can still see the red indicator on the upper side of the button after inserting it, it means that the battery pack is not fully locked.
- Page 14 OVER DISCHARGE PROTECTION This protection function will be activated when the remaining battery power becomes low. At this time, please take out the battery in the tool and charge it. NOTE: Under different operating conditions and ambient temperatures, the power indicated by the indicator may be slightly different from the actual situation.
- Page 15 NOTE: Under different operating conditions and ambient temperatures, the power indicated by the indicator may be slightly different from the actual situation. FAULT PROMPT LED continuous full flash 1 time: short circuit protection. LED continuous full flash 2 times: battery pack over-tem perature protection.
- Page 16 When starting the tool, just pull the switch trigger. As the pressure on the switch trigger increases, the tool speed will increase. Release the switch trigger tool to stop. ASSEMBLING Be sure to turn off the tool before adjusting or checking its function and remove the battery pack.
- Page 17 4- After gripping the machine and taking full control of the machine, increase the speed. 5- Apply appropriate pressure to prevent the screwdriver head from separating from the nut during rotation. The nut is easily damaged, making it difficult to remove or tighten. DRILL HOLE To drill a large diameter hole, it is better to drill small hole with a small bit, and then gradually expand the hole diameter to the required size.
- Page 18 overheating. The grease applied will prolong the life of the drill bit and improve the drilling effect. 4- Start drilling at a very slow speed to prevent the bit from slipping from the starting point. 5- Clamp the steel plate. 6- Use a wooden block to pad the steel plate to prevent the steel plate from deformation during drilling.
- Page 19 HOW TO USE THE BATTERY PACK CORRECTLY TO PROTECT THE BATTERY PACK Protect the battery pack from moisture and moisture. The battery pack must be stored in an environment of o to 45 degrees Celsius. Do not leave the battery pack in the car in summer. The service time of the battery pack is significantly shortened after charging, which means that the battery pack has been damaged and must be replaced with a new one.
- Page 20 BATTERY CHARGING 1- Please charge indoors. 2- Only use the battery and charger matched with the electric tool. 3- The battery is only partially charged at the time of delivery. Before using electric tools for the first time, the battery must be fully charged to ensure the power of the battery.
