TC-96255-IP · Rev A · December 2018
SD-4U-SPLICE PANEL
Product Description
DESCRIPTION
SD-4U SPLICE PANEL

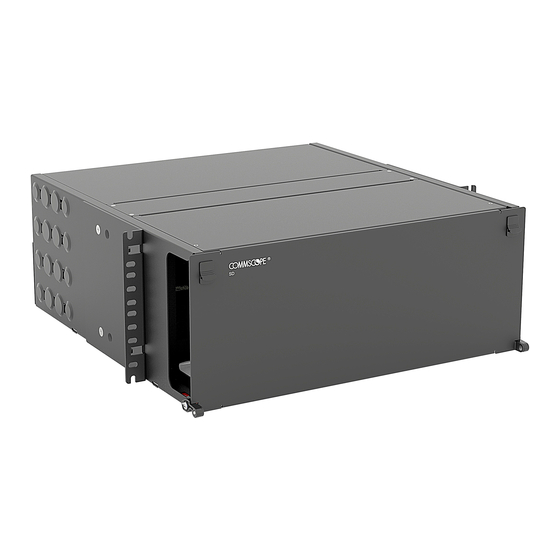

The SD-4U-Splice Panel is a 19-inch
RACK SCREW
rack-mount panel for terminating
and splicing Outside Plant (OSP)
cables or Infra Facility Cables (IFC).
DESCRIPTION
Each panel accomodates 1728
PHILLIPS #2 SCREWDRIVER
fibers in 6 C-size splice trays.
SNIPS
Each splice tray holds
4 splice modules, providing
DESCRIPTION
288 mass fusion splices
TIE WRAPS
(12 fiber ribbon x 24 splices).
CABLE CLAMP
MESH TUBING
Accessories listed at right must
FOST-ACC-C-TRAY -RIBN-24
be ordered separately
.
SPLICE TRAY
Install Panel as follows: (a) mount panel on frame; (b) remove
1
ALL transportation screws and tape from panel; (c) mount input and
output cables on frame at adjacent location using cable clamp of
customer choice (order separately); see Step 2 breakout diagram.
BREAKOUT
3
b
3
a
3
b
TRANSPORTATION
SCREW
86064582 Rev A
Quick
Start
Break Out Input and Output Cables as follows.
2
Break out the cables per the diagram below, fitting the sub-units with mesh tubing as indicated. Route each sub-unit "bundle" into either back corner of the panel
as shown in Step 3. Secure the mesh tubing with tie wraps and felt tape in the location shown.
NOTE:
PARTS LIST
PARTS LIST
QUANTITY
1
4
TOOLS REQUIRED
PARTS LIST
QUANTITY
1
1
ACCESSORIES
PARTS LIST
QUANTITY
15
Install Cable as follows: (a) remove back cover (unscrew knob to
3
1
release it); (b) route cable bundles to the rear of the panel;
secure on cable mount using cable tie and felt tape; (c) bring bundles
200 FT.
forward to the panel front; (d) unpack
6
components; (e) route bundles to splice tray for splicing on
nearby table; (f) splice as shown; see Note below.
CABLE
CLAMP
3
c
a
3
MESH
3
b
LEFT REAR
LEFT
ENTRY
REAR
EXAMPLE
ENTRY
EXAMPLE
Sections shown
are diagrammatic,
not proportional.
POSITIONAL
(ADDITIONAL MESH
LENGTH TO BREAKOUT)
CABLE
CABLE CLAMP (SEE STEP 1)
LEFT REAR ENTRY
splice tray and identify
BACK
NOTE:
COVER
UNSCREW
KNOBS
TO RELEASE
3
c
PANEL
SIDE
WALLS
NOT
SHOWN
FELT
TIE
TAPE
WRAP
OVERHEAD VIEW
TIE
FELT
(ONE BUNDLE)
WRAP
TAPE
CommScope (logo) and CommScope are trademarks.
BREAKOUT LENGTH
126 IN. (320.04 CM)
100 IN.
(254.0 CM)
MESH TUBING
TIE POINT ON PANEL
RIGHT REAR ENTRY
d
3
SPLICE
TRAY
WITH
COVER
FELT
TAPE
These steps give a pictorial
overview. For complete
TIE
instructions, refer
WRAPS
to CommScope
document provided
with splice tray.
e
3
3
f
FELT
TAPE
& TIE
WRAP
26 IN.
(66.0 CM)
BARE FIBER
SPLICE
MODULES
26323-A
FELT
TAPE
& TIE
WRAP
© 2018, CommScope, Inc. All Rights Reserved.
