SleepSafer Articulated
(High Bed)
Thank you for purchasing the SleepSafer Plus Safety Bed. With proper care, your bed will
provide years of safe use. We strongly recommend that this bed be assembled using two
people. Everything necessary to assemble your bed is included in a special box marked
"Additional Parts Inside" which is located in the box containing the headboard and footboard.

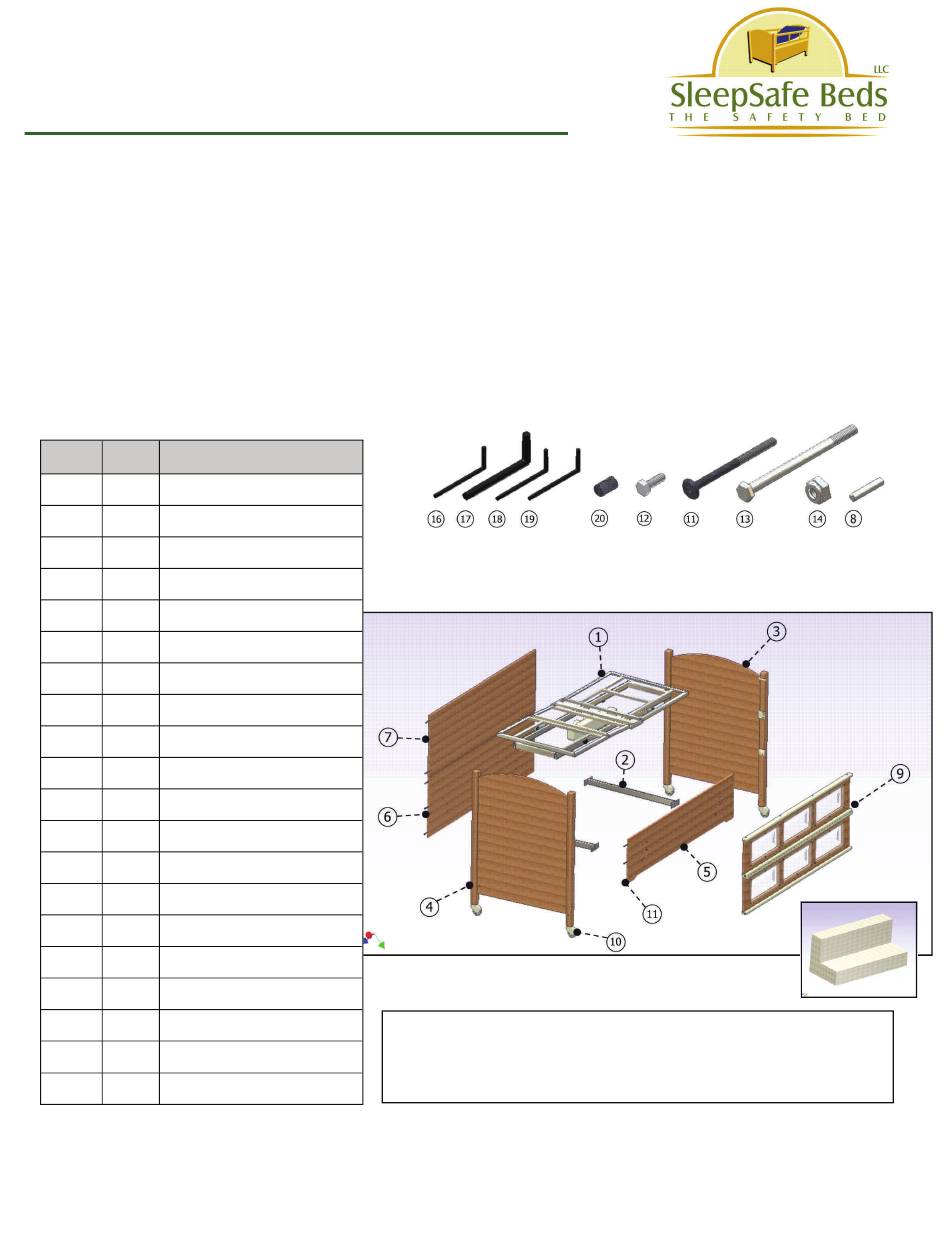

Carefully unpack the contents of your bed and verify that all parts are included using the dia-
gram and chart below. Be sure to save the four foam shipping blocks used to pack-
age the electric frame. They will be needed to aid in assembly of your bed.
Parts List
Item Qty
1
1
Electric Frame Assembly
2
2
Mounting Bracket
3
1
Headboard Assembly
4
1
Footboard Assembly
5
1
Front Panel
6
1
Back Bottom Panel
7
1
Back Top Panel
8
2
Alignment Pins
9
2
Safety Rails
10
4
Casters
11
16
90mm Allen Bolts
12
8
1" Hex Bolts
13
4
4-1/2" Hex Bolts
14
4
5/16" Nylon Lock Nuts
15
4
Foam Shipping Block
16
1
4mm Allen Wrench
17
1
1/4" Allen Wrench
18
1
#15 Torx Wrench
19
1
#10 Torx Wrench
20
16
Extra Barrel Nuts
PLEASE CHECK ALL BOXES FOR HARDWARE BEFORE DISCARDING
DO NOT DISCARD FOAM BLOCKS WHICH ARE REQUIRED FOR ASSEMBLY
WARRANTY AND USER INFORMATION CAN BE FOUND AT THE END OF THESE INSTRUCTIONS
Assembly Instructions
Description
Note: For clarity, all diagrams shown in these in-
structions show decking removed from electric
3135 Dillons Mill Road • Callaway, VA 24067
Toll Free • 866.852.2337 Fax • 540.334.2100
www.sleepsafebed.com
frames.
