SleepSafe II Articulated
(Medium Bed)
Assembly Instructions
Thank you for purchasing the SleepSafe Plus Safety Bed. With proper care, your bed will pro-
vide years of safe use. We strongly recommend that this bed be assembled using two peo-
ple.
Everything necessary to assemble your bed is included in a special box marked
"Additional Parts Inside" which is located in the box containing the headboard and footboard.

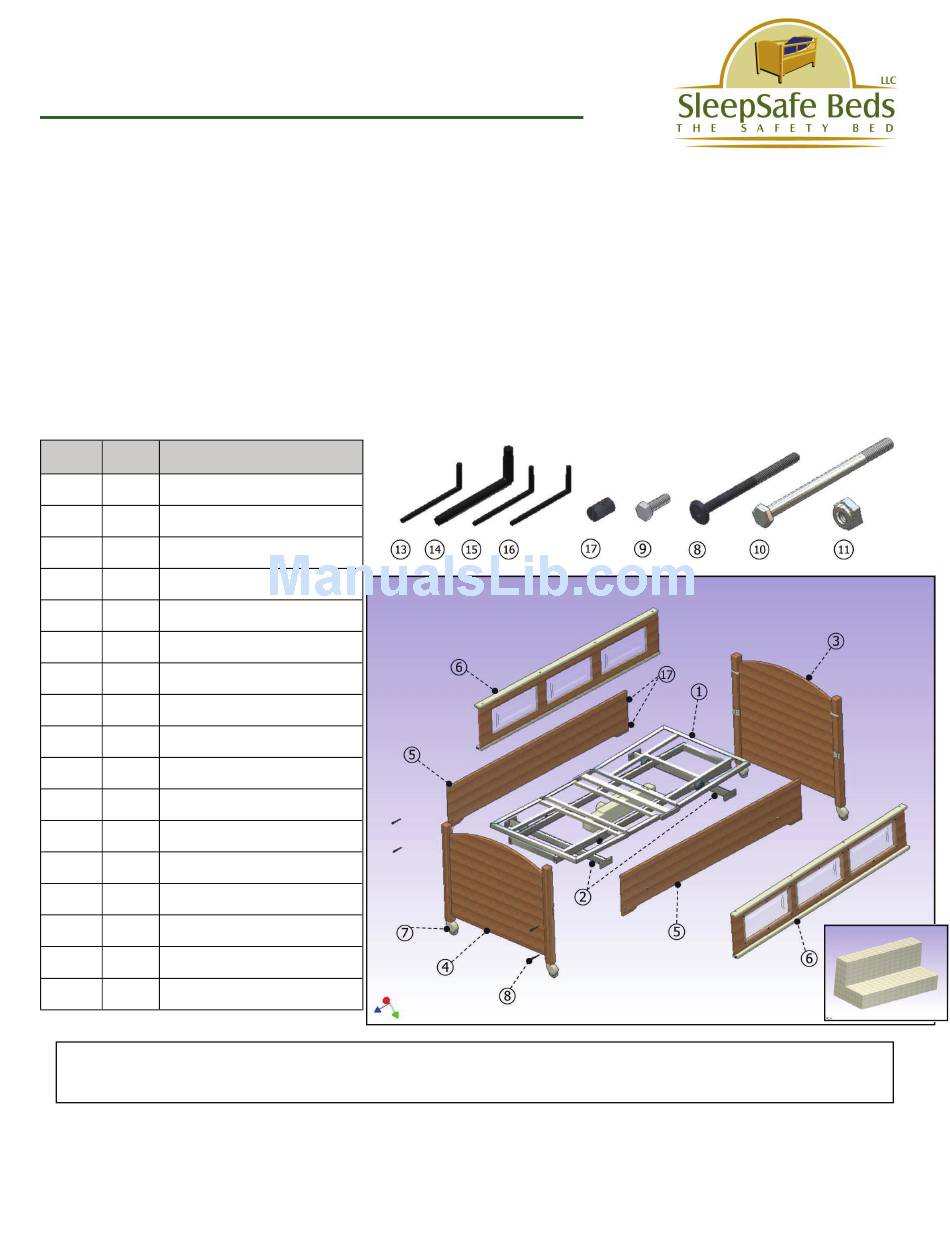

Carefully unpack the contents of your bed and verify that all parts are included using the dia-
gram and chart below. Be sure to save the four foam shipping blocks used to pack-
age the electric frame. They will be needed to aid in assembly of your bed.
Parts List
Item Qty
1
1
Electric Frame Assembly
2
2
Mounting Bracket
3
1
Headboard Assembly
4
1
Footboard Assembly
5
2
Side Panels
6
2
Safety Rails
7
4
Casters
8
12
90mm Allen Bolts
9
8
1" Hex Bolts
10
4
4-1/2" Hex Bolts
11
4
5/16" Nylon Lock Nuts
12
4
Foam Shipping Block
13
1
4mm Allen Wrench
14
1
1/4" Allen Wrench
15
1
#15 Torx Wrench
16
1
#10 Torx Wrench
17
12
Barrel Nuts
Note: For clarity, all diagrams shown in these instructions show decking removed
PLEASE CHECK ALL BOXES FOR HARDWARE BEFORE DISCARDING
DO NOT DISCARD FOAM BLOCKS WHICH ARE REQUIRED FOR ASSEMBLY
WARRANTY AND USER INFORMATION CAN BE FOUND AT THE END OF THESE INSTRUCTIONS
Description
from electric frames.
3135 Dillons Mill Road • Callaway, VA 24067
Toll Free • 866.852.2337 Fax • 540.334.2100
www.sleepsafebed.com
12
