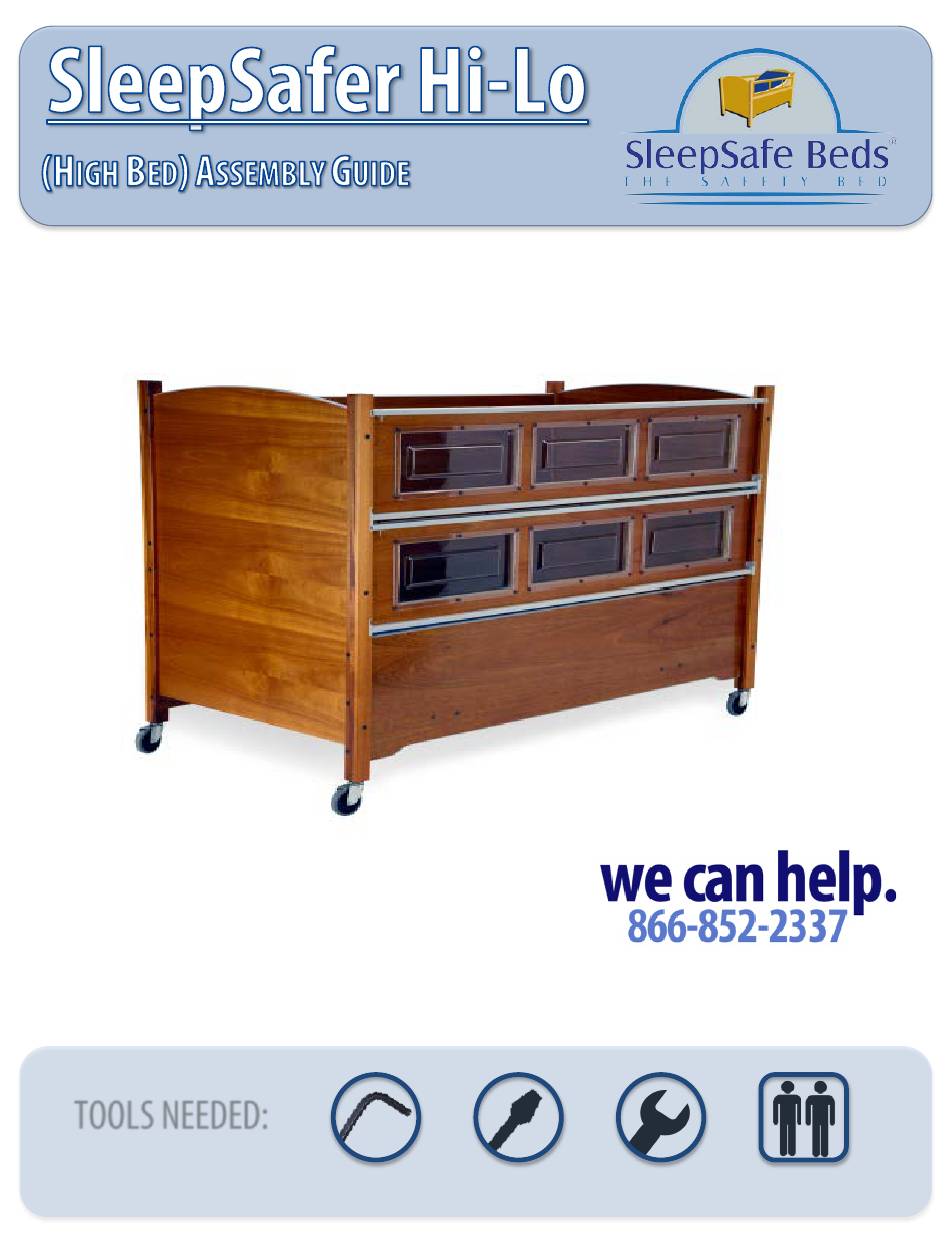

Thank you for purchasing the SleepSafe® Safety Bed. With proper care, your bed will provide years
of safe use. Carefully unpack all the contents of your bed and verify that all parts are included using
the following pages.
PLEASE CHECK ALL BOXES FOR HARDWARE BEFORE DISCARDING
WARRANTY AND USER INFORMATION CAN BE FOUND AT THE END OF THESE INSTRUCTIONS
Be sure to run your bed down all the way once a month or multiple resets will be needed.
TOOLS NEEDED:
Flat-Head Screwdriver
3/8" Wrench
At least 2 People
4mm Allen Wrench
(Provided)
Advertisement
Related Manuals for SleepSafe Beds SleepSafer Hi-Lo Safety Bed
Summary of Contents for SleepSafe Beds SleepSafer Hi-Lo Safety Bed
- Page 1 Thank you for purchasing the SleepSafe® Safety Bed. With proper care, your bed will provide years of safe use. Carefully unpack all the contents of your bed and verify that all parts are included using the following pages. PLEASE CHECK ALL BOXES FOR HARDWARE BEFORE DISCARDING WARRANTY AND USER INFORMATION CAN BE FOUND AT THE END OF THESE INSTRUCTIONS Be sure to run your bed down all the way once a month or multiple resets will be needed.
- Page 2 (List of all the Items necessary for your Bed Assembly) (Detailed Instructions for Assemblying your Bed) (Extension/Topper Assembly Guide) (Detailed Instructions for adjusting Safety Rails) (Remote Operation)
- Page 3 90mm Allen Bolt Alignment Pin ¾“ Hex Bolt Barrel Nut (Preinstalled on padded beds) Cardboard Spacer ¼” Allen Wrench 4mm Allen Wrench T15 Torx Wrench T10 Torx Wrench...
- Page 4 Casters Hi-Lo Electric Frame Mattress Headboard Footboard Front Panel Back Panels Safety Rails...
- Page 5 Prepare Side-Rails (insert Barrel Nuts): Align Barrel Nut Slot Perpendicular to the edge of the Side Rail. Side-Rails include the Front Panel and one of the Back Panels (the Panel with Bronze Inserts to attach to the frame). Set Frame on Cardboard Spacers: Set Spacers at least 6”...
- Page 6 Attach Side Rails to Frame: Attach Headboard and Footboard to Side Rails:...
- Page 7 Attach Back Panel using Alignment Pins Note: Place the alignment pins in the holes at the top of the side panel (Fig. A) then lower the back panel onto the pins (Fig. B). After the back panel is in position, secure with 90mm Allen Bolts using the 4mm Allen Wrench as you did in the previous step.
- Page 8 Install Mattress: Install Safety Rails: * Be sure to run your Hi-Lo Bed all the way down once a month or multiple resets will be needed!
- Page 9 90mm Allen Bolt 4mm Allen Wrench Curved End Piece Extension Side Rail Topper (Optional) Allen Screws (w/ Topper Only)
- Page 10 Set Extension Side Rails on Top of Legs: (You will be assembling the Extension upside-down) *Be sure screens face in as shown Attach Extension Ends to Side Rails: Attach Ends with Curve Up (smiling) using the 90mm Allem Bolts and 4mm Allen Wrench provided:...
- Page 11 Flip Extension Assembly over: Curve-down (frowning) If you don’t have a Topper, skip Step #4: Attach Topper: Using the Allen Screws included...
- Page 12 Loosen (but do not remove) Top Bolts on Bed Legs: Shown as “A” below: Attach Extension Set Extension on top of your SleepSafer® Bed. Insert one 90mm Allen Bolt into each of the holes at the top of the legs and tighten using the 4mm Allen Wrench provided (Shown by “B”...
- Page 13 *Each Safety Rail is pre-adjusted at our factory, but it may become necessary to adjust the Safety Rail height over time. TOOLS NEEDED: Rubber Mallet T10 Torx Wrench T15 Torx Wrench (or Hammer) (Provided) (Provided) Determine if your Safety Rails need adjustment: Look at each brass locking-pin when the Safety Rail is in the locked position as indicated by “A”...
- Page 14 *Each Safety Rail is pre-adjusted at our factory, but it may become necessary to adjust the Safety Rail height over time. Determine if your Safety Rails need adjustment: With the safety rail in the locked position, check the spacing between the end of the safety rail and the headboard and footboard legs.
-
Page 15: Reset Procedure
REMOTE LOCK OUT PROCEDURE: PRESS and HOLD BOTH DOWN BUTTONS on HEAD and FOOT articulation functions for about 5 seconds. The light on the remote will flash when it is locked. To UNLOCK repeat this procedure. HiLo Bed Surface (Up/Down) Knee &... -
Page 16: Full One-Year Warranty
Limited Five-Year Warranty: During the second through fifth years from the date of purchase, SleepSafe Beds will replace any part found to be defective. Purchaser shall pay any service and shipping costs related to the replacement of the defective part.
