SleepSafe Beds SleepSafe II Medium Bed Assembly Manual

Hide thumbs Also See for SleepSafe II Medium Bed:

Advertisement

Quick Links

Download this manual

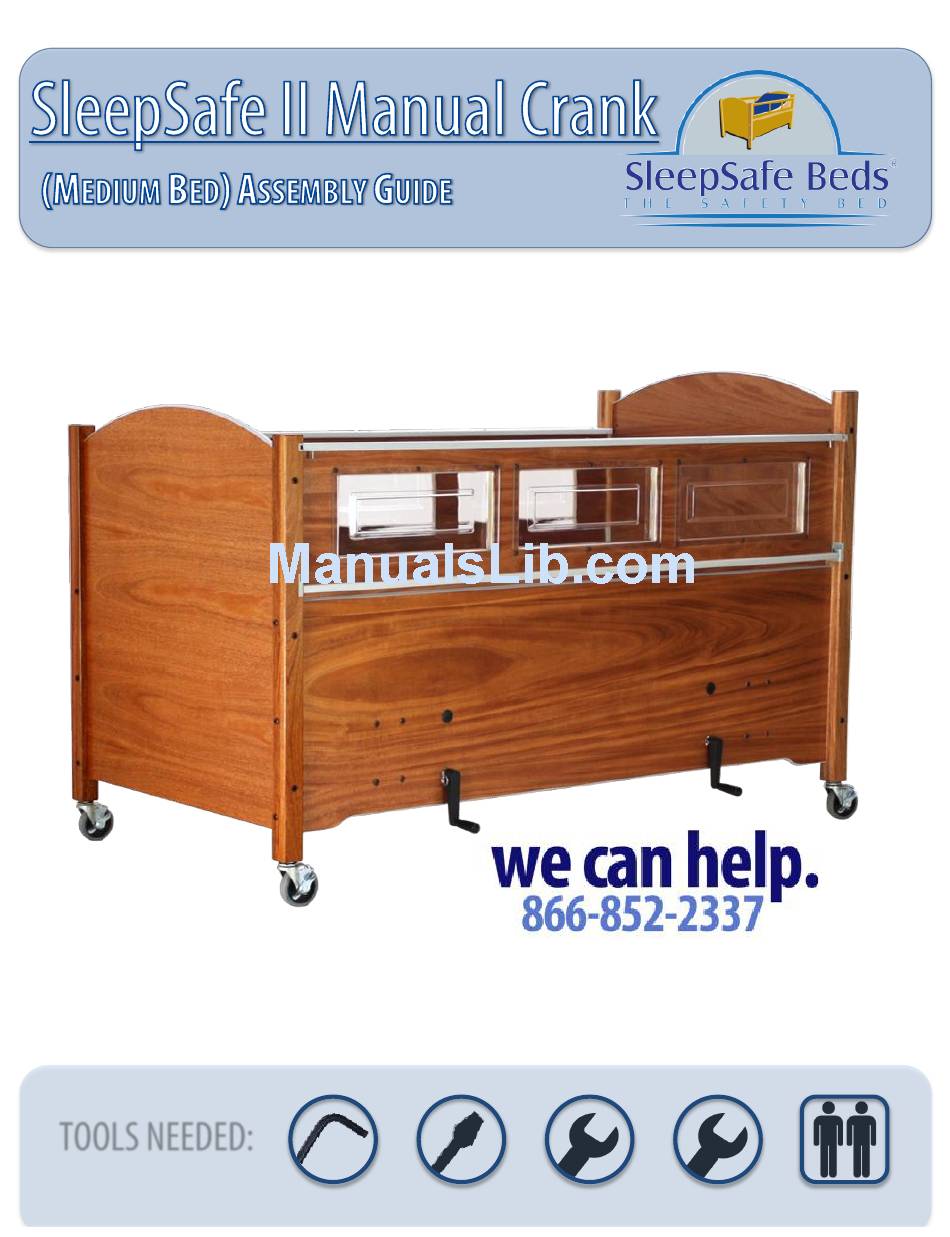

Thank you for purchasing the SleepSafe Safety Bed. With proper care, your bed will provide years of

safe use. Carefully unpack all the contents of your bed and verify that all parts are included using
the following pages.
PLEASE CHECK ALL BOXES FOR HARDWARE BEFORE DISCARDING
WARRANTY AND USER INFORMATION CAN BE FOUND AT THE END OF THESE INSTRUCTIONS
TOOLS NEEDED:

7/16" Wrench
Flat-Head Screwdriver
3/8" Wrench
At least 2 People
4mm Allen Wrench
(x2)
(Provided)

Advertisement

loading
Need help?

Need help?

Do you have a question about the SleepSafe II Medium Bed and is the answer not in the manual?

Questions and answers

Related Manuals for SleepSafe Beds SleepSafe II Medium Bed

Summary of Contents for SleepSafe Beds SleepSafe II Medium Bed

  • Page 1 Thank you for purchasing the SleepSafe Safety Bed. With proper care, your bed will provide years of   safe use. Carefully unpack all the contents of your bed and verify that all parts are included using the following pages. PLEASE CHECK ALL BOXES FOR HARDWARE BEFORE DISCARDING WARRANTY AND USER INFORMATION CAN BE FOUND AT THE END OF THESE INSTRUCTIONS TOOLS NEEDED:  ...
  • Page 2       (Provided Items Necessary for Bed Assembly) (Detailed Instructions for Assembling your Bed) (Explanation of the Bed Articulation) (Detailed Instructions for Adjusting Safety Rails)               2  ...
  • Page 3         90mm Allen Bolt ¾“ Hex Bolt Barrel Nut (Preinstalled on padded beds) Locking Pin Black Plugs Cardboard Spacer ¼” Allen Wrench 4mm Allen Wrench T15 Torx Wrench T10 Torx Wrench              ...
  • Page 4       Casters Frame Crank Handle Mattress Headboard Footboard Side Rails Safety Rails               4  ...
  • Page 5   Determine where your SleepSafe Bed® will be positioned: Depending on the placement of your bed, it may be necessary to move the Crank Assembly to the opposite side of the bed. If so, set the frame flat on the ground, remove the Assembly using your two 7/16”...
  • Page 6       Prepare Side-Rails (insert Barrel Nuts):   Align Barrel Nut Slot Perpendicular to the edge of the Side Rail. Attach Side Rails to Frame Assembly: There are two height settings available: Setting #1 offers 24” of Safety Rail Protection. Setting #2 offers 18”...
  • Page 7         Attach Headboard and Footboard to Side Rails: Install Casters and Remove Spacers:     * Once the caster is inserted, turn the tightening nut as shown above to compress the       rubber sleeve on the stem inside the wood leg, thus preventing the caster from falling out.  ...
  • Page 8       Install Crank Handles & Black Plugs: Locking Pins Push Crank Handles onto the Crank Shaft then insert Locking Pins to hold Handles in place. Install Mattress:               8  ...

  • Page 9: Installation

          Install Safety Rails: Installation: Install Safety Rails in the lowered position inserting the black hex bolt pivot pins into plastic strikes. Once in place, you may then tilt the Safety Rails up into their upright and locked position. * Always install and remove Safety Rails while they are in the lowered position.
  • Page 10   *Each Safety Rail is pre-adjusted at our factory, but it may become necessary to adjust the Safety Rail height over time.   TOOLS NEEDED:     Rubber Mallet T10 Torx Wrench T15 Torx Wrench (or Hammer) (Provided) (Provided) Determine if your Safety Rails need adjustment: Look at each brass locking-pin when the Safety Rail is in the locked position as A  ...
  • Page 11   *Each Safety Rail is pre-adjusted at our factory, but it may become necessary to adjust the Safety Rail height over time. Determine if your Safety Rails need adjustment: With the safety rail in the locked position, check the spacing between the end of the safety rail and the headboard and footboard legs.

  • Page 12: Full One-Year Warranty

    Limited Five-Year Warranty: During the second through fifth years from the date of purchase, SleepSafe Beds will replace any part found to be defective. Purchaser shall pay any service and shipping costs related to the replacement of the defective part.
  • Page 13                     13  ...
  • Page 14                   14  ...
