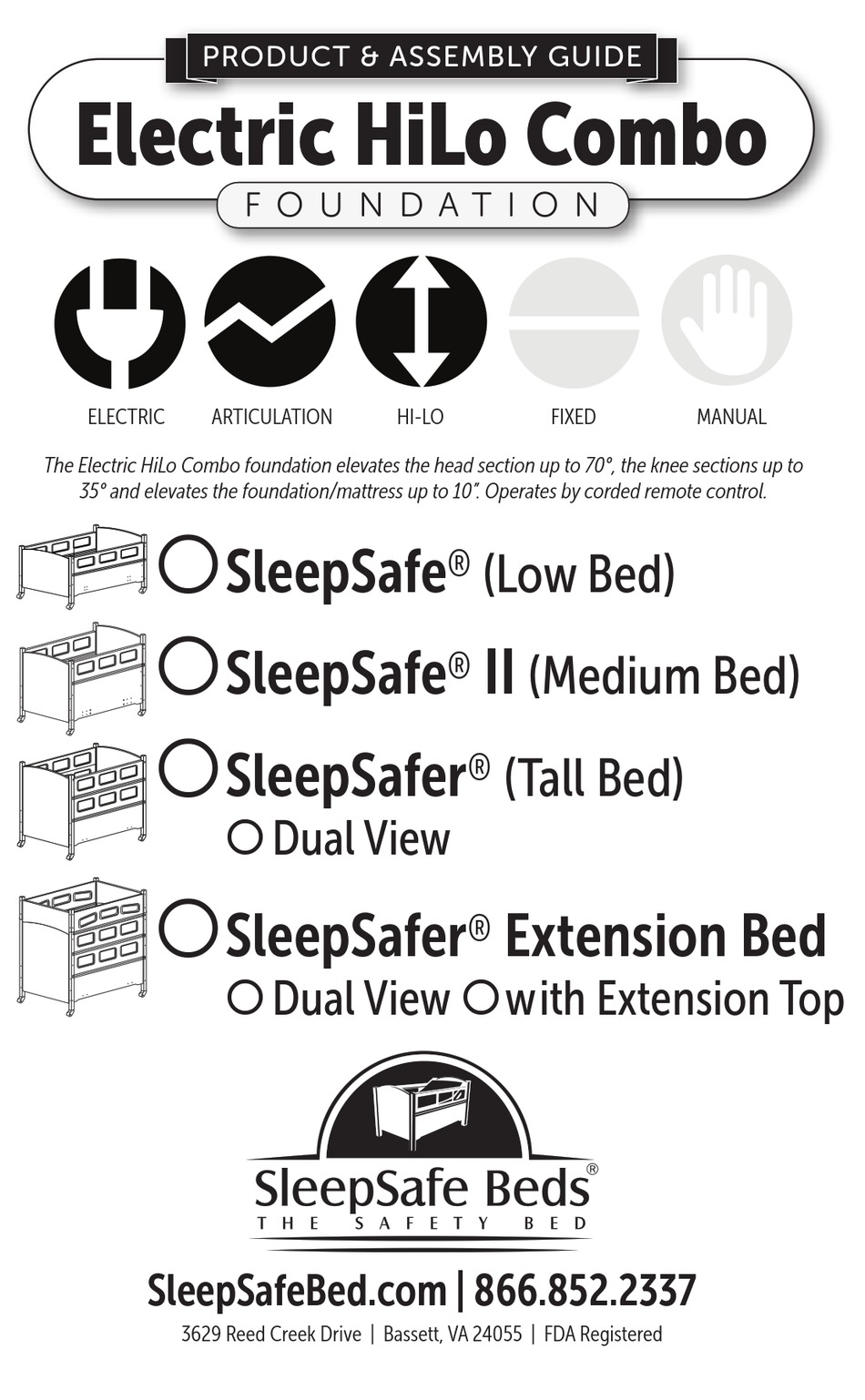

PRODUCT & ASSEMBLY GUIDE

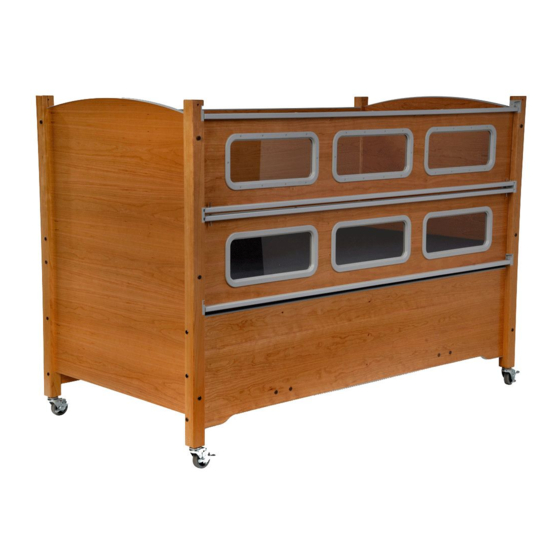

Electric HiLo Combo
ELECTRIC
The Electric HiLo Combo foundation elevates the head section up to 70°, the knee sections up to
35° and elevates the foundation/mattress up to 10". Operates by corded remote control.
¡ Dual View
¡ Dual View ¡with Extension Top
SleepSafeBed.com | 866.852.2337
3629 Reed Creek Drive | Bassett, VA 24055 | FDA Registered
F O U N D A T I O N
ARTICULATION
SleepSafe
SleepSafe
SleepSafer
SleepSafer
HI-LO
FIXED
®
(Low Bed)
II
®
(Medium Bed)
®
(Tall Bed)
Extension Bed
®
MANUAL
Advertisement
Related Manuals for SleepSafe Beds Electric HiLo Combo SleepSafe
Summary of Contents for SleepSafe Beds Electric HiLo Combo SleepSafe
- Page 1 PRODUCT & ASSEMBLY GUIDE Electric HiLo Combo F O U N D A T I O N ELECTRIC ARTICULATION HI-LO FIXED MANUAL The Electric HiLo Combo foundation elevates the head section up to 70°, the knee sections up to 35° and elevates the foundation/mattress up to 10”. Operates by corded remote control. ...
-
Page 2: Table Of Contents
Table of Contents Tools Needed Pre-Assembly Information Component Chart #1 Assembly Component Chart #2 4, 5 Assembly Guide: SleepSafe Low Bed SleepSafe II Medium Bed 6, 7 Assembly Guide: SleepSafer Tall Bed SleepSafer Tall Bed Dual View Allen and Torx Wrenches 8, 9 Assembly Guide: SleepSafer (Supplied) Extension Bed / Extension Top... - Page 3 Attention! Read Before Assembly • • KEEP THIS PRODUCT & ASSEMBLY GUIDE. NEVER SUBSTITUTE OR ALTER PARTS, THE IT CONTAINS THE BED’S SERIAL NUMBER PRODUCT INCLUDING SIDE RAILS, MUST ------------------------------------- BE FULLY INSTALLED PRIOR TO USE. • CAREFULLY REMOVE AND LAY OUT ALL ------------------------------------- •...
- Page 4 Included Components Assembly Cardboard Lift 90 mm Allen Bolt 3/4” Hex Bolt Barrel Nut (If the bed is unpadded) T-12 T-12 40 mm F-18 F-18 Allen Bolt Q-18 Q-18 Allen / Torx Wrench Set (3 sizes) Square Bit Driver Casters (Attached) Extension Bed Safety Latch...
- Page 5 Included Components Assembly Electric Hi-Lo Frame Mattress Headboard Footboard Side Panel Front Panel Back Panel Safety Rail Extension End Panel Extension Bed Side Panel Extension...
- Page 6 þ SleepSafe (Low Bed) Assembly Guide þ SleepSafe II (Medium Bed) After unpacking bed and checking the contents Set HiLow Œ Foundation on 4 provided cardboard lifts. When placing carboard lifts beneath foundation, allow room for Save cardboard lifts for future use! both side panels to be attached.
- Page 7 Attach Headboard and Footboard to Side Panels. (Use 4mm Allen Wrench to fasten 90mm Allen Bolts to Side Panels) Once headboard and footboard are SleepSafe Bed (Low Bed) uses (8) 90mm Bolts Casters attached, remove SleepSafe II (Medium Bed) uses (12) 90mm Bolts are pre-installed cardboard lifts.
- Page 8 þ SleepSafer (Tall Bed) Assembly Guide þ SleepSafer (Dual View) After unpacking bed and checking the contents Set HiLow Œ Foundation on 4 provided cardboard lifts. When placing cardboard lifts beneath foundation, allow room for both side panels to be attached. Save cardboard lifts for future use! ...
- Page 9 Attach Headboard and Footboard to Panels. Fasten (6) 90mm Allen Bolts to each panel with 4mm Allen Wrench. Install Back Panel. Set in place with alignment Once headboard and pins, then fasten with Casters are footboard are attached, (2) 90mm Allen Bolts pre-installed remove cardboard lifts.
- Page 10 þ Assembly Guide SleepSafer Extension Bed (with or without Top) After unpacking bed and checking the contents Set Extension Bed Œ Side Rails Upside Down Legs are upside down. and on their Legs. Assemble this with two people, otherwise one person can assemble one panel at a time after the the rest of the bed is assembled.
- Page 11 This SleepSafer® Extension Bed installation step is based on ordering as a complete SleepSafer® Extension Bed. Retrofitting a SleepSafer® with this Loosen top Extension requires additional bolts on all conversion instruction. 4 bed posts. This allows play in the frame to fit the Extension.
- Page 12 Safety Rail Adjustment: Up and Down ΠDoes the Safety Rail Additional Tools Needed: POST Hammer or Mallet need adjustment? Portable Electric Drill For proper operation, the pin should be centered in the strike. If not centered, follow these steps to center the pin in the strike.
-
Page 13: Padding Information
SleepSafe Bed Padding Information Materials: • 70 Denier Nylon Fabric Cover with a Fluid Resistant Healthcare Coating • 3/4” High Density Foam Padding Padding Features: The safety rail pads extend up and over the rails and attach to the outside of the safety rails. The headboard and footboard pads extend to the top and to the edges of the legs of headboard and footboard. -
Page 14: Mattress Information
SleepSafe Bed Mattress Information SleepSafe Bed® – Our Specialized Memory Foam Mattress Matttress Cover with Gel Technology SleepSafe® Bed mattress support surface provides optimized pressure redistribution, rapid heat dissipation, and increases breathability compared to standard foam. • Reduced incidence of pressure ulcers by channeling heat away from the body much faster than standard foam, virtually ridding... -
Page 15: Final Installation Checklist
The mattress should always fit snugly against the sides. If not, contact the DME or Customer Service at SleepSafe Beds. Check Bed Operation Knee should move up to 35° with the Remote. -
Page 16: Operator's Guide
Operator’s Guide: Electric Hi Lo Combo Operating the HiLo Combo Foundation with the Remote. Œ This foundation uses a corded Ž remote to control 3 functions: Œ 1) Controls mattress height 10” ° 2) Controls head elevation to 70 °... - Page 17 Frequently Asked Questions How do I get replacement parts? What should I do if I have a repair problem? Please call your Durable Medical Equipment (DME) provider that helped you purchase the bed. They should be able to help with any problem you may have. If your original DME provider cannot help you with replacement parts or repair, please contact us directly at 866-852-2337 so we may assist you.
-
Page 18: Warranty Information
United States. Limited Five Year SleepSafe® Bed Warranty During the second through fifth years from the date of purchase, SleepSafe Beds, LLC will replace any part found to be defective. Purchaser shall pay all service and shipping costs related to the replacement of the defective part. -
Page 19: Dme Provider / Technical Support
Durable Medical Equipment Provider Bed Serial # ___________________________________ Installation Date ___________________________________ DME Provider ___________________________________ DME Contact ___________________________________ DME Address ____________________________________ DME Phone ____________________________________ DME Email ____________________________________ Installed by ____________________________________ Customer Service & Technical Support SleepSafe Bed Support DME Provider Support Hours: 8 AM to 5 PM / M-F / EST DME: ________________________ Toll Free: 866.852.2337... - Page 20 SleepSafeBed.com | 866.852.2337 3629 Reed Creek Drive | Bassett, VA 24055 | FDA Registered WI-820.120-7 Electric Hi-Lo Combo [7] Rev. 03...
