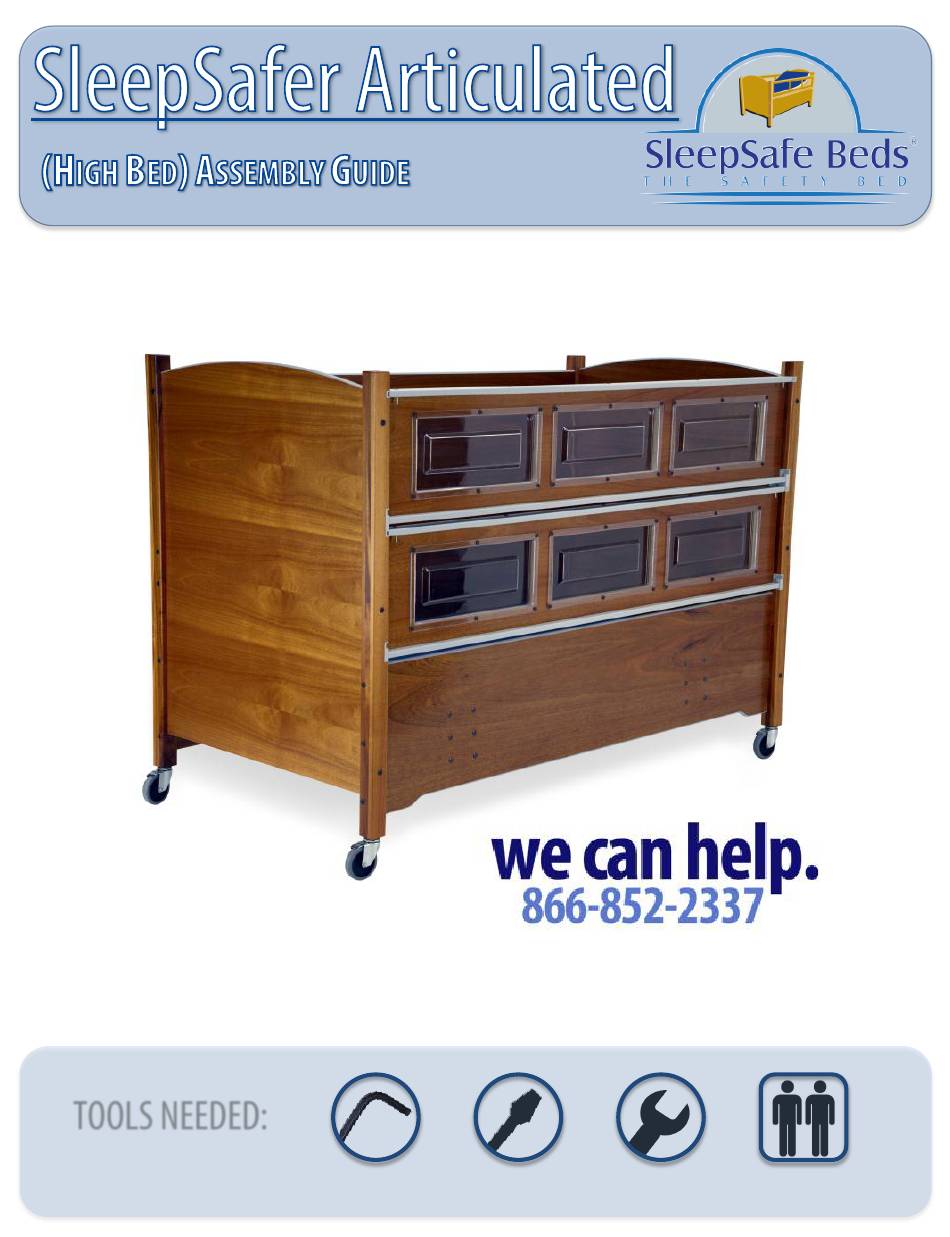

SleepSafe Beds SleepSafer Articulated Assembly Manual

High bed
Hide thumbs Also See for SleepSafer Articulated:

Advertisement

Quick Links

Download this manual

Thank you for purchasing the SleepSafe Safety Bed. With proper care, your bed will provide years of
safe use. Carefully unpack all the contents of your bed and verify that all parts are included using
the following pages.
PLEASE CHECK ALL BOXES FOR HARDWARE BEFORE DISCARDING
WARRANTY AND USER INFORMATION CAN BE FOUND AT THE END OF THESE INSTRUCTIONS
TOOLS NEEDED:

Flat-Head Screwdriver
4mm Allen Wrench
(Provided)

3/8" Wrench
At least 2 People

Advertisement

loading
Need help?

Need help?

Do you have a question about the SleepSafer Articulated and is the answer not in the manual?

Questions and answers

Related Manuals for SleepSafe Beds SleepSafer Articulated

Summary of Contents for SleepSafe Beds SleepSafer Articulated

  • Page 1   Thank you for purchasing the SleepSafe Safety Bed. With proper care, your bed will provide years of safe use. Carefully unpack all the contents of your bed and verify that all parts are included using the following pages. PLEASE CHECK ALL BOXES FOR HARDWARE BEFORE DISCARDING WARRANTY AND USER INFORMATION CAN BE FOUND AT THE END OF THESE INSTRUCTIONS TOOLS NEEDED:  ...
  • Page 2       (Included Items necessary for Bed Assembly) (Detailed Instructions for Assembling your Bed) (Extension/Topper Assembly Guide) (Detailed Instructions for Adjusting Safety Rails)               2  ...
  • Page 3         90mm Allen Bolt Alignment Pin ¾“ Hex Bolt Barrel Nut (Preinstalled on padded beds) Cardboard Spacer ¼” Allen Wrench 4mm Allen Wrench T15 Torx Wrench T10 Torx Wrench               3  ...
  • Page 4       Casters Electric Frame Mattress Headboard Footboard Front Panel Back Panels   Safety Rails             4  ...
  • Page 5   Prepare Side-Rails (insert Barrel Nuts): Align Barrel Nut Slot Perpendicular to the edge of the Side Rail. Side-Rails include the Front Panel and one of the Back Panels (the one with bronze inserts to attach to the frame).   Set Frame on Cardboard Spacers:  ...
  • Page 6       Attach Side Rails to Frame:   Attach Headboard and Footboard to Side Rails:               6  ...
  • Page 7       Attach Back Panel using Alignment Pins Note: Place the alignment pins in the holes at the top of the side panel (Fig. A) then lower the back panel onto the pins (Fig. B). After the back panel is in position, secure with 90mm Allen Bolts using the 4mm Allen Wrench as you did in the previous step.
  • Page 8       Install Mattress: Install Safety Rails:               8  ...
  • Page 9     90mm Allen Bolt 4mm Allen Wrench Curved End Piece Extension Side Rail Topper (Optional) Allen Screws (w/ Topper Only)               9  ...
  • Page 10     Set Extension Side Rails on Top of Legs: You will be assembling the Extension upside-down *Be sure Screens are facing in (as shown) Attach Extension Ends to Side Rails: Attach Ends with Curve Up (smiling) using the 90mm Allem Bolts and 4mm Allen Wrench provided:  ...
  • Page 11   Flip Extension Assembly over: Curve-down (frowning) If you don’t have a Topper, skip Step #4: Attach Topper: Using the Allen Screws included               11  ...
  • Page 12     Loosen Allen Bolts at Top of SleepSafer® Legs: Shown at “A” below: Loosening the Allen Bolts before adding the Extension allows for easier assembly and tighter fitting. If you have flip-up rails, be sure the proper legs match up before tightening all Allen Bolts.
  • Page 13   *Each Safety Rail is pre-adjusted at our factory, but it may become necessary to adjust the Safety Rail height over time. TOOLS NEEDED:       Rubber Mallet T10 Torx Wrench T15 Torx Wrench (or Hammer) (Provided) (Provided)    ...
  • Page 14   *Each Safety Rail is pre-adjusted at our factory, but it may become necessary to adjust the Safety Rail height over time. Determine if your Safety Rails need adjustment: With the safety rail in the locked position, check the spacing between the end of the  ...

  • Page 15: Blue Indicator Light

        Blue Indicator Light Head (Up/Down) Foot (Up/Down) Chair Function (Head & Foot) (Up/Down) Channel Switch Please keep handset in a secure location! The SleepSafe Articulated Remote operates using a cordless RF (Radio Frequency) handset (shown above). This means the handset does not need to be pointed at the bed to operate.

  • Page 16: Full One-Year Warranty

    Limited Five-Year Warranty: During the second through fifth years from the date of purchase, SleepSafe Beds will replace any part found to be defective. Purchaser shall pay any service and shipping costs related to the replacement of the defective part.
  • Page 17                   17  ...
