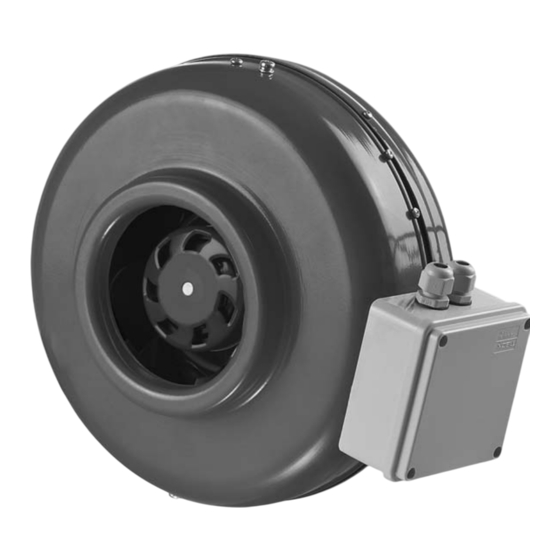

- Page 1 USER’S MANUAL VKM 100 VKM 160 VKM 250 Q VKM 100 Q VKMS 160 VKM 250 VKM 125 VKM 200 Q VKM 315 VKM 150 VKM 200 VKMS 315 VKMS 150 VKMS 200 Centrifugal inline fan...
- Page 2 CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................6 Mounting and set-up .................................. 6 Connection to power mains ..............................7 Control ......................................... 7 Technical maintenance ................................
- Page 3 Do not close or block the intake or extract vents in order to ensure the effi cient air fl ow. Do not sit on the unit and do not put objects on it. The information in this user’s manual was correct at the time of the document’s preparation. The Company reserves the right to modify the technical characteristics, design, or confi...
- Page 4 PURPOSE The VKM centrifugal fans are designed for ventilation of domestic, public and manufacturing premises heated during winter. The transported air temperature must be within the limits stated in the «Technical data» section. The fan is designed for horizontal or vertical mounting in an air duct and is used both for supply and exhaust ventilation. Transported air must not contain any fl...
- Page 5 The unit design is constantly being improved, thus some models, their wiring diagrams and terminal symbols may be slightly diff erent from those described in this manual. Overall and connecting dimensions Dimensions [mm] Model В В1 VKM 100 VKM 100 Q VKM 125 VKM 150 VKMS 150 VKM 160 VKMS 160 VKM 200 Q VKM 200...
- Page 6 DESIGN AND OPERATING PRINCIPLE The fan consists of the casing 1, the electric motor attached to the inner fi xing bracket 4, the cover 2 that is fi xed to the casing with screws 3 (the casing spigot diameter and the cover diameter are equal to the connected air duct diameter), the terminal box 5 that incorporates a terminal block and a capacitor and enables connection of the fan to single-phase power mains.
- Page 7 CONNECTION TO POWER MAINS DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER CAREFUL READING OF THE PRESENT USER’S MANUAL.
- Page 8 Operation algorithm of VKM Un fans Set the thermostat temperature threshold with a thermostat control knob 10. Switch on the fan, then set the fan speed with the speed control knob 9. The fan on/off light indicator 11 lights up. The controller switches the fan to the maximum speed (maximum air fl ow) as the temperature rises and crosses the thermostat setpoint.
- Page 9 Fanco exhaust product which has a defect due to a manufacturing or workmanship fault, subject to the following conditions; Warranty Period: The Fanco Warranty against Defects period is 2 years from the date of the invoice of the sale of the item. This period applies to consumer purchases only.
- Page 11 CERTIFICATE OF ACCEPTANCE Unit Type Centrifugal inline fan Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
- Page 12 UF05-3EN-02...
