- Page 1 Breeze Installation Manual Installation Manual...
- Page 3 Before installing your new Fanco exhaust fan, it is important that you read and follow these instructions prior to installation, even if you feel you are quite familiar with this type of product. Please keep this document handy for future reference as it contains servicing and maintenance requirements.
-
Page 4: Delivery Set

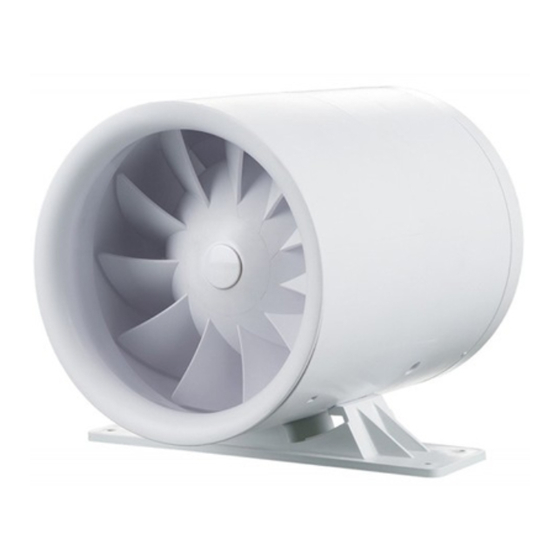

The VKO Quietline exhaust series described in this user’s manual is designed to supply and exhaust ventilation in rooms at a very low noise level and features anti vibration technology. DELIVERY SET 1. Fan: 1 piece 2. Screws and dowels: 4 pieces 3. - Page 5 MOUNTING The fan is designed for vertical or horizontal installation and connection to a round air duct of a matching diameter. ATTENTION - In case of vertical mounting the fan must be protected against ingress of rainfalls and condensation inside the fan. Fan installation with direct air discharge upwards is not allowed.
- Page 6 STEP 3 - Position the fan in your preferred installation location and mark the position of the holes on the fan where the screws will then be placed. STEP 4 – Drill the holes for the in compliance with the mounting seats on the fan casing and install the fan with screws.
-
Page 7: Wiring Diagram
STEP 5 – Unscrew and remove the fan cover to expose the wiring. STEP 6 – Connect the wire to the terminal box by following the wiring diagram. Install the retaining clamp back and secure it with the included screws. TERMINAL DESIGNATION KEYS AT WIRING DIAGRAMS: L - phase (only for 220-240 V power mains) - Page 8 STEP 7 – Cover the fan and secure the cover using a crosshead screwdriver. STEP 8 – Connect ducting / pipe work of a matching diameter to fan as required. STEP 9 – Turn on mains power.
-
Page 9: Maintenance
MAINTENANCE The product surfaces must be regularly cleaned from dirt and dust. Cut off power supply prior to any maintenance operations. Use a soft cloth or compressed air to remove external dust. To clean internal surfaces, remove the front cover. Thoroughly clean the internal surfaces every 6 months using a damp cloth soaked in mild detergent and water. - Page 12 reeze ation Manual...
