  • Page 1 Breeze Installation Manual Installation Manual...
  • Page 3 Before installing your new Fanco exhaust fan, it is important that you read and follow these instructions prior to installation, even if you feel you are quite familiar with this type of product. Please keep this document handy for future reference as it contains servicing and maintenance requirements.

  • Page 4: Delivery Set

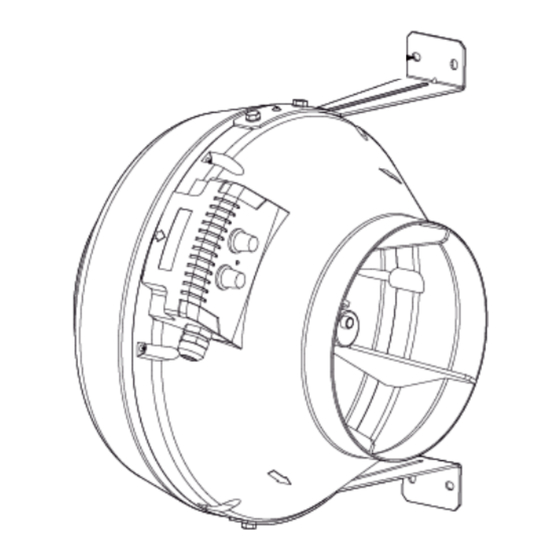

    The VK exhaust series described in this user’s manual is a centrifugal external wall or ceiling exhaust fan designed to supply and exhaust ventilation in rooms requiring high pressure and powerful airflow, perfect for commercial, office and other premises. DELIVERY SET 1.
  • Page 5 MOUNTING The fan is suitable both for horizontal or vertical mounting on the floor, on the wall or on the ceiling. Air motion in the system must be in compliance with the direction of the arrow on the fan casing. Install a hood on the intake spigot side in case of vertical fan installation. When installing the fan horizontally, provide a straight air duct section at least 1 m long on the intake spigot side.

  • Page 6: Wiring Diagram

    STEP 4 – Drill the holes for the dowels in the wall or ceiling and fix the fan with the screws. STEP 5 – Connect the air ducts of the corresponding diameter to the fan. STEP 6 – Connect the fan to single-phase power mains through the automatic circuit breaker integrated into the fixed power mains.

  • Page 7: Maintenance

    MAINTENANCE The product surfaces must be regularly cleaned from dirt and dust. Cut off power supply prior to any maintenance operations. To clean the fan, remove the ducting on either side of the fan, the self-tapping screws and remove the fan cover. Use a soft cloth or compressed air to remove external dust.
  • Page 8 reeze ation Manual...
