INSTALLING THE WATER BLOCK FOR RTX 2080 / RTX 2080 TI GRAPHIC CARD

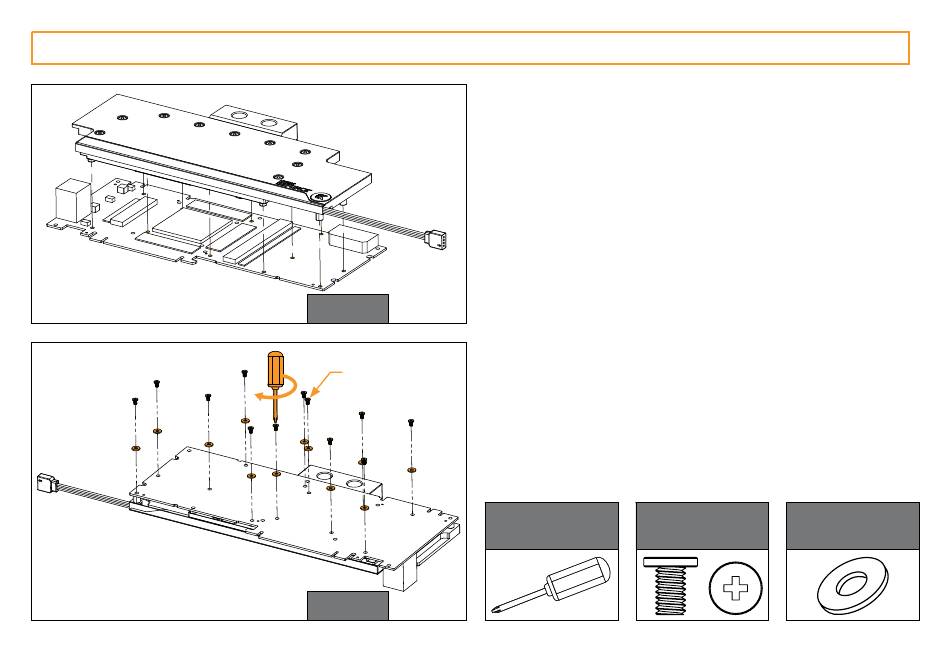

STEP 1
PLACING THE BLOCK ON TO THE GRAPHICS CARD
Carefully position the water block with preinstalled standoffs on to
the graphics card. During this process please make sure you align
mounting holes on the PCB with holes on the water block (same
applies for other tops). Also pay attention not to use too much
force by pressing the block down to the PCB. Chip dies are prone to
cracking. Procedure is the same for all Full Cover water blocks.
STEP 1
STEP 2
ATTACHING THE BLOCK TO THE GRAPHIC CARD
M2,5x6 AX1
Use a Philips screwdriver screw with the enclosed M2,5x4 AX1
screws. EKWB recommends users to start tightening the screws
around the GPU core and continue outwards. Always use a plastic
washer under each and every screw! If the washer is already present
on the circuit board (usually around the four GPU core screw holes)
there is no need for additional washer.
In this step you will need:
STEP 2
- 7 -
Phillips-head M 2.5x4 AX1
screwdriver 12 pcs
M 2.5 PVC washer
12 pcs
