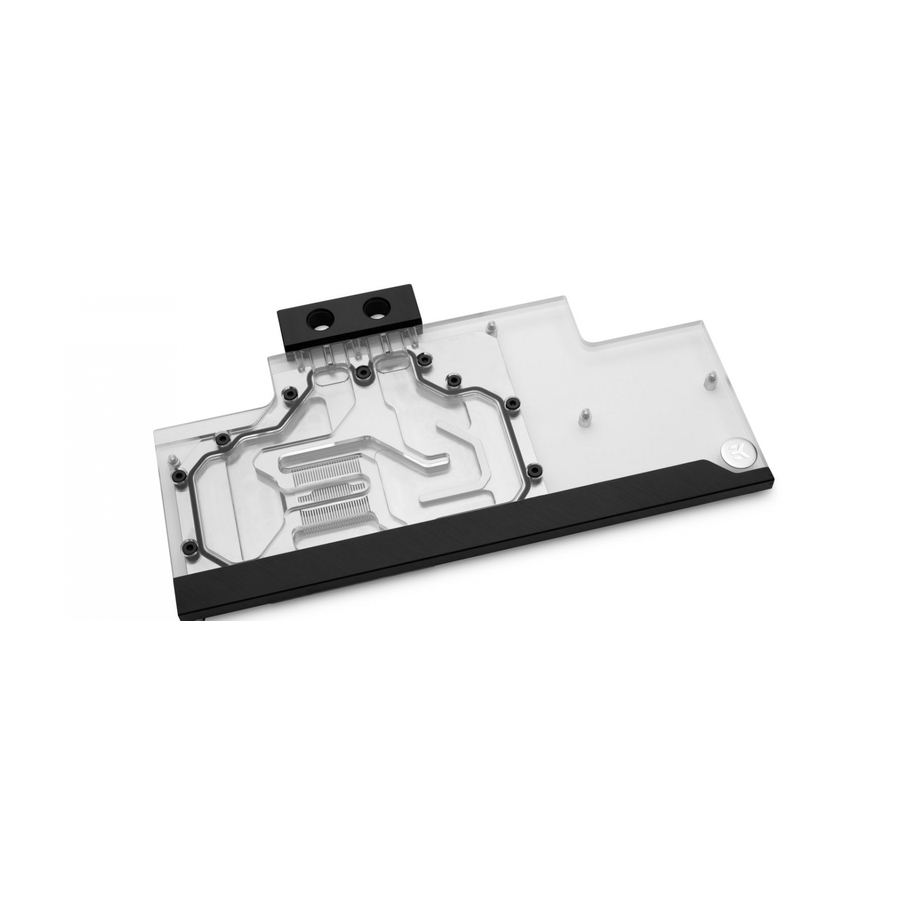

ekwb EK-FC TRIO RTX 2080 Ti Classic Installation Manual
Gpu water block
Hide thumbs
Also See for EK-FC TRIO RTX 2080 Ti Classic:
- Installation manual (7 pages) ,
- Installation manual (3 pages) ,
- Installation and mounting manuals (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ekwb EK-FC TRIO RTX 2080 Ti Classic
Summary of Contents for ekwb EK-FC TRIO RTX 2080 Ti Classic
- Page 1 EK-FC TRIO RTX 2080 Ti Classic GPU WATER BLOCK INSTALLATION MANUAL...
- Page 2 The following instructions are to change without notice. Please visit our web side www.ekwb.com for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
-
Page 3: Table Of Contents
TABLE OF CONTENT PREPARING YOUR GRAPHICS CARD INSTALLING THE WATER BLOCK CHECKING FOR CONTACTS INSTALLATION OF FITTINGS AND TUBING INSERTING THE CARD IN YOUR PC CASE REQUIRED TOOLS CONNECTING THE RGB LED STRIP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Preparing Your Graphics Card
PREPARING YOUR GRAPHICS CARD STEP 1 REMOVING FACTORY PROVIDED BACKPLATE Remove all encircled screws using Phillips screwdriver. All heat sink assembly screws should be removed, including self-adhesive washers washers on the both sides of the PCB(if present). STEP 1 STEP 2 REMOVING STOCK COOLER Remove all encircled screws using Phillips screwdriver. - Page 5 Apply thermal compound: lightly coat GPU chip with enclosed EK- TIM Ectotherm thermal grease. EKWB recommends to apply thermal grease in cross form for best performance. STEP 4...
- Page 6 STEP 5 CUTTING THERMAL PADS 1: Thermal pad E – 0.5mm (for memory IC): Your block comes with the thermal pads, some of which are already pre-cut. Others have to be cut to smaller chunks in order to cover all the VRM components such as MOSFETs, IC memory and coils.
-
Page 7: Installing The Water Block
ATTACHING THE BLOCK TO THE GRAPHIC CARD M2,5x4 AX1 Use a Phillips screwdriver screw with the enclosed M2.5 x 4 AX1 screws. EKWB recommends users to start tightening the screws Plastic washer around the GPU core and continue outwards. Always use a plastic... -
Page 8: Checking For Contacts
Screw in the two G1/4 threaded male fittings. Attach the liquid cooling tubes and connect the water-block(s) into the cooling circuit. Tubing EKWB recommends using EK fittings with the EK-Vector series water blocks. To ensure that the tubes are securely attached to the EK Fitting barb/fittings, please use hose clamps or an appropriate substitute. -
Page 9: Inserting The Card In Your Pc Case
INSERTING THE CARD IN YOUR PC CASE Carefully lift your graphics card with installed block and insert it in your PC’s motherboard PCI-express expansion slot. Please bear in mind that your graphics card is probably heavier than when it was equipped with original heat sink fan assembly. -
Page 10: Connecting The Rgb Led Strip
CONNECTING THE RGB LED STRIP STEP 1 Plug the 4-pin connector from Water block’s RGB LED light to the RGB_HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +12V G R B. Please ensure that the arrow indicated on the connector is plugged into the +12V line as indicated on your motherboard. -
Page 11: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
