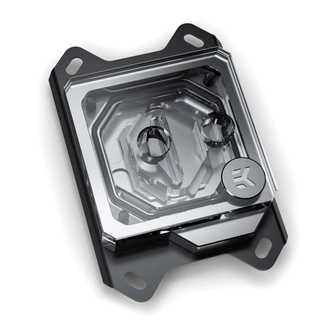

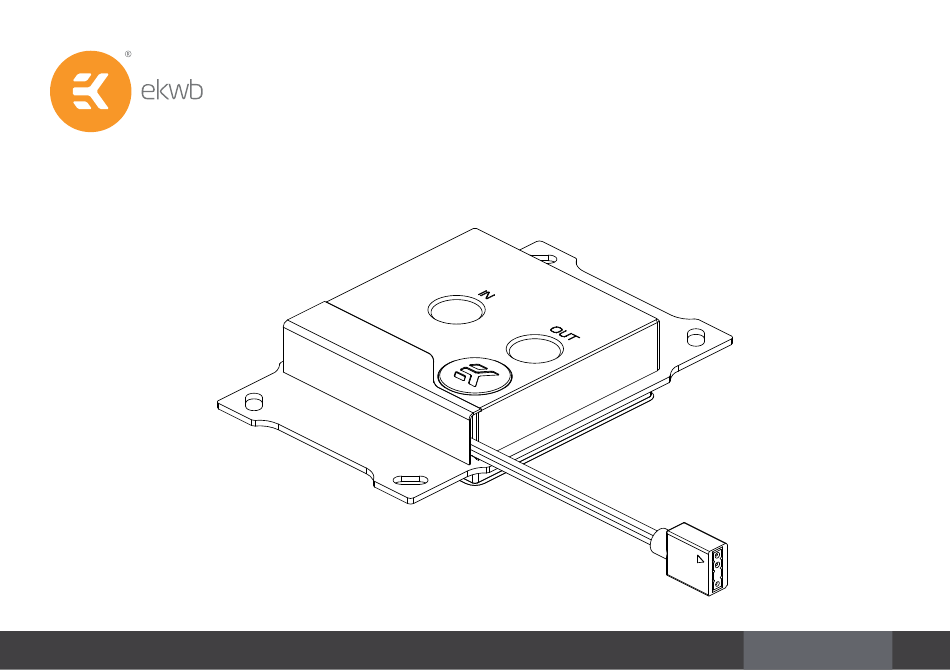

- Page 1 EK-Classic CPU Water Block AM4 D-RGB CPU WATER BLOCK USER GUIDE 1st Revision, June 9th 2020...
- Page 2 The following instructions are subject to change without notice. Please visit our website at www.ekwb.com for updates. Before the installation of this product, please read important notice, disclosure, and warranty conditions printed on the back of the box.
-
Page 3: Table Of Contents
TABLE OF CONTENT GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY WHAT IS ENCLOSED INSTALLING THE WATER BLOCK AMX AND FMX SOCKET MOTHERBOARDS CONNECTING THE D-RGB LED STRIP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: General Information On Water Block Compatibility
GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY This CPU Liquid cooling unit is supporting the following CPU sockets: - AMD® AMx - AMD® FMx EK-Supremacy Classic D-RGB - AMD Nickel + Plexi WHAT IS ENCLOSED - EK-Supremacy Classic D-RGB - AMD Nickel + Plexi water block. - Mounting Kit Classic –... -
Page 5: Installing The Water Block
INSTALLING THE WATER BLOCK AMx AND FMx SOCKET MOTHERBOARDS UNC 6-32 Screws Hold-down STEP 1 clamps Removing the Original Hold-Down Clamps Using a Philips head screwdriver, remove the four UNC 6-32 screws securing the original plastic hold-down clamps around the socket (as shown in the picture). - Page 6 STEP 3 Cleaning the CPU: Wipe the CPU’s contact surface (by using non– abrasive cloth or Q-tip, as shown on sample photo). Applying thermal compound: EK recommends blob or line method of applying the enclosed thermal com-pound to the CPU heat spreader (IHS) - see sample photo on right.
- Page 7 STEP 5 INSTALLING THE FITTINGS Tighten the fitting barbs in clockwise direction until the gasket underneath is compressed. The installation of the CPU water block is now complete. STC Classic Fitting With EK-Supremacy Classic series water blocks, it is mandatory to use the port closest to the center of the water block as the INLET port.
-
Page 8: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP STEP 1 Connect the 3-pin D-RGB LED connector from the Water block’s LED light into the D-RGB (Addressable) HEADER on the motherboard. The LEDs will work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground. -
Page 9: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
