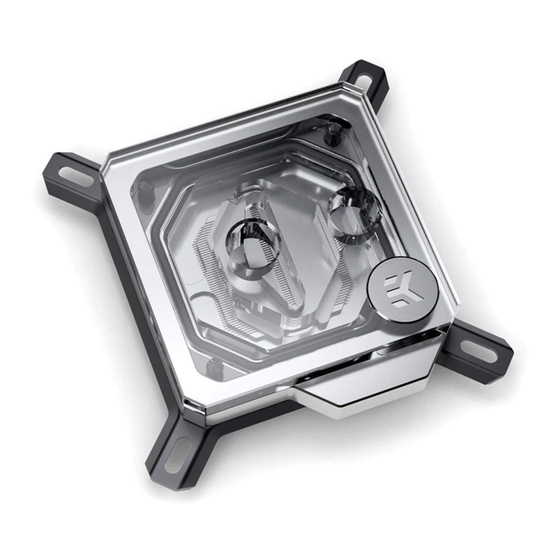

Velocity
CPU WATER BLOCK
USER GUIDE
2nd Revision, October 18th 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Velocity and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ekwb Velocity

Summary of Contents for ekwb Velocity

  • Page 1 Velocity CPU WATER BLOCK USER GUIDE 2nd Revision, October 18th 2018...
  • Page 2 The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

  • Page 3: Table Of Contents

    TABLE OF CONTENT GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY SUPPORT AND SERVICE WHAT IS ENCLOSED SOCIAL MEDIA QUICK INSTALLATION GUIDE REPLACING THE JET PLATE PROCEDURE INSTALLING THE WATER BLOCK LGA-2011(-3) / 2066 SOCKET MOTHERBOARDS LGA-115X SOCKET MOTHERBOARDS CONNECTING THE RGB LED STRIP (option) CONNECTING THE RGB LED STRIP CONNECTING THE D-RGB LED STRIP - 3 -...

  • Page 4: General Information On Water Block Compatibility

    - Intel® Socket LGA-115x - Intel® Socket LGA-2011(-3) / 2066 WHAT IS ENCLOSED The following items are enclosed with each EK-Velocity water block: - Allen (hex) key 2.5mm - EK-Velocity universal CPU water block. - Additional Inserts and Jet plates: - PreciseMount universal CPU mounting mechanism: •...
  • Page 5 REPLACING THE JET PLATE PROCEDURE STEP 1 Water block top Please observe the table below to determine the optimal combina- tion of insert and jet plate for your type of socket: Socket Optimal Jet Frame LGA-115x LGA-2011 LGA-2066 JET Plate Gasket LED light is not included in all versions.

  • Page 6: Installing The Water Block

    STEP 2 Unscrew the four M4 screws in counter-clock-wise direction from the bottom of the water block using enclosed 2,5mm Allen key to release the assembly, consisting of water block top and jet plate. Upon replacing the jet plate please reassemble the water block as shown on the in STEP 1 and STEP 2 pictures.
  • Page 7 STEP 2 Cleaning the CPU: Wipe the CPU’s contact surface (by using non– abrasive cloth or Q-tip, as shown on sample photo). Non-abrasive Applying thermal compound: On a clean IHS, apply a line of cloth thermal compound and spread it over the whole CPU heat spreader (IHS) with a credit card or equivalent - see sample photo on left.

  • Page 8: Lga-115X Socket Motherboards

    Outlet port With EK-Velocity series water blocks it is mandatory to use the port that is nearest to the center of the water block as INLET port. Mixing the ports may result in less than ideal thermal performance of the water block.
  • Page 9 STEP 3 Install backplate rubber gasket and place metal backplate for Intel® LGA-115x socket to the back of your motherboard RIBBED SIDE Metal UP! (facing away from the motherboard) Align the holes on the Backplate motherboard with holes on rubber gasket and backplate. Make sure to orientate the rubber gasket to fit past the CPU socket ILM backplate.

  • Page 10: Connecting The Rgb Led Strip (Option)

    CONNECTING THE RGB LED STRIP (option) CONNECTING THE RGB LED STRIP STEP 1 Plug the 4-pin connector from Water block’s and Fan’s RGB LED light to the RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +12V G R B. Please ensure that the arrow indicated on the connector is plugged into the +12V line as indicated on your motherboard.

  • Page 11: Connecting The D-Rgb Led Strip

    CONNECTING THE D-RGB LED STRIP STEP 1 Plug the 4-pin connector from Water block’s D-RGB LED light to the DRGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, empty, Ground. Please ensure that the arrow indicated on the connector is D-RGB Header plugged into the +5V line as indicated on your motherboard.

  • Page 12: Support And Service

    SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
