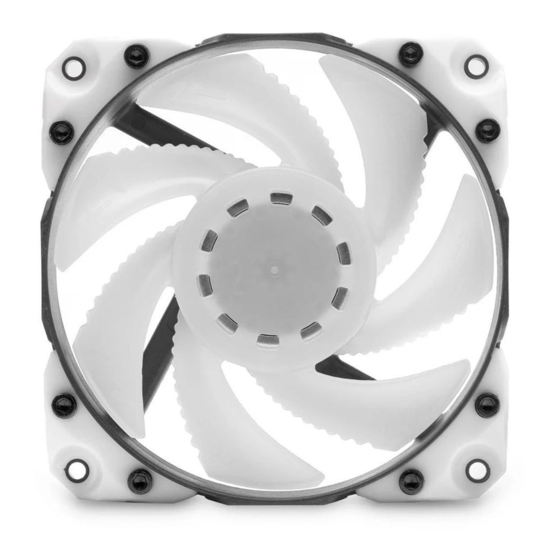

- Page 1 EK-Vardar X3M 120ER USER GUIDE...
- Page 2 This product is intended for installation by expert users only. Please consult with a qualified technician. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products or their installation.
- Page 3 TABLE OF CONTENT INSTALLING THE FAN ON THE RADIATOR INSTALLING THE FAN DIRECTLY REPLACING THE RUBBER CORNERS (DAMPERS) REPLACING THE RUBBER CORNERS (DAMPERS) SUPPORT AND SERVICE SOCIAL MEDIA - 3 -...
- Page 4 INSTALLING THE FAN ON THE RADIATOR Take the four encosed UNC 6-32 x 10 (10 mm long) screws for each EK-Vardar X3M 120ER fan and screw them in. The number of enclosed screws depends on the radiator model. Use the enclosed Allen key to tighten the UNC 6-32 x 10 Screw screws in a clockwise direction.
- Page 5 REPLACING THE RUBBER CORNERS (DAMPERS) STEP 1 First unscrew pre-installed M4 screws and thumb nuts using Allen M4 Screw key (as shown on the photo). Carefully take off the rubber corner and save the screws and nuts for later use. M4 Thumb Nut STEP 1 STEP 2...
- Page 6 CONNECTING THE FANS STEP 1 To connect the fans you might need EK-Cable Y splitter. Connect the female connectors from the fans with male connectors on the fan splitter cable. STEP 1 STEP 2 Connect the female EK-Cable Y splitter connector to the male connector header located on the motherboard.
- Page 7 SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks discord.gg/zesFRJB...
