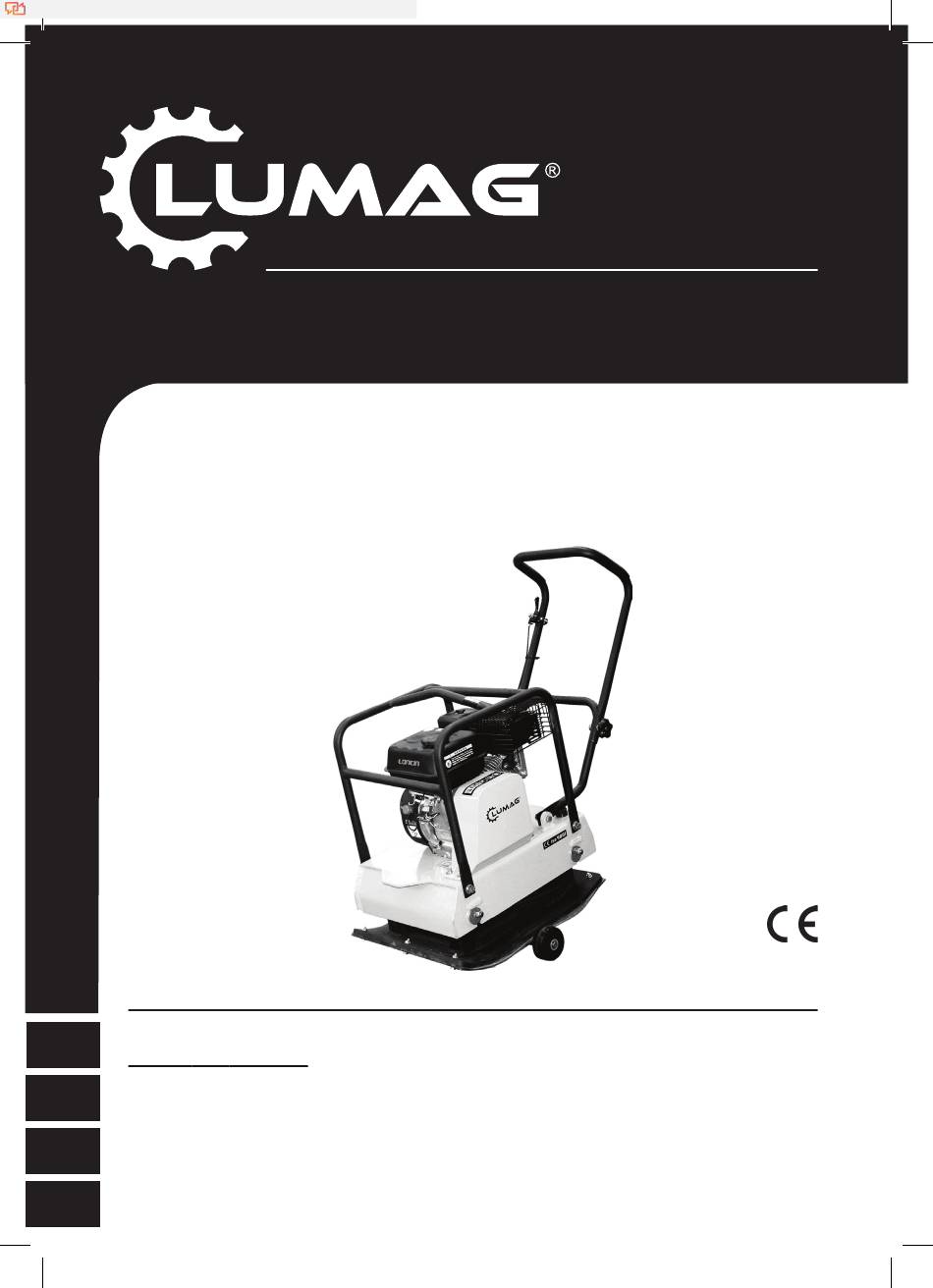

- Page 1 Translated from German to English - www.onlinedoctranslator.com RP-1400PRO Art. No.: RP1400PRO original operating instructions vibrating plate RP-1400PRO www.lumag-maschinen.de...
- Page 2 When delivered, the device contains no engine oil or fuel. Engine oil must be topped up before first use. The graphics, images, texts and layouts created by LUMAG GmbH are subject to copyright and the laws protecting intellectual property. Reproduction or use of such graphics, images, texts and layouts in other electronic or printed publications is not permitted without the express consent of LUMAG GmbH.
- Page 3 VIBRATORY PLATE RP-1400PRO...
- Page 6 10-15 mm...
- Page 7 CONTENTS CONTENTS 1. INTRODUCTION 2. INTENDED USE 3. SAFETY INSTRUCTIONS 3.1 Operational safety 3.2 Safety when using combustion engines 3.3 Service security 3.4 Warning and information symbols used 4. CONTROLS 5. MACHINE TRANSPORT 5.1 Mechanical lifting 5.2 Moving the machine on the ground 6.
- Page 8 INTENDED USE SAFETY INSTRUCTIONS 1. INTRODUCTION This manual contains information and procedures for the safe operation and maintenance of this model. For your own safety and to prevent injury, carefully read, understand, and follow the safety instructions in this manual at all times. 2.
- Page 9 SAFETY INSTRUCTIONS 3.1 Operational safety Familiarize yourself with the machine. Proper training is a prerequisite for working safely with this machine. Incorrect operation or operation by untrained personnel can be dangerous. Read the operating instructions for this machine and the engine manual carefully and familiarize yourself with the controls.
- Page 10 SAFETY INSTRUCTIONS • ALWAYSRead the operating instructions before operating the appliance. Instructions on dangers, warnings and precautions must be strictly observed in order to minimize the risk of personal injury, property damage and incorrect servicing. 3.2 Safety when using combustion engines DANGER Internal combustion engines pose a particular danger during operation and when refueling.
- Page 11 SYMBOLS USED substitute. • The stickers on the machine warn of dangers. The machineALWAYSKeep clean and replace damaged stickers if necessary. 3.4 Warning and information symbols used A NOTICE The machine is delivered without engine oil. The first thing to do before using it for the first time is to fill it with engine oil.
- Page 12 SYMBOLS USED CONTROLS CAUTION! * lifting point / binding point THROTTLE LEVER Turtle means SLOW or IDLE Rabbit means FULL SPEED or FAST MAX. MIN. NAMEPLATE Equipped with model name, year of manufacture and serial number. Please always state this information when ordering spare parts or for service information.
- Page 13 CONTROLS 4. CONTROLS vibrating plate A) Foldable guide bar B) Drive belt / belt guard C) Protective frame D) Base plate E) pathogens F) Console G) Mounting screw for motor H) Drive motor I) Suspension J) Throttle control lever Motor ignition switch recoil starter recoil starter...
- Page 14 MACHINE TRANSPORT 5. MACHINE TRANSPORT Before transporting the machine or storing it indoors, allow the engine to cool down to avoid burns and the risk of fire. Furthermore, it must be ensured that persons are not endangered by the machine tipping over or slipping or by machine parts flying up or down.
- Page 15 STORAGE 6. STORAGE Storing the vibrating plate for a month or longer: • Remove dirt and stones from the base plate (D). • Clean the air filter or replace it if it is very dirty or damaged. • Clean cylinder head fins. •...
- Page 16 COMMISSIONING 7. COMMISSIONING DANGER Read the safety instructions carefully (see “Safety instructions”). 7.1 Recommended fuel This engine requires only regular unleaded gasoline with a research octane rating of 91 or higher. Use only fresh, clean fuel. Water or impurities in the gasoline will damage the fuel system.
- Page 17 COMMISSIONING 7.3 Starting the engine (Fig. 5 – 10) • Slide the fuel tap (5) to the right to open it. • When cold, move the choke lever (4) to the left to “CLOSE”. • When warm, leave the choke lever (4) set to the right to “OPEN”. •...
- Page 18 COMMISSIONING MAINTENANCE • Very dry soil will create a lot of dust when the vibrating plate is working. Adding moisture can improve compaction and reduce air filter maintenance. A NOTICE Do not use the plate compactor on concrete or hard or tightly compacted ground surfaces. In such cases, the device will begin to impact instead of vibrating, causing damage to the plate and the motor.
- Page 19 MAINTENANCE 8.1 Maintenance plan Please carry out and adhere to these maintenance tasks regularly to avoid damage and to ensure that the safety devices function properly. Failure to do so may result in an accident! Each After All 2 Every Daily weeks month or...
- Page 20 MAINTENANCE 8.2 Oil change oil level check (Fig. 14) Check the engine oil level with the engine stopped and level. • Remove the oil filler cap screw with dipstick (13) and wipe clean. • Reinsert the dipstick into the oil filler neck without screwing it in, then remove it to check the oil level.
- Page 21 MAINTENANCE wipe off. • Unscrew the inner wing nut and remove the air filter elements. • Carefully remove the foam filter insert (16) from the paper filter insert (15). Check both parts for damage. Replace any damaged inserts. • Clean the foam filter insert (16) in warm water and a mild soap solution. Rinse thoroughly with clean water and allow to dry well.
- Page 22 MAINTENANCE • Place the spark plug connector onto the spark plug. A NOTICE A loose spark plug can overheat and damage the engine. And over-tightening the spark plug can damage the threads in the cylinder head. 8.6 Adjusting the engine speed (Fig. 19) A NOTICE Operating the disk at a higher speed than recommended in the "Technical Data"...
- Page 23 MAINTENANCE 8.8 Lubrication of the exciter (Fig. 21) Check oil level: Check the oil level in the exciter every 50 hours of operation. • Place the plate horizontally. • Remove the belt guard (B) and remove the drive belt (see section Adjusting the Drive Belt).
- Page 24 TROUBLESHOOTING 9. TROUBLESHOOTING Caused remedy Disturbance Gas regulation incorrectly Install gas regulation correctly. installed. Ground is too wet, the plate Allow drying time. Pre-feed speed is too low. The gets stuck. disk does not reach maximum Drive belt too loose, slips on Adjust or replace drive belt.
- Page 25 TECHNICAL DATA 10. TECHNICAL DATA Model: RP-1400PRO drive motor: 1-cylinder 4-stroke OHV petrol engine Rated power P1/P2: 4.8/4.1 3600 Engine speed: 1/min Fuel: unleaded regular gasoline Fuel tank capacity: SAE 10W-30 or 10W-40 Engine oil: ~ 0.6 Engine oil content:...
- Page 26 LUMAG guarantees impeccable quality and, without prejudice to the statutory warranty, provides a guarantee in the event of material or manufacturing defects. The guarantee for LUMAG products is 24 months for exclusively private use, and 12 months for commercial or professional use or rental, from the date of delivery.
- Page 27 In accordance with the provisions of the EC directives - Electromagnetic Compatibility 2004/108/EC - Machinery Directive 2006/42/EC - Outdoor Directive 2000/14/EC - 2005/88/EC, Annex VI the company explains: LUMAG GmbH Robert-Bosch-Ring 3 D-84375 Kirchdorf am Inn 0049 / (0)8571 / 92 556-0 Telephone:...
- Page 28 COMPONENTS OF THE MACHINE 13. COMPONENTS OF THE MACHINE machine unit...
- Page 29 COMPONENTS OF THE MACHINE pathogens...
- Page 30 ACCESORIES 14. ACCESSORIES Designation Description Order No. rubber mat, 5RP1400PROGM 40 47424 04876 4 610 / 460 / 25 mm transparent 5RR1400PROFW 40 47424 04877 1 Ø 95 mm wheelset...
- Page 32 LUMAG GmbH Robert-Bosch-Ring 3 D-84375 Kirchdorf am Inn Phone: + 49 (0)85 71 / 92 556 - 0 Fax: + 49 (0)85 71 / 92 556 - 19 www.lumag-maschinen.de Status: 08/2015 - RP1400PRO_v1...
