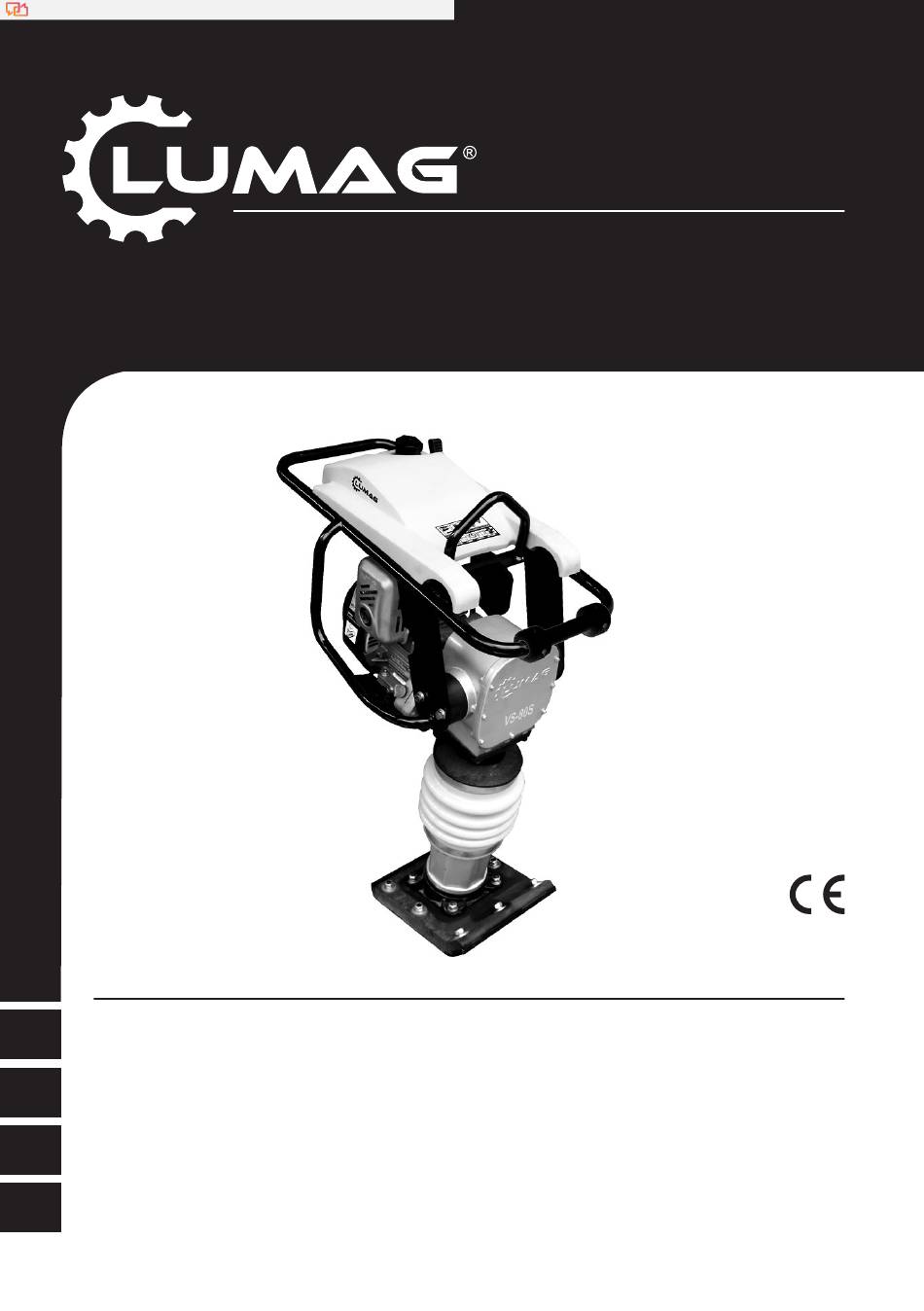

- Page 1 Translated from German to English - www.onlinedoctranslator.com VS-80S Art. No.: VS80S operating instructions vibratory rammer VS-80S www.lumag-maschinen.com...
- Page 2 Graphics, images, texts and layouts created by LVG Hartham GmbH are subject to copyright and the laws protecting intellectual property. Reproduction or use of such graphics, images, texts and layouts in other electronic or printed publications is not permitted without the express consent of LVG Hartham GmbH. Type and design subject to change.
-
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS DANGER!Before assembly and before commissioning, read the entire text of the operating instructions. Use these instructions to familiarize yourself with the device, its correct use and the safety instructions. A NOTICE According to the applicable product liability law, the manufacturer of this device is not liable for damages caused to or by this device in the following cases: - improper handling,... -
Page 4: Table Of Contents
CONTENTS 1. Introduction 2. Intended use 3. Safety instructions 3.1 General safety instructions 3.2 Operational safety 3.3 Safety when using combustion engines 3.4 Service security 3.5 Residual risks and protective measures 3.6 Behavior in an emergency 3.7 Warning and information symbols used 4. -
Page 5: Introduction
INTENDED USE SAFETY INSTRUCTIONS 1. INTRODUCTION This manual contains information and procedures for the safe operation and maintenance of this model. For your own safety and to prevent injury, carefully read, understand, and follow the safety instructions in this manual at all times. 2. -
Page 6: General Safety Instructions
SAFETY INSTRUCTIONS A NOTICE Failure to follow these instructions may result in damage to the engine or other property. In addition, the operating instructions contain other important text passages marked with the word DANGERare marked. 3.1 General safety instructions 1. Keep your work area tidy - Disorder in the work area can lead to accidents. - Page 7 SAFETY INSTRUCTIONS - Ensure you have a secure footing and keep your balance at all times. 10. Do not leave any tool keys in the - Before switching on, check that keys and adjustment tools are removed. 11. Be attentive - Be careful what you are doing.
-
Page 8: Operational Safety
SAFETY INSTRUCTIONS must only be carried out by an authorized service center or our service team using original spare parts; otherwise, accidents may occur for the user. 3.2 Operational safety WARNING Children and young people under the age of 18 are not allowed to operate the machine. Young people aged 16 and over may use the machine as part of a training course and under the supervision of a trained person. -
Page 9: Safety When Using Combustion Engines
SAFETY INSTRUCTIONS • ALWAYSClose the fuel tap when the machine is not in use. • NEVERuse the choke lever to stop the engine. • ALWAYSGuide the vibratory rammer in such a way that the operator is not crushed between the device and a solid object. •... -
Page 10: Service Security
SAFETY INSTRUCTIONS 3.4 Service security WARNING Improper maintenance or failure to observe or resolve a problem can become a source of danger during operation. Only operate machines that have been regularly and correctly maintained. This is the only way you can be sure that you will operate your device safely, economically and without problems. - Page 11 SAFETY INSTRUCTIONS → Wear prescribed protective equipment. Human behavior, misconduct → Always be fully concentrated on all work. residual risk - Can never be ruled out. Electrical Residual Hazards Electrical contact Touching the spark plug connector while the engine is running may result in an electric shock.
-
Page 12: Behavior In An Emergency
SYMBOLS USED 3.6 Behavior in an emergency If an accident occurs, initiate the necessary first aid measures and request qualified medical assistance as quickly as possible. When requesting assistance, please provide the following information: - where it happened - what happened - how many injured - what type of injury - who reports! - Page 13 SYMBOLS USED other people. * Always wear a helmet, eye and hearing protection when operating the machine. * Wear safety shoes with steel toe caps. * Wear protective gloves. * Hold handle as shown for optimum control and performance with minimal hand/arm vibration.
- Page 14 VS-80S...
-
Page 15: Scope Of Delivery
SCOPE OF DELIVERY CONTROLS 4. SCOPE OF DELIVERY Vibration rammer with petrol engine transport wheels (N) 5. CONTROLS vibratory rammer (Fig. 1) A Throttle control lever on the guide bar Guide bar protective frame drive motor stamper base sight glass for oil stamping foot tamper top roll bar... - Page 16 TRANSPORT 6. TRANSPORT WARNING Before transporting the machine or storing it indoors, allow the engine to cool down to avoid burns and the risk of fire. If the machine is moved to a different location, even for a short distance, the engine must be turned off. It must also be ensured that people are not endangered by the machine tipping over or slipping or by machine parts flying up or down.
-
Page 17: Storage
TRANSPORT DANGER After transporting the machine in a horizontal position, it must be put back upright to allow the oil to flow back to the engine. This process can take up to 5 minutes until the oil level is restored to normal. 6.1. -
Page 18: Commissioning
TRANSPORT COMMISSIONING DANGER If possible, store the machine in an upright position and secure it against tipping over. If this is not possible, lay the rammer down as shown in the illustration on page 16. If this precaution is not taken, engine oil may enter the cylinder, combustion chamber or air filter, causing starting difficulties. -
Page 19: Lubrication Of The Engine
COMMISSIONING 7.2 Lubrication of the engine A NOTICE The engine oil must be topped up before the first use! Incorrect oil filling can lead to irreparable damage to the engine. In this case, the seller and manufacturer will not provide any warranty. -
Page 20: Lubrication Of The Tamping System
COMMISSIONING 7.4 Before commissioning Place the vibratory rammer upright on a firm, level surface to ensure proper lubrication of the motor. Before starting, check: • the engine oil level • lubrication of the tamping system • the fuel level – the tank should be at least half full •... - Page 21 COMMISSIONING recoil starter throttle/idle ignition switch "ON" choke lever "OPEN" throttle lever "OPEN" → Warm start 1. Fuel tap,side of theOpen the fuel tank (L). 2. Turn the choke lever (10) to the right to “OPEN”. 3. Push the throttle control lever (A) to idle, in the “turtle” direction. 4.
-
Page 22: Turning Off The Engine
COMMISSIONING DANGER! Only open the choke when the throttle is at idle, otherwise the rammer may start moving. NEVER increase the throttle from the rest position to full speed. A NOTICE When using the engine for the first time or on engines that have not been used for a long time, the starter rope may need to be pulled several times to get fuel to the carburetor. -
Page 23: Proper Operation
COMMISSIONING 7.7 Proper operation Keep the vibratory rammer clean and dry. Avoid empty shots. When pushing the material away or lifting the rammer, never let it run at full throttle. For optimal control, hold the handle as shown. If the rammer tips over on its side, lay it down as shown and immediately switch off the engine (set the ignition switch (9) to “OFF”). -
Page 24: Maintenance
COMMISSIONING MAINTENANCE • The tamping foot must always be parallel to the ground (d) to avoid extreme wear of the plate. • Soil that is too moist can prevent good compaction. Allow the soil to dry out a little before compacting. -
Page 25: Maintenance Plan
MAINTENANCE 8.1 Maintenance plan Please follow this machine and engine maintenance table! For further information please refer to the engine manual provided. Each All 2 Every Daily Every week weeks month or year or Task or all before every 100 every 300 25 hours Operation... -
Page 26: Engine Oil
MAINTENANCE 8.2 Engine oil oil level check Check the engine oil level with the engine stopped and level. • Remove the oil plug screw with dipstick (6) and wipe clean. • Reinsert the dipstick into the oil filler neck without screwing it in, then remove it to check the oil level. -
Page 27: Air Filter
MAINTENANCE ATTENTION! Used engine oil must be disposed of in an environmentally friendly manner. We recommend that you hand over used oil in a closed container to a recycling center or a collection point for used oil. Do not pour used oil into the garbage can, into the sewer system, into a drain or onto the ground. -
Page 28: Cleaning The Settling Cup
MAINTENANCE 8.4 Cleaning the settling cup • Turn off the fuel tap. • Unscrew the separation cup (f) and radial sealing ring (e) and clean thoroughly in non-flammable solvent and allow to dry. • Screw both parts back on. • Open the fuel tap and check for leaks. cleaning the heel cup 8.5 Spark plug WARNING... -
Page 29: Adjusting The Engine Speed
MAINTENANCE 8.6 Adjusting the engine speed A NOTICE Operating the rammer at a higher speed than recommended in the “Technical Data” can cause damage to the tamping foot and engine. • Set the throttle lever (A) to “IDLE”. • Start the engine and let it warm up for one minute. •... -
Page 30: Stamping Foot
MAINTENANCE Change oil: Change the oil in the ramming system after the first 50 hours of operation, then every 300 hours of operation or every 6 months. Drain the oil and replace it with approximately 0.8 liters of clean SAE 10W-30 oil. •... -
Page 31: Changing The Tamping Foot
MAINTENANCE NOTE ON ENVIRONMENTAL PROTECTION 8.9 Changing the tamping foot On new machines or after replacing a tamping foot, check and tighten the fastening nuts (h) after the first 5 hours of operation. Check weekly thereafter. 1. Stop the tamper. (See section ' Turn off the engine ') 2. -
Page 32: Troubleshooting
TROUBLESHOOTING 10. TROUBLESHOOTING Before any troubleshooting ■ Switch off the engine ■ Wait for the machine to stop ■ Remove the spark plug connector Caused remedy Disturbance Unclean compaction pattern. Paddle foot worn out. Change the stamping foot. Worn seals, radial sealing Contact your dealer. -
Page 33: Technical Data
TECHNICAL DATA 11. TECHNICAL DATA Model: VS-0S type drive motor LC165F-1H 1-cylinder 4-stroke OHV petrol engine recoil starter starting system displacement rated power 3600 engine speed 1/min fuel Unleaded regular gasoline RON95 fuel tank capacity SAE 10W-30 / SAE 10W-40 engine oil variety ~ 0.5... -
Page 34: Warranty And Customer Service
The guarantee for LUMAG products is 24 months for exclusively private use, and 12 months from the date of delivery for commercial or professional use or rental. Warranty claims must always be proven by the buyer using the original purchase receipt. - Page 35 CUSTOMER SERVICE Normal wear and tear, natural aging, improper use, and cleaning, maintenance and adjustment work are generally not covered by the guarantee (e.g. cutting device, air and fuel filters, spark plugs and recoil starters, drive belts, etc.). Due to operation and use, some components are subject to normal wear and tear, even when used as intended, and may need to be replaced in good time.
-
Page 36: Ec Declaration Of Conformity
Fax: 0049 / (0)8571 / 92 556-19 that the product vibratory rammer Device type: VS-80S Device type: complies with the essential protection requirements of the above-mentioned EC Directives. EN 500-1:2006+A1 EN 500-4:2006+A1 Person authorized to compile the technical documentation: Gabriele Denk The declaration of conformity refers only to the machinery in the condition in which it was placed on the market;... -
Page 37: Components Of The Machine
COMPONENTS OF THE MACHINE 14. COMPONENTS OF THE MACHINE STAMPING BASE... - Page 38 COMPONENTS OF THE MACHINE STAMPER TOP Throttle control lever on Device...
- Page 39 COMPONENTS OF THE MACHINE PROTECTIVE FRAME, TANK and ENGINE COVER...
- Page 40 LVG Hartham GmbH Robert-Bosch-Ring 3 D-84375 Kirchdorf am Inn Telephone: +49 (0)85 71 / 92 556 - 0 Fax: + 49 (0)85 71 / 92 556 - 19...
