Summary of Contents for KaVo MULTIflex LED coupling 465 LED

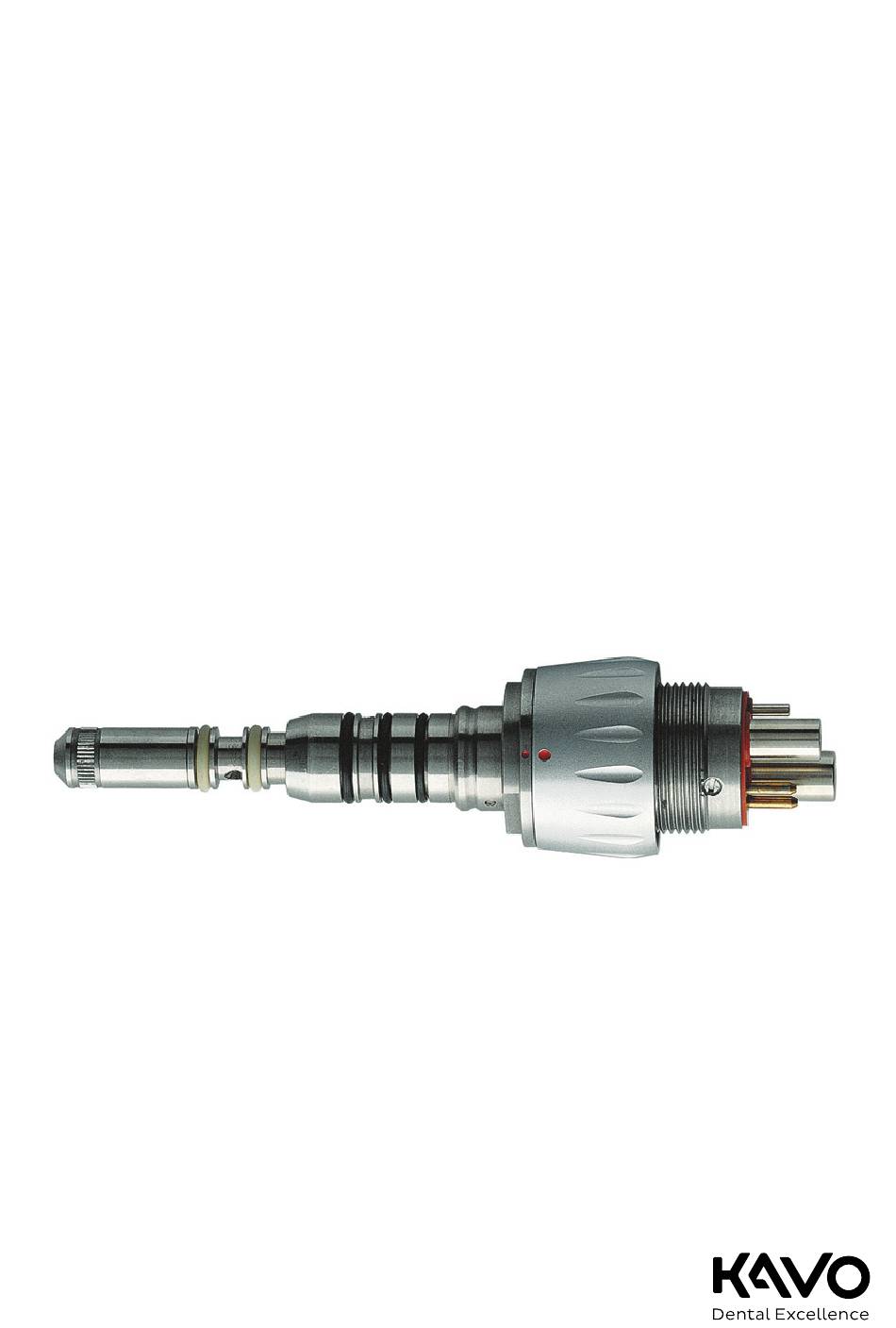

- Page 1 Instructions for use MULTIflex LED coupling 465 LED - 1.007.3197...
- Page 2 Distribution: Manufacturer: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...
- Page 3 Instructions for use MULTIflex LED coupling 465 LED - 1.007.3197 Table of contents Table of contents 1 User instructions ....................... 2 Safety..........................2.1 Infection hazard ......................6 2.2 Electrical shock......................6 2.3 Use ..........................6 2.4 Technical condition ......................6 2.5 Accessories and combination with other equipment............
- Page 4 MULTIflex couplings are registered trademarks of KaVo Dental GmbH. All other trademarks are property of their respective owners. KaVo Original Factory Repair In the event of a repair, please ship your product to the KaVo Original Factory Repair using https://www.kavobox.com. KaVo Technical Service...
- Page 5 Instructions for use MULTIflex LED coupling 465 LED - 1.007.3197 1 User instructions Manufacturer Manufacturing date Note: Please note accompanying documents Follow the electronic instructions for use HIBC Code CE mark for medical devices Medical device, labelling of medical devices...
- Page 6 4 Reprocess the product and accessories appropriately before disposal. 2.2 Electrical shock Connecting a non-KaVo system to the medical device can lead to electrical shock and injury to patient, user and third parties. 4 During installation and operation of the product on treatment devices and equipment from other manufacturers, comply with the provisions of "Protec-...
- Page 7 Define the service interval depending on the frequency of use. As a result of the use of NON-KaVo original spare parts during the repair, parts such as covers may become undone and injure the patient, user or other people.
- Page 8 2.8 Disposal This product is subject to the EC directive governing waste electrical and elec- tronic devices and must be submitted to special disposal in Europe. 4 For further information, please contact KaVo or a specialised dental dealer. 8 / 28...
- Page 9 Instructions for use MULTIflex LED coupling 465 LED - 1.007.3197 3 Product description | 3.1 Intended use 3 Product description MULTIflex LED coupling 465 LED (Mat. no. 1.007.3197) The MULTIflex coupling transfers the following media from a dental treatment centre to dental instruments: ▪...
- Page 10 4 1065 / 1060: If the KaVo MULTIflex coupling is used on these units, have a technician adjust the voltage. 4 E80 / E70 / E50 / 1058 / 1080 / 1066 / 1062: The KaVo MULTIflex coupling can be used on these units with any further measures being required.
- Page 11 Instructions for use MULTIflex LED coupling 465 LED - 1.007.3197 3 Product description | 3.3 Transportation and storage conditions 3.3 Transportation and storage conditions CAUTION Startup after refrigerated storage. Malfunction. 4 Prior to startup, strongly refrigerated products must be allowed to warm up to a temperature of 20 °C to 25 °C (68 °F to 77 °F).
- Page 12 Instructions for use MULTIflex LED coupling 465 LED - 1.007.3197 4 Startup and shut down 4 Startup and shut down WARNING Hazard from contaminated products. Infection hazard to the dentist and patient. 4 Prior to initial startup and after each use, reprocess the product and ac- cessories.
- Page 13 4 Re-tighten with the enclosed wrench. 4 Spray the O-rings on the supply hose with a small amount of KaVo Spray. The coupling remains screwed onto the hose. 5.2 Removing the coupling from the hose NOTE The coupling remains screwed to the hose, use the wrench to remove it.
- Page 14 Instructions for use MULTIflex LED coupling 465 LED - 1.007.3197 5 Operation | 5.4 Pulling the handpiece off 4 Accurately attach the MULTIflex (LUX) instrument to the MULTIflex coupling and push it to the rear until the coupling audibly locks into the medical device.
- Page 15 Stop working if the O-ring is missing or damaged. 4 If there is no O-ring on the motor coupling, replace the O-ring. 4 If the intensity of the KaVo MULTI LED lamp is low, increase the cold light intensity on the unit.
- Page 16 Screw-on the screw cap. 4 Unscrew the screw cap in anticlockwise direction. 4 Push the old KaVo MULTI LED lamp out of the mount with your fingernail and remove it. 4 Insert the new KaVo MULTI LED lamp into the recess such that the contact surfaces align with those of the mount.
- Page 17 Instructions for use MULTIflex LED coupling 465 LED - 1.007.3197 6 Checking for malfunctions and troubleshooting | 6.2 Troubleshooting 4 Push the O-ring to the front, and remove it. 4 Insert new O-rings into the recesses and spray them with KaVo Spray. 17 / 28...
- Page 18 Instructions for use MULTIflex LED coupling 465 LED - 1.007.3197 7 Reprocessing steps in accordance with ISO 17664 | 7.1 Preparations at the site of use 7 Reprocessing steps in accordance with ISO 17664 7.1 Preparations at the site of use WARNING Hazard from contaminated products.
- Page 19 Malfunction and material damage. 4 Reprocess it in a washer disinfector only. KaVo recommends the following products based on the compatibility of the ma- terials. The microbiological efficacy must be ensured by the disinfectant manu- facturer and proven by an expert opinion.
- Page 20 "VARIO-TD" programme and the "neodisher MediClean forte" cleaner from Dr. Weigert. In addition, KaVo recommends the use of a neutraliser and a rinsing agent. 4 For programme settings and the adaptation options to be used, please refer to the Instructions for Use of the washer disinfector.
- Page 21 NOTE Please comply with the instructions for use of the washer disinfector. 4 In order to prevent impairment of the KaVo medical device, make sure that the product is dry on the inside and outside after completion of the cycle.
- Page 22 Instructions for use MULTIflex LED coupling 465 LED - 1.007.3197 7 Reprocessing steps in accordance with ISO 17664 | 7.8 Storage NOTE Comply with the expiry date of the sterilized items. 22 / 28...
- Page 23 Instructions for use MULTIflex LED coupling 465 LED - 1.007.3197 8 Optional aids and consumables 8 Optional aids and consumables Available from specialised dental dealers. Material summary Mat. no. Wrench 0.411.1563 Spare washer 0.553.5262 KaVo MULTI LED lamp 1.007.5372 O-ring 6.65x0.8 1.004.2776...
- Page 24 12 months from the date of the invoice, subject to the following conditions: With regard to justified complaints KaVo grants warranty in the form of a free of charge repair or delivery of a replacement. Other claims of any kind whatso- ever, in particular with respect to compensation, are excluded.
