Instructions for use
QUATTROcare PLUS 2124 A
- 1.008.3805
Always be on the safe side.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUATTROcare PLUS 2124 A and is the answer not in the manual?

Questions and answers

Related Manuals for KaVo QUATTROcare PLUS 2124 A

Summary of Contents for KaVo QUATTROcare PLUS 2124 A

  • Page 1 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 Always be on the safe side.
  • Page 2 Distributed by: Manufacturer: KaVo Dental GmbH Kaltenbach & Voigt GmbH Bismarckring 39 Bismarckring 39 D-88400 Biberach D-88400 Biberach Phone +49 (0) 7351 56-0 www.kavo.com Fax +49 (0) 7351 56-1488...

  • Page 3: Table Of Contents

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 Table of contents Table of contents 1 User instructions............................... 5 1.1 User guide..............................5 1.1.1 Abbreviations..........................5 1.1.2 Symbols............................5 1.1.3 Target group..........................5 1.2 Service..............................6 1.3 Transportation and storage........................6 1.3.1...
  • Page 4 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 Table of contents 6.2 Safety checks ("STK")..........................30 7 Troubleshooting.............................. 31 8 Tools and consumables..........................32 9 Terms and conditions of warranty........................34 4 / 36...

  • Page 5: User Instructions

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 1 User instructions | 1.1 User guide 1 User instructions 1.1 User guide CAUTION Incorrect operation. Damage to or malfunction of the unit. ▶ Read these Instructions for Use before first start-up.

  • Page 6: Service

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 1 User instructions | 1.2 Service 1.2 Service KaVo Technical Service If you have any technical questions or complaints, please contact the KaVo Technical Service: +49 (0) 7351 56-1500 service.instrumente@kavo.com KaVo Repair Service...

  • Page 7: Storage

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 1 User instructions | 1.3 Transportation and storage ▶ Do not use a damaged product. ▶ Report the damage to the shipping company without delay, definitely no later than 7 days after delivery.
  • Page 8 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 1 User instructions | 1.3 Transportation and storage Humidity 5% to 95% non-condensing Air pressure 700 to 1,060 hPa Transport upright Protect from impact Protect from moisture Permissible stacking load: 15 kg (33 pounds)

  • Page 9: Safety

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 2 Safety | 2.1 Description of safety instructions 2 Safety 2.1 Description of safety instructions 2.1.1 Warning symbol Warning symbol 2.1.2 Structure DANGER The introduction describes the type and source of the hazard.
  • Page 10 ▪ Compliance with the warnings on the device and in the Instructions for Use is mandatory. The following persons are authorised to repair and service the KaVo product: ▪ Technicians of KaVo branch offices after appropriate product training. ▪ Specifically KaVo-trained technicians of KaVo franchised dealers.

  • Page 11: Product-Specific

    2.2.2 Product-specific The intended use of the KaVo QUATTROcare is for internal cleaning, i.e, purging of old lubricant, for the maintenance of rotating dental and surgical instruments. KaVo QUATTROcare spray can is a component of the KaVo QUATTROcare unit and is spe‐...

  • Page 12: Product-Specific

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 2 Safety | 2.3 Safety instructions 2.3.2 Product-specific WARNING Overheating. If the instrument with spray canister inserted heats up to above 50℃ (122 F), there is a danger of explosion. ▶ Protect the device from heating up to more than 50℃ (122 CAUTION Contaminated compressed air.

  • Page 13: Product Description

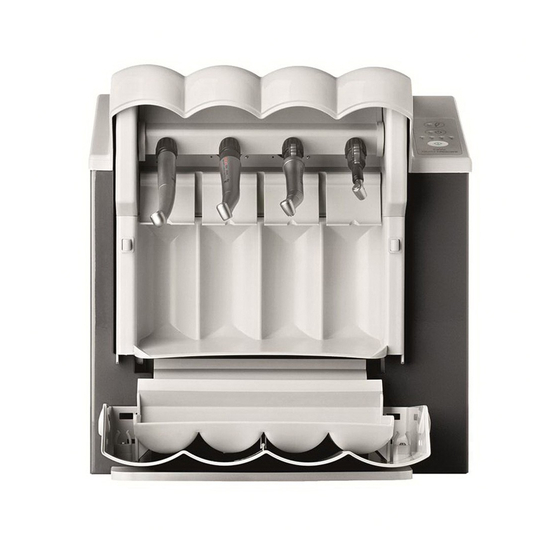

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 3 Product description | 3.1 QUATTROcare PLUS 2124 A 3 Product description 3.1 QUATTROcare PLUS 2124 A ① 3x INTRAmatic service couplings ② 1x MULTIflex service couplings ③ Control panel and display ④...

  • Page 14: Rating Plate

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 3 Product description | 3.2 Rating plate 3.2 Rating plate Type QUATTROcare PLUS 2124 A Year of manufacture - serial number Material number Fuse-protected with T1000 mA Comply with the Instructions for use...

  • Page 15: Scope Of Delivery

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 3 Product description | 3.4 Scope of delivery Electrical supply Line voltage 100 to 240 VAC Mains frequency 50 or 60 Hz Power consumption 41 VA Overvoltage category Mains voltage fluctuation ±10 %...
  • Page 16 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 3 Product description | 3.4 Scope of delivery ① Chuck service adaptor ② QUATTROcare Plus Spray canister ③ Compressed air coupling ④ Instructions for use ⑤ O-ring MULTIflex (4 units) ⑥ O-ring INTRAmatic (3 units) ⑦...

  • Page 17: First Use

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 4 First use | 4.1 Select location 4 First use 4.1 Select location The QUATTROcare Plus Spray canister contains explosive propellant gases. The fol‐ lowing instructions and setup conditions therefore need to be observed when setting up the unit.

  • Page 18: Connect The Quattrocare Plus 2124 A

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 4 First use | 4.2 Connect the QUATTROcare PLUS 2124 A Note The unit must be set up on a flat, level surface that is insensitive to oil and water. The unit must not be set up or operated on an angled surface.

  • Page 19: Replacing The Quattrocare Plus Spray Canister

    Note Use of power cables other than original KaVo parts. Damage to or malfunction of the unit. ▶ Use original KaVo power cables only (for material numbers, see chapter on "Consumables and tools"). Back of QUATTROcare PLUS 2124 A A T1000 mA fuse is installed ④.

  • Page 20: Insert The Spray Canister

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 4 First use | 4.3 Replacing the QUATTROcare Plus Spray canister 4.3.1 Insert the spray canister Wear safety goggles when you insert or replace the spray can. Please note the safety data sheet of the spray can.

  • Page 21: Remove The Spray Canister

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 4 First use | 4.3 Replacing the QUATTROcare Plus Spray canister ▶ Check the screw connection. Note After insertion of the spray can check visually, tactile, acoustically and by touch for absence of leakage.

  • Page 22: Dispose Of The Spray Canister

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 4 First use | 4.3 Replacing the QUATTROcare Plus Spray canister ▶ Swing the spray can and the adaptor out of the device. ▶ Place the spray can on the retention clip and unscrew it counterclockwise from the adaptor.

  • Page 23: Operation

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 5 Operation | 5.1 Control panel 5 Operation 5.1 Control panel ① LED spray can control ② LED control light main switch (on/off) ③ LED display ④ Start button for chuck service ⑤...

  • Page 24: Mounting Instruments

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 5 Operation | 5.3 Mounting instruments 5.3 Mounting instruments Note Remove the handpieces from the unit as soon as the servicing is completed. Note The LED display shows the following: Adaptor on the far left corresponds to LED display 1.

  • Page 25: Start The Treatment

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 5 Operation | 5.4 Start the treatment ▶ When installing the service coupling for INTRA heads, make sure to push the ac‐ tuating sleeve② (for Special accessories, see chapter on "Consumables and tools") onto the associated flap to ensure proper servicing.

  • Page 26: Remove The Instruments

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 5 Operation | 5.5 Remove the instruments See also: 2 5.2 Open the front flap, Page 23 The LED display ③ is turned off. 5.5 Remove the instruments Note The exterior of handpieces needs to be wiped off thoroughly with a soft absorbent cloth before removing them.

  • Page 27: Chuck Servicing

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 5 Operation | 5.7 Chuck Servicing The unit is configured as follows at the time of delivery: ▪ 3 x service couplings for INTRAmatic ▪ 1 x service coupling for MULTIflex ▶...
  • Page 28 ð The spray is then briefly injected through the chuck, completing the service. Quit the chuck service mode: ▪ Place the handpieces in the QUATTROcare PLUS 2124 A, close the front door and start theservice procedure. ▪ Alternatively, after three minutes with no service procedure running, the device au‐...

  • Page 29: Set The Blow-Out Time

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 5 Operation | 5.8 Set the blow-out time 5.8 Set the blow-out time With the QUATTROcare PLUS 2124 A the blow-out time for straight and contra-angle handpieces and turbines can be changed. ▶ Hold down the start key ②.

  • Page 30: Maintenance

    6.2 Safety checks ("STK") The QUATTROcare PLUS 2124 A must be subjected to a service check including safety check ("STK") every 5 years. The safety check may only be done by a profes‐ sional trained by KaVo or in a shop trained by KaVo.

  • Page 31: Troubleshooting

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 7 Troubleshooting | 6.2 Safety checks ("STK") 7 Troubleshooting Note Heads of the "22" series cannot be serviced because their necks are too thin. These heads must be serviced together with the corresponding shanks.

  • Page 32: Tools And Consumables

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 8 Tools and consumables | 6.2 Safety checks ("STK") 8 Tools and consumables Presentation Material summary Mat. No. Service coupling 1.009.6143 INTRAmatic Service coupling 1.009.6142 MULTIflex Service coupling for INTRA 0.411.7941...
  • Page 33 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 8 Tools and consumables | 6.2 Safety checks ("STK") Presentation Material summary Mat. No. Service coupling 1.000.8459 MIDWEST Low Speed Service coupling 1.000.8786 Turbines Service coupling 1.000.8858 OSADA Turbines Service coupling 1.000.6063...

  • Page 34: Terms And Conditions Of Warranty

    Upon justified complaints of flaws or a short delivery, KaVo will make good its warran‐ ty by replacing the product free of cost or repairing it according to the customer's wish‐...
