Summary of Contents for Taurus BodyMax UB5

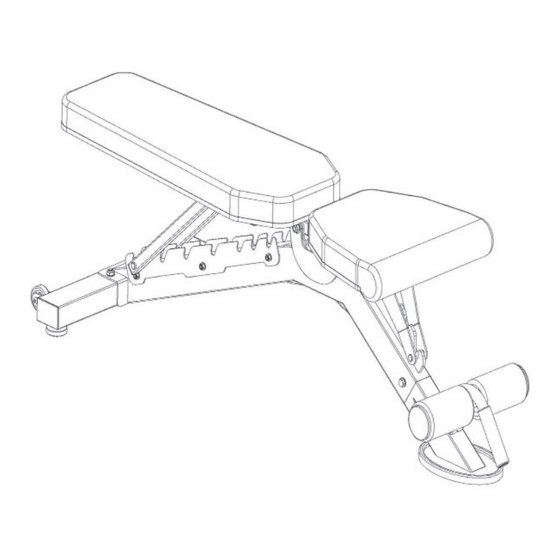

- Page 1 Assembly and Operating Instructions max. 120 kg ~ 60 Min. 19 kg L 156 | W 51 | H 114 FSUKBMUB5.01.01 SKU: BM-UB5 BodyMax UB5 Weight Bench...
- Page 3 Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions Transportation Wheels TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List...
- Page 5 Dear customer, Thank you for choosing training equipment from BodyMax. BodyMax is your reliable partner for home and commercial gym equipment. We are specialized in cardio and strength training machines for home and commercial use. Our products are not only strong, durable, and aff ordable but also designed to fi t your personal needs.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and fi rst use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
- Page 8 GENERAL INFORMATION Technical Data Weight and Dimensions Packaging dimensions (L x W x H) approx.: 116 cm x 37 cm x 23 cm Set-up dimensions (L x W x H) approx.: 156 cm x 51 cm x 114 cm Article weight (gross, incl. packaging) approx.: 21 kg Article weight (net, excl.
- Page 9 Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
- Page 10 Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts.
- Page 11 ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
- Page 12 Name Qty. Name Qty. Back pad Roller cap Seat pad Front foot Main frame Roller tube Foot roller Rear foot Name Qty. Name Qty. Bolt M8*40 Bolt M10*20 Bolt M10*65 Domed nut M10 Flat washer M8 Wrench Flat washer M10...
- Page 13 Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fi t properly. Tighten the screws using the tool only when you are instructed to do so.
- Page 14 Step 2: Assembly of the Main Frame, the Front Foot and Rear Foot, Part 2 Turn the main frame upside down with the front foot facing upwards like shown in fi gure A. Attach the front foot (6) to the main frame (3) with one bolt (E) and one fl at washer (D). Turn the main frame over again like shown in fi gure B.
- Page 15 Step 3: Assembly of the Pads NOTICE For an easier assembly, you can lay the pads with the front facing downwards on an underlay on the fl oor and then place the main frame on top. Attach the back pad (1) to the main frame (3) with a total of fi ve bolts (A) and fi ve fl at washers (C). Attach the seat pad (2) to the main frame (3) with a total of four bolts (A) and four fl at washers (C).
- Page 16 Step 4: Assembly of the Roller Tube, the Foot Rollers and Roller Caps Slide the roller tube (7) through the respective opening on the front foot (6). Attach one foot roller (4) onto each side of the roller tube (7). Secure the foot rollers (4) with one roller cap (5) each.
- Page 17 STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location.
- Page 18 TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may aff ect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.
- Page 19 Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specifi ed intervals: Part Weekly Monthly Quarterly Screw connections Cushions...
- Page 20 RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. For training equipment like smith machines, weight benches or racks this could for example be a fl oor mat, which makes your fi tness equipment stand more securely and also protects the fl oor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes.
- Page 21 ORDERING SPARE PARTS Serial Number and Model Name In order to provide you with the best possible service, please have the model name, article number, serial number, exploded drawing and parts list ready. The corresponding contact options can be found in chapter 9 of this operating manual. ...
- Page 22 Parts List Name Qty. Name Qty. Back Pad Adjustable foot pad Seat Pad Moving roller Main Frame Inner plug 25*25mm Foot Roller Inner plug 60*30mm Roller Cap Pan head square neck screws M10*65 Front Foot External hexagon screw M10*40 Roller Tube Flat washer φ8 Rear Foot Locking nut M8...
- Page 23 Exploded Drawing...
- Page 24 WARRANTY Products from BodyMax® are subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. Error Descriptions Your fi tness equipment is developed for long-term, high-quality training.
- Page 25 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
- Page 26 CONTACT TECHNIK TEKNIK OG SERVICE CUSTOMER CARE �� �� �� +49 4621 4210-900 80 90 16 50 +44 141 737 2249 or +44 141 876 3972 +49 4621 4210-945 �� +49 4621 4210-698 �� �� info@fi tshop.dk customercare@fi tshop.co.uk �� technik@fi tshop.de ��...
- Page 27 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Fitshop Group is Europe’s largest specialist for https://www.fi tshop.co.uk/ home fi tness equipment with currently 70 stores www.fi tshop.co.uk/blog/ and one of the world’s most renowned online mail order companies for fi tness equipment. Fitshop UK is part of the Fitshop Group.
- Page 28 Notes...
- Page 29 Notes...
- Page 30 Notes...
- Page 32 BodyMax UB5 Weight Bench...
