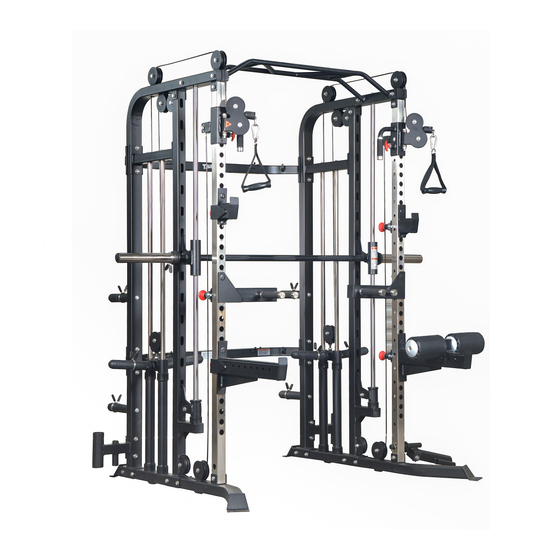

- Page 1 Assembly and Operating Instructions ~ 240 Min. 205 kg L 160 | W 200 | H 221 FSUKTFMS20.01.01 SKU: TF-MS20 TF TF- Taurus MS20 Pro...
- Page 2 MS20...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 MS20...
- Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ࣑...
-
Page 8: General Information
GENERAL INFORMATION Technical Data Weight and dimensions: Article weight (gross, incl. packaging): No. 1 93 kg No. 2 76 kg No. 3 43 kg Article weight (net, without packaging): 205 kg Packaging dimensions (L x W x H): No. 1 approx. -
Page 9: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. - Page 12 MS20...
-
Page 14: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g. - Page 16 Step 2: Assembly of the back link tube Assemble the back link tube (4) to the right and left back upright frames (3) with two bolts (38), four washers (46) and two nuts (44) each. MS20...
- Page 18 Step 3: Assembly of the front upright frames to the bottom frame Assemble the front upright frames (2) to the two bottom frames (1) with two bolts (39), four washers (46) and two nuts (44) each. MS20...
- Page 20 Step 4: Assembly of the connecting frame Assemble the upright link tube (5) between the back and front upright frames (2 & 3) with two bolts (36) and two washers (46). Repeat this step on the other side. MS20...
- Page 22 Step 5: Assembly of the adjustable tubes Push one sliding tube (28) each onto the two adjustable tubes (27). Attach the two adjustable tubes (27) to the bottom frame (1) with one bolt (38), two washers (46) and two nuts (44) each. MS20...
- Page 24 Step 6: Assembly of the upper plate Assemble the upper plate (6) together with the back link tube (4) to the back upright frame (3) with two bolts (38), four washers (46) and two nuts (44). Assemble the upper plate (6) to the front upright frame (2) and the adjustable tube (27) with a total of two bolts (38), four washers (46) and two nuts (44).
- Page 26 Step 7: Assembly of the chin up bar Assemble the chin up bar (30) to the upper plates (6) with two bolts (39), four washers (46) and two nuts (44) each. MS20...
- Page 28 Step 8: Assembly of the smith barbell fixture Push the sliding sleeve (14), the bottom frame (1), the safety hook (12) and the rubber cushions (18) onto the guide rod (15). Insert the guide rod into the intended seat of the front upright frame (2). Secure the guide rod to the upper plate (6) with a bolt (38) and a washer (46).
- Page 30 Step 9: Assembly of the weight block Place the support tube set (22), the rubber cushions (18) and the selector rod (21) on both guide rods (20). Insert the guide rods (20) into the seats of the base frame (1) and connect each to the upright link tube (5) with a bolt (38) and a washer (46).
- Page 32 Step 10: Assembly of the pulleys Attach the two pulleys no. 1 and no. 2 (29) to the sliding tube (28) with one bolt (37), two washers (46) and one nut (44) each. Repeat this step for the other side. MS20...
- Page 34 Step11: Assembly of the pulleys Attach the four pulleys no. 3 and no. 4, no. 6 and no. 7 (29) on the upper plate (6) with one bolt (37), two washers (46) and one nut (44) each. Repeat this step on the other side. MS20...
- Page 35 Step 12: Assembly of the barbell holder Attach the barbell holder (26) to the back upright frame (3) with two bolts (38), four washers (46) and two nuts (44).
- Page 36 Step 13: Assembly of the weight plate holder Secure the barbell plate holder (7) to the back upright frame (3) with a bolt (36) and a washer (46). Push the sleeve (8) onto the barbell plate holder (7). Push the spring collar (49) onto the sleeve (8). MS20...
- Page 37 Step 14: Mounting of the accessories Insert the parts of the J hook (31), the parts of the long safety catch (32) and the parts of the dip bar (33) into both adjustable tubes (27). Attach the handles to the two ends of the cable.
- Page 38 Step 15: Assembly of the leg press Attach the leg press foam (11) to the long safety catch (32) using the foam pin (24). MS20...
- Page 39 Step 16: Assembly of the torso trainer Attach the torso trainer (9) to the torso trainer base (10) with a bolt (41), two washers (47) and a nut (45). Attach the torso trainer base (10) to the adjustable tube (27) using the safety pin (25).
- Page 40 Attach the pulley no. 5 (29) to the selector rod (21) with a bolt (37), two washers (46) and a nut (44). Repeat these steps for the other side. MS20...
- Page 41 Secure the two pulleys no. 8 and no. 9 (29) to the bottom frame (1) with one bolt (37), two washers (46) and one nut (44) each. Repeat this steps for the other side.
- Page 42 Step 17: Attachment of the cable base Secure the base of the cable (35) to the left sliding tube (28) with a bolt (37), two washers (46) and a nut (44). Repeat this step on the right side. MS20...
-
Page 43: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 44: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 45: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing... -
Page 46: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 47: Ordering Spare Parts
9 of this operating manual. NOTICE The serial number of your equipment is unique. It's located on a white sticker. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Taurus MS20 Pro SKU: TF-MS20... -
Page 48: Parts List
Parts List Name Specification Qty. bottom frame left & right front upright frame back upright frame back link tube upright link tube upper plate barbell plate holder barbell plate sleeve torso trainer torso trainer base leg press foam smith safety hook smith barbell sleeve smith sliding sleeve left &... - Page 49 long safety catch left & right dip bar left & right hand belt cable hexagon bolt M10*25 hexagon bolt M10*50 hexagon bolt M10*70 hexagon bolt M10*95 buttom head socket M10*25 hexagon bolt M12*120 hex key hex key lock nut lock nut washer Φ10 washer...
-
Page 50: Exploded Drawing
Exploded Drawing MS20... -
Page 51: Warranty
WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 52 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 53: Contact
CONTACT �� TECHNIK �� TEKNIK OG SERVICE �� CUSTOMER CARE �� +49 4621 4210-900 80 90 16 50 +44 141 737 2249 or �� �� +44 141 876 3972 �� +49 4621 4210-945 +49 4621 4210-698 �� �� info@fitshop.dk customercare@fitshop.co.uk ��... - Page 54 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Fitshop Group is Europe’s largest specialist for https://www.fitshop.co.uk/ home fitness equipment with currently 70 stores www.fitshop.co.uk/blog/ and one of the world’s most renowned online mail order companies for fitness equipment. Fitshop UK is part of the Fitshop Group. Private www.facebook.com/fitshop.co.uk customers order via the 25 web shops in the respective national language or have their...
- Page 56 Taurus MS20 Pro...
