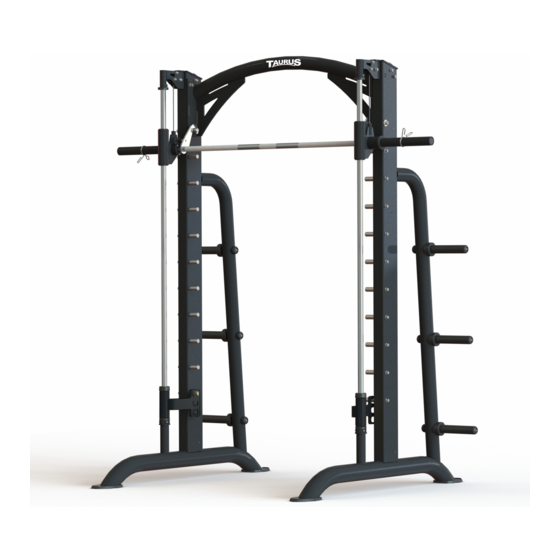

- Page 1 Assembly Instructions max. 245 kg ~ 90 Min. 198 kg L 217 | W 158 | H 239 TFPTT0222.01.01 Art. No. TF-PTT0222 Taurus Studio Smith Machine...
- Page 2 Studio Smith Machine...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Studio Smith Machine...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions: Article weight (gross, incl. packaging) approx.: 255 kg Article weight (net, excl. packaging) approx.: 198 kg Packaging dimensions (L x W x H) approx.: 242 cm x 56.5 cm x 164 cm Set-up dimensions (L x W x H) approx.: 216.5 cm x 157.5 cm x 239 cm Maximum load: 245 kg... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠... -
Page 12: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of the Upright and Connecting Frames Mount the transverse connecting frame (3) onto the left and right uprights (1 &... - Page 13 Step 2: Assembly of the Barbell Pipes Mount three barbell pipes (14) on the right upright (2) with two screws (45), two spring washers (51), two extra large washers (55) and two pipe plugs (25) each. Fix the joints on the backside of the right upright (2) with two screws (48) each. Repeat the steps 1-2 on the left side.
- Page 14 Step 3: Assembly of the Barbell Racks and Barbell Set NOTICE The barbell racks (5 & 6) are pre-assembled. Slightly loosen the screws (44) and nuts (58) at the top of the left and right barbell racks (5 & 6). Loosen the screws (46) and spring washers (51) at the bottom of the left and right barbell racks (5 &...
- Page 15 WARNING ⚠ Before carrying out this step, ensure that the screw has locked the guide rod.
- Page 16 Step 4: Assembly of the Cable Set Hook in the cable set (31) to the left and right barbell racks (5 & 6). Name Specification Qty. Left barbell rack Right barbell rack Cable set Studio Smith Machine...
-
Page 17: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 18: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 19: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing... -
Page 20: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 21: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / Multi Gym Model Name: Studio Smith Machine Article Number: TF-PTT0222... -
Page 22: Parts List
Parts List Name Specification Qty. Left upright Right upright Transverse connecting frame Barbell set Left Barbell rack Right Barbell rack Guide rod holder protecting rack Guide rod Counter weight Baffle Locating tube Short hook column Barbell pipe Bearing retaining ring Ring cover Hook column Rod fixing ring... - Page 23 Metallurgy cover Spring bracket Aluminum pulley Aluminum pulley Linear bearing Φ30*Φ47*68 Deep groove ball bearing 6005-2Z Circlips for hole d0=47 Hex socket head cap screw M12*110 Hex socket head cap screw M12*35 Hex socket head cap screw M10*90 Hex socket head cap screw M10*50 Description Specifications...
-
Page 24: Exploded Drawing
Exploded Drawing Studio Smith Machine... -
Page 25: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 26 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 27: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 28 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk for home fitness equipment with currently over www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
- Page 29 Notes...
- Page 30 Notes Studio Smith Machine...
- Page 32 Taurus Studio Smith Machine...
