Summary of Contents for Taurus TF-UB10.5

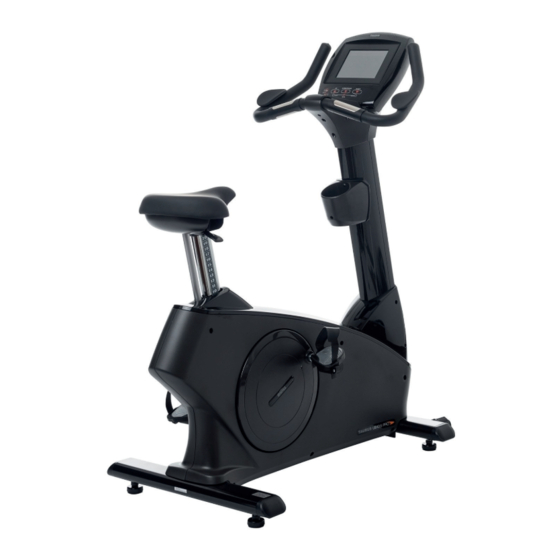

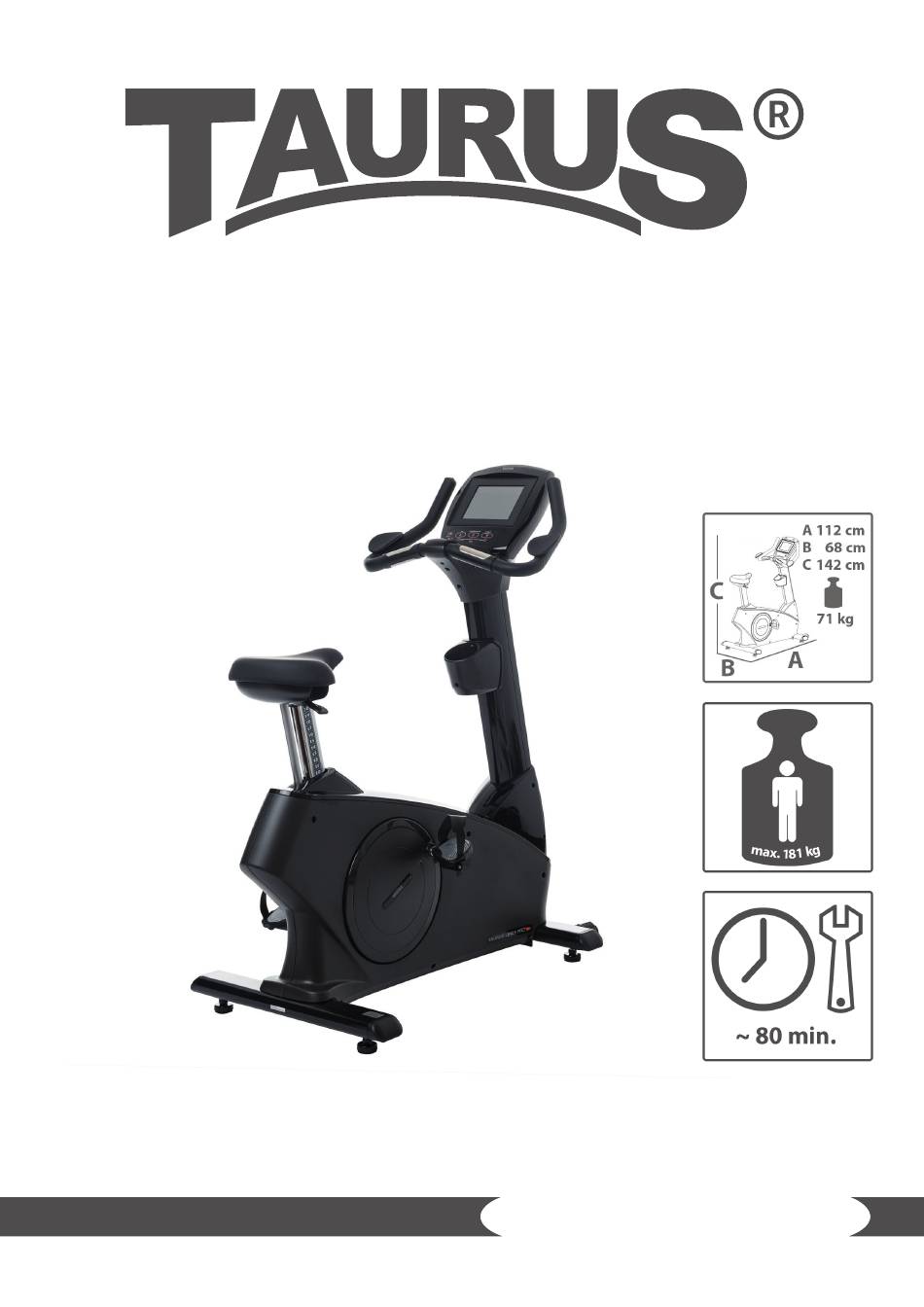

- Page 1 Assembly and Operating Instructions TFUB10.05.03 Ergometer UB10.5 Pro TF-UB10.5...
- Page 2 UB10.5 Pro...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly Adjustments OPERATING INSTRUCTIONS Console display Button functions Turning on and setting the equipment Programs 3.4.1 Quick Start 3.4.2 Profiles 3.4.3 Heart rate control STORAGE AND TRANSPORT General Instructions Transportation Wheels... - Page 4 WARRANTY CONTACT UB10.5 Pro...
- Page 5 With Taurus fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data TFT display of speed in km/h training time in min training distance in km cadence (rotations per minute) calories burnt in kcal heart rate (when using the hand sensors or a chest strap) heart rate trend + Watt resistance level METs... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Electrical Safety
Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠... -
Page 10: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. Make sure that you leave at least 30 cm on each side of the equipment and at least 15 cm in front of and behind the equipment as a training zone. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 12: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠... -
Page 14: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assemble Base Feet Mount four adjusting screws (19) each on the front base foot (2) and rear base foot (3). - Page 15 Step 2: Assemble Console Mast Connect the lower connection cable (114) with the middle connection cable (113). ࣑ ATTENTION In the following step, make sure that the cable is not pinched. Insert the console mast (5) in the main frame (1) and mount it with two screws (101) and two pre-assembled nuts (109).
- Page 16 Step 3: Assemble Console Connect the middle connection cable (113) to the upper connection cable (112) and the middle pulse sensor cable (119) to the upper pulse sensor cable (118). ࣑ ATTENTION In the following step, make sure that the cable is not pinched. Secure the console (31) to the console mast (5) with four screws (87).
- Page 17 Step 4: Assemble Handle and Covers Connect the middle pulse sensor cable (119) to the lower pulse sensor cable (120). ࣑ ATTENTION In the following step, make sure that the cable is not pinched.. Secure the handle (6) to the console mast (5) with four spring washers (74) and four screws (95). Secure console cover (33) to console (31) with four screws (87).
- Page 18 Step 5: Assemble Arm Rests, Bottle Holder and Pedals Secure the arm rests (28) to the handle (6) with two washers (81), two spring washers (115) and two screws (116). Secure the two parts of the bottle holder (36&37) to the console mast (5) with the two pre- assembled screws (88).
- Page 19 Step 6: Alignment of the feet If the floor is uneven, you can stabilize the equipment by turning the two setting screws under the main frame. Lift the equipment on the desired side and rotate the setting screws under the main frame. Rotate the screws clockwise in order to remove them and to raise the equipment.
-
Page 20: Adjustments
Adjustments Angle adjustment of the console Adjust the angle of the console by pressing lightly on the upper or lower end of the console. Seat adjustment In order to adjust the height of the seat: press the lever underneath the seat slightly upwards. As soon as you have reached the desired height, release the lever again. -
Page 21: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Console display Wear a chest strap or grab the hand pulse sensors with both hands. The heart symbol will appear a few seconds later and your heart rate will be displayed. - Page 22 Speed Indicates the speed between 0.0 - 99.9 km/h. Ascending: If no target value is set, the time will run ascending from Time 0:00 to 99:59 minutes. Distance Indicates the distance covered between 0.0 - 99.9 km. Indicates the rotations per minute between 0 - 255. Calories Indicates the calories burnt between 0 –...
-
Page 23: Button Functions
Button functions START Press START to start the training. PAUSE Press PAUSE to pause the training. STOP Press STOP to end the training. All values are reset to zero. Press UP to increase resistance during training. DOWN Press DOWN to lower the resistance during training. BACK Press BACK to return to the previous screen. -
Page 24: Turning On And Setting The Equipment
Turning on and setting the equipment The console turns on automatically if you pedal with more than 25 RPM. The console will turn off automatically after 60 seconds of inactivity. NOTICE The console contains rechargeable batteries. The console turns off if the batteries are empty. The batteries are charged with rotations of more than 35 RPM. -
Page 25: Profiles
3.4.2 Profiles Press Profile on the start screen. Then select between Basic and Advanced. Basic Profile: You can choose between six basic programs. Advanced Profile: You can choose between six advanced programs. 3.4.2.1 Basic profiles Select Basic Profile. Now you can select from the following six programs: Manual, Fitness, Random, Rolling, Fat Burn, Ascent. - Page 26 Now you can set your desired training time between 5:00 - 99:00 minutes. Press Back to return to the previous screen. Press Next to start training. Press Quick Start to immediately begin the training. H.R. Trend WARNING ⚠ Your training equipment is not a medical device.
- Page 27 3.4.2.2 Advanced profiles Select Advanced Profile. Now you can select from the following six programs: Constant Power, Iron Man, Mountain, Weight Loss, Interval, Valley. Before you select the Constant Power program, you should get to know the difference between constant power and constant resistance. Constant resistance (in Resistance remains the same independent of the speed.
- Page 28 Now you can set your desired training time between 5:00 - 99:00 minutes. Press Back to return to the previous screen. Press Next to start training. Press Quick Start to immediately begin the training. H.R. Trend WARNING ⚠ Your training equipment is not a medical device.
-
Page 29: Heart Rate Control
3.4.3 Heart rate control ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can affect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. Select “Heart Rate Control”... - Page 30 Now you can set your age between 5 - 99 years. Press Back to return to the previous screen. Press Next to continue with the gender setting. Press Quick Start to immediately begin the training. Now you can select your gender. Press Back to return to the previous screen.
- Page 31 H.R. Trend ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can affect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. NOTICE Make sure that you wear a chest strap or hold the pulse sensors with both hands so that the...
-
Page 32: Storage And Transport
STORAGE AND TRANSPORT General Instructions ࣑ ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 5°C and 45°C. WARNING ⚠... -
Page 33: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 34: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Half-yearly Yearly Display console... -
Page 35: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 36: Ordering Spare Parts
The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / ergometer Model Name: UB10.5 Pro Article Number: TF-UB10.5... -
Page 37: Parts List
Parts List Name Supplier Parts No. Specification Qty. Main Frame Console Bracket Front Stabilizer Upper Handlebar Decoration Cover Rear Stabilizer Lower Handlebar Decoration Cover Seat Post Accessory Tray Support Pad Upright Post Accessory Tray Handlebar Left Upright Post Sleeve Left Cover Right Upright Post Sleeve Right Cover Front Aluminum Upright Cover... - Page 38 Axle Connection Cap Bolt (M10×p1.5×45mm) Idler Wheel Spacer Bolt (M8×p1.25×15mm) Idler Spring Bolt (M8×p1.25×15mm) Bearing (6004) Bolt (M8×p1.25×65mm) Square Key (6x6x15mm) Bolt (M8×p1.25×80mm) E-Ring Bolt (M10×p1.5×25mm) C-Ring Bolt (M6×p1.0×12mm) Eye Bolt Bolt (L=35mm) Tension Bracket Nut (M6×p1.0) Lock Washer (M8) Nut (M8×p1.25) Washer (8×23×2.0t) Nylon Nut (M6×p1.0)
-
Page 39: Exploded Drawing
Exploded Drawing... - Page 40 WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
- Page 41 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
- Page 42 CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��...
- Page 43 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store for www.sport-tiedje.co.uk home fitness equipment with currently 80 stores www.sport-tiedje.de/blog and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 web shops www.facebook.com/SportTiedje in the respective national language or have their desired equpiment assembled on site.
- Page 44 Notes UB10.5 Pro...
- Page 45 Notes...
- Page 46 UB10.5 Pro...
