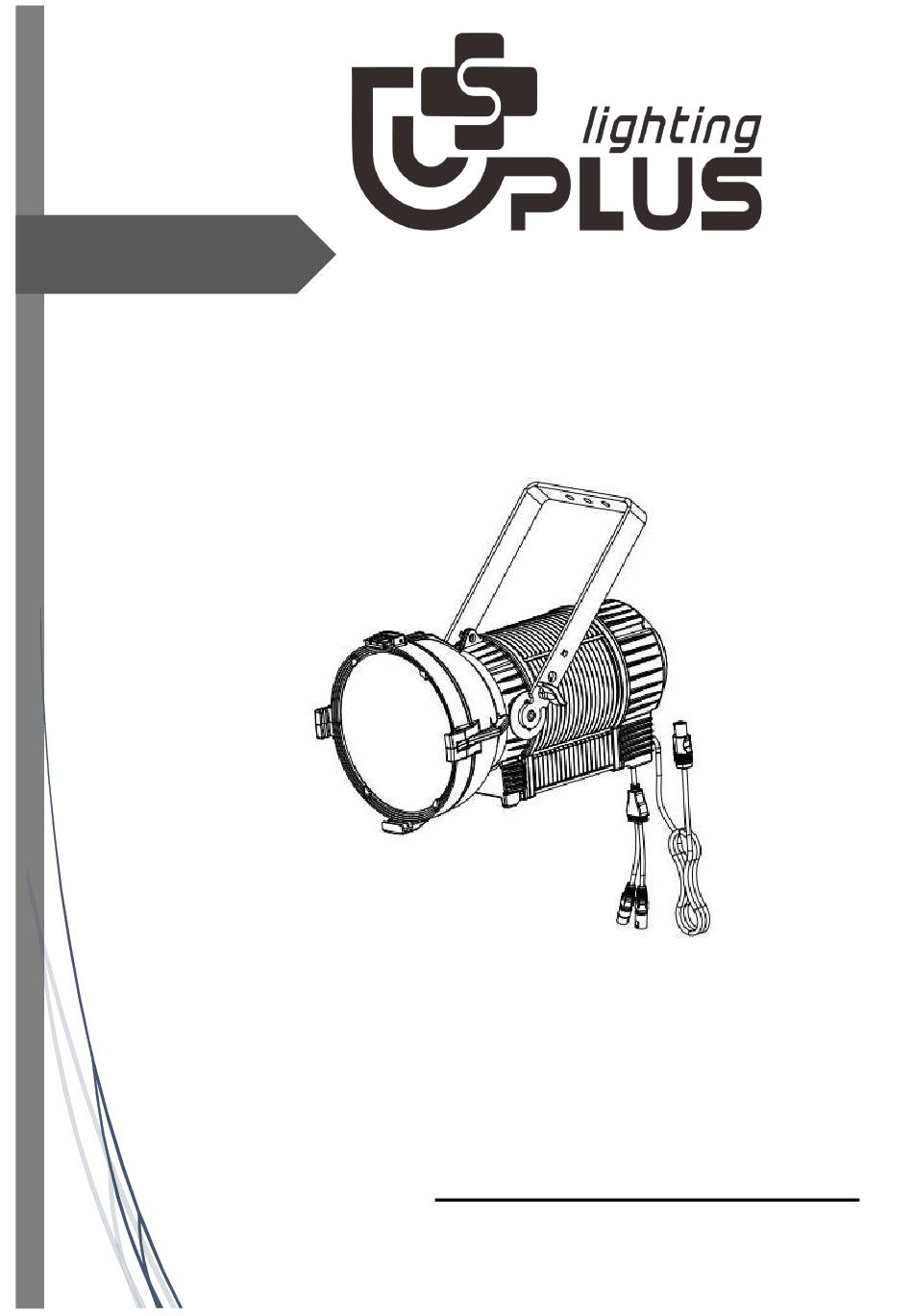

- Page 1 User manual IP 300Z SPOT PENTA Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3 2. Technical Specifications………………………………………………………………………4 3. Descriptions………………………………………………………………………………………5 4. Unpacking…………………………………………………………………………………………5 5. Control Menu ……………………………………………………………………………………6-7 6. DMX Channels ……………………………………………………………………………………7 7. Dimension …………………………………………………………………………………………8 8. Trouble Shooting…………………………………………………………………………………9 9. Fixture Cleaning………………………………………………………… ………………………9 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •Unpack and check carefully there is no transportation damage before using the unit. •Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit. -
Page 4: Technical Specifications
2.Technical Specifications Light Source: LED POWER: 300W LED Color: RGBAL 5IN1 Color Rendering Index(CRI): Ra≥90 LED Life Time: over 50,000 hours Power supply: Voltage: AC100-240V Max.power: 300W Optics: Beam Angle: 15°-30° Zoom Function: Auto zoom Features: Dimming Curve: 4 kinds dimming curve PWM: 500HZ - 25000HZ optional Strobe :1-25times/sec Light body feature:... -
Page 5: Descriptions
Meanwhile, please keep this manual well for future needs. The IP 300Z SPOT PENTA is made of a new type of high temperature strength of cast aluminum casing with nice outlook. The fixture is designed and manufactured strictly following CE&RoHS standards, complying with international standard DMX512 protocol. -
Page 6: Control Menu
5.Control Menu Operation Status Mode Display Description “A”stand for standard channel mode, “xxx”stand for ID address, Auto identify DMX Mode Axxx Master-slave controller signals or host signals “D”stand for basic channel mode, “xxx”stand for ID address, Auto identify controller Dxxx signals or master signals “M”stand for Master mode，“MC”stand for “Mixed Colort”... -
Page 7: Dmx Channels
Status Menu Description Software Name of software Version Version Temperature Show the temperature of lighting fixture With“OK” （ Slave mode， with signal） ， “NONE” （ Slave mode， no signal） 、 “Master” （ Master） DMX Status Settings Menu Operation Option Description Touch Screen Touch screen adjust Calibration... - Page 8 70~79 Color Temperature 4500K 80~89 Color Temperature 5600K 90~99 Color Temperature 6000K 100~109 Color Temperature 6500K 110~119 Color Temperature 7200K 120~129 Color Temperature 8000K 130~139 Color Temperature 9000K 140~149 Color Temperature 10000K 150~159 Color Temperature 12000K 160~169 Custom color temperature one 170~179 Custom color temperature two 180~255...
-
Page 9: Dimension
7.Dimension Size of the fixture: 520.1 (D)*306.7(W)*473.9(H)mm... -
Page 10: Trouble Shooting
8.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
