Summary of Contents for Converters.TV 873

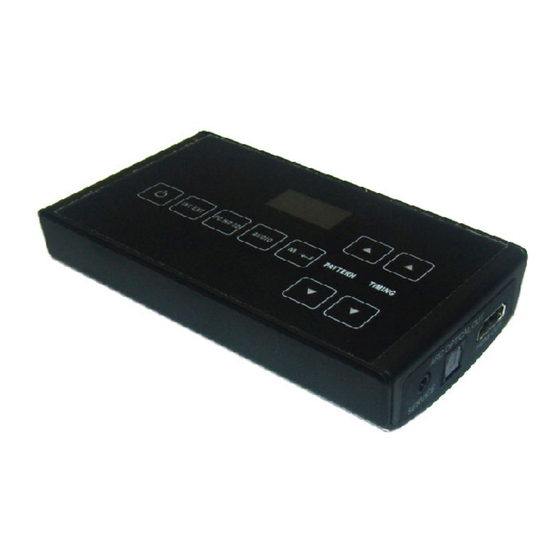

- Page 1 3D Mini HDMI Analyzer ID# 873 Operation Manual...
- Page 2 Introduction The 3D Mini HD Analyzer is a tool for checking the compatibility of 3D sources and displays. featuring touch sensitive controls with an OLED display that shows the input and output timings, the mini analyzer analyzes the input sources of the sources info frame and the output sinks EDID to ensure the compatibility of the source and display.
- Page 3 Operation Controls and Functions Front Panel 1. HDMI IN: Connect the HDMI input port to the HDMI output port of your source equipment such as DVD, Computer, Cables Box or any other source for testing and pulling EDID file. 2. DC 5V: Plug the DC 5V power supply into the splitter and connect the adaptor to AC wall outlet.
- Page 4 Top Panel Note: Please remove the plastic film from the top before using the touch key function. 1. Power: Press this button to turn on or set the device to standby mode. The blue LED will illuminate when the device is set to on and the red LED will illumniate when the device is switched to standby mode.
- Page 5 OSD Menu Press the M/button from the device to bring up the OSD on the display. Press pattern’s [▲/▼] to highlight on option Press [M/] to confirm the selection System Info System Info.: Press this button to show both the input and output information while both input and output is connected, refers to below picture for information contents.
- Page 6 Press [M/] to check the input/output device information and software version. Sink EDID Option Description Block Data To check the sink Block0 and Block 1's table of EDID Description Source Info-frame Option Description AVI (AVI info-framedata) To check the source video info-frame packet AUD (audio info-frame data) To check the source audio info-frame packet CEC Command Option...
- Page 7 1 . Sampling Rate: The device support audio sampling rate of 48/96/192KHz and the OLED will display it according to the selection, if external audio is selected the OLED will display bypass. 2. Audio Channels: The device support audio channels from LPCM 2, 5.1 and 7.1CH, if external audio is selected the OLED will display bypass.
- Page 8 Support Pattern Table Group Pattern Description Primary colors: Red, Green, Blue P1: Red P2: Green P3: Blue Standard Type P4: Horizontal RGB Bar P5: H Grey Scale...
- Page 9 Standard Type P6: HDCP handshaking and link-integrity test (cont) 3d Type (FP) P*7(FP): Frame Packing (SH) P*7(SH): Side-by-Side (Half)
- Page 10 3D Type (cont) (TB) P*7 (TB): Top-and-Bottom Note: *7 means Left hand side will present on 2D display, right hand side will present on 3D display. 3D FP means 3D Frame Packing 3D SH means 3D Side-by-Side (Half) 3D TB means 3D Top-and-Bottom Connection For checking both source and display's information, press M/...
- Page 11 For checking display's support timing, connect HDMI output only to the display and press the PATTERN and TIMING button.
-
Page 12: Specifications
Specifications TMDS Clock Frequency 225MHz Input Port 1 x HDMI (Female type) Output port 1 x HDMI (Female type) EXT Mode (HDMI input) HDMI Resolution 480i/p, 576i/p, 720p~1080p PC Resolution VGA~WUXGA 3D Resolution Support all 3D timing INT Mode (internal pattern) HDMI Resolution 480i/p, 576i/p, 720p~1080p PC Resolution...
