Summary of Contents for ACME LED-SY40 VW

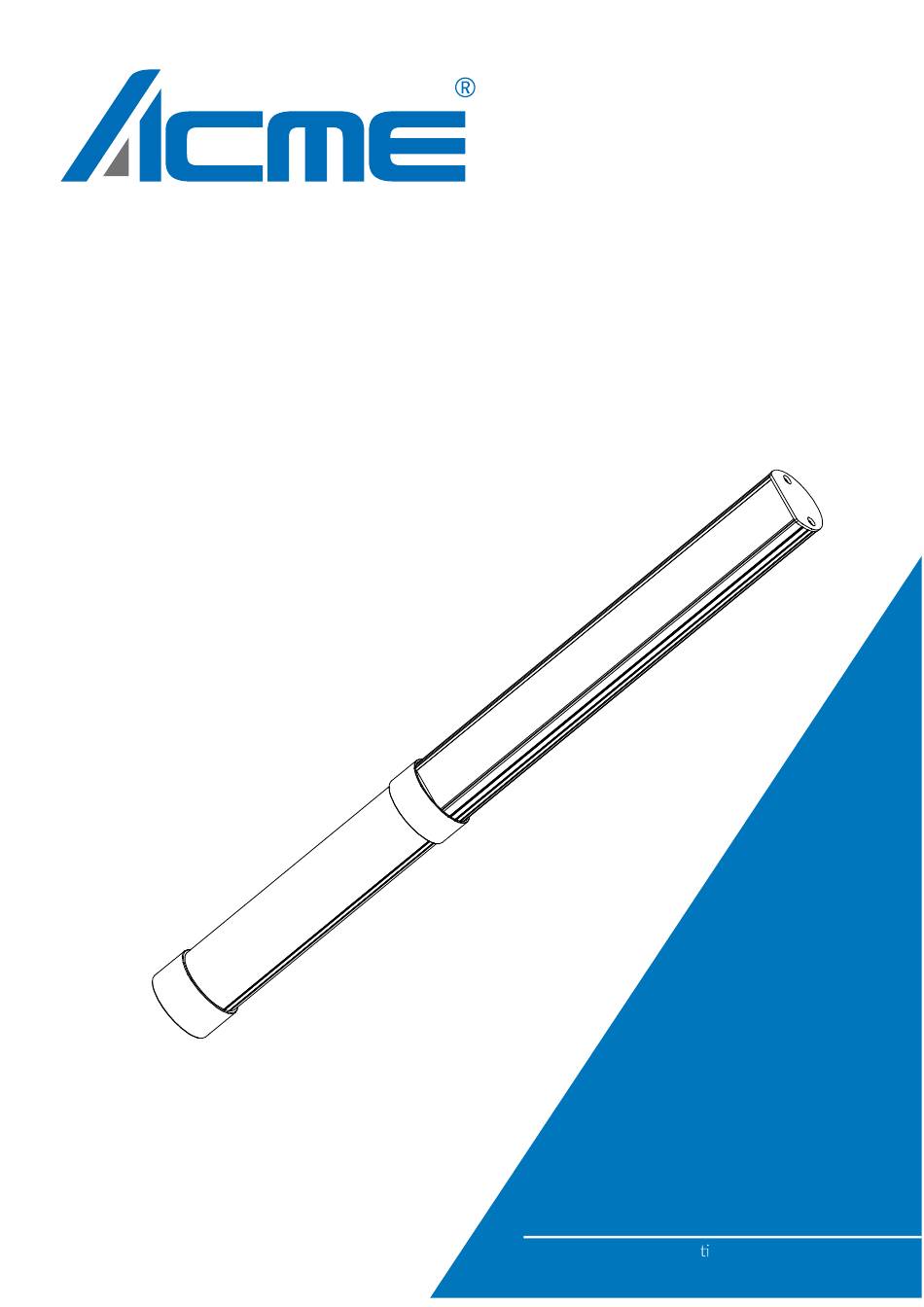

- Page 1 LED-SY40 VW User Manual Please read the instruc on carefully before use...
-
Page 2: Specification
Feature: Soft and even light output with very high CRI 0 ~ 100% smooth dimming Color temperature adjustable from 3000K ~ 5700K Low heat dissipation with reliable operation Stylish and durable aluminum housing Built-in battery, full power continued minimum for 1.5 hours Specification: ... - Page 3 CQS: ≥ ≥ ≥ Weight: 1.5Kgs Dimension/Weight: Ø 56 x 600mm，1.5Kgs Ø 2.2" x 23.6"in, 3.3lbs Photometric diagram:...
-
Page 4: Control Panel
Control Panel 1. Battery DC24V Input Socket: Connects to power. 2. Power: Show the battery status. 3. Button Switch : Turn on/off the brightness of fixture. 4. Warm White Button: Manual adjust WW dimming. 5. Cold White Button: Manual adjust CW dimming. 6. -
Page 5: Installation
Installation: It can be mounted on the professional camera stand. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: The fixture does not work, no light Check the connection of power and main fuse. ... -
Page 7: Declaration Of Conformity
Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. - Page 8 Innovation, Quality, Performance...
