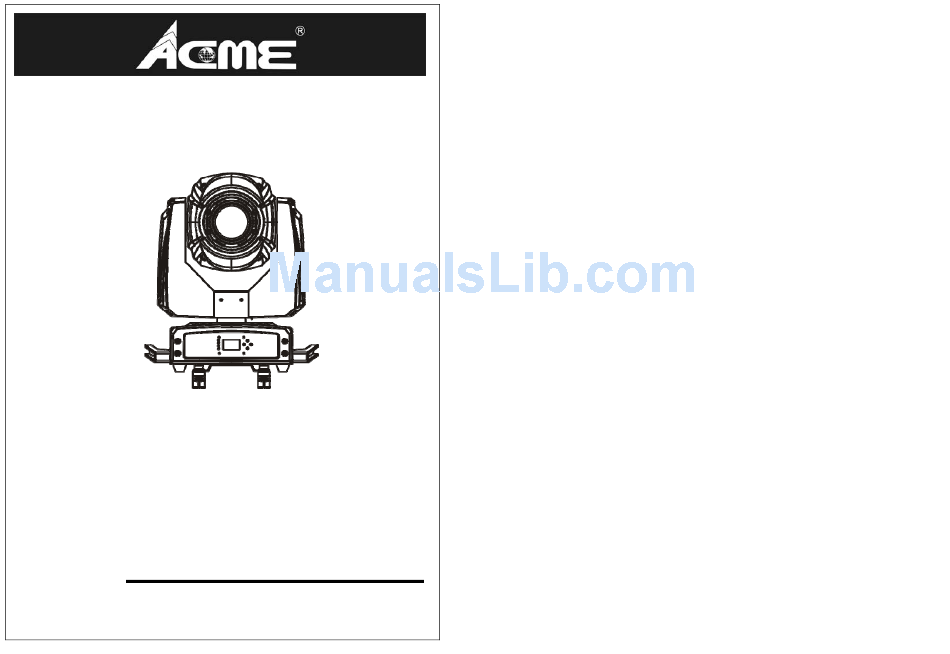

LED-MS600 PE
User Guide
Professional Entertainment Technology

TABLE OF CONTENTS

1.
2.
3.
4.
5.
6.
7.
8.
1-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED-MS600 PE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ACME LED-MS600 PE

  • Page 1: Table Of Contents

    TABLE OF CONTENTS Safety Instruction Technical Specification How To Set The Unit How To Control The Unit DMX 512 Configuration DMX 512 Connection Troubleshooting Fixture Cleaning LED-MS600 PE User Guide Professional Entertainment Technology...
  • Page 2: Safety Instruction

     Do not open the unit within five minutes after switching off. 1. Safety Instruction  The housing, the lenses must be replaced if they are visibly damaged. Please read carefully the instruction, which includes important information about the installation, usage and maintenance. Caution WARNING There are no user serviceable parts inside the unit.
  • Page 3: How To Set The Unit

    3.2 Power On Display 3. How To Set The Unit Every time you turn on the unit, it will run built-in program to reset all motors to 3.1 Control Panel their home position, the display will show as followings, you may hear some noises Front view Rear view for about 20 seconds.
  • Page 4 DMX Functions Enter menu mode, select DMX Functions, press ENTER button to confirm, use UP/DOWN button to select DMX Address or View DMX Value. DMX Address—DMX512 address setting Select DMX Address, press ENTER button to confirm, the present address will blink on the display, use UP/DOWN button to adjust the address from 0 to 512, press ENTER button to store.
  • Page 5 P/T Feedback — pan/tilt Feedback Display Settings Select P/T Feedback, press ENTER button to confirm, present mode will Enter menu mode, select Display Settings, press ENTER button to confirm, use blink on the display, press UP/DOWN button to select No (Pan or tilt’s position UP/DOWN button to select Display Inverse, Backlight Auto Off, Backlight will not feedback while out of step.) or Yes (Feedback while pan/tilt out of Intensity or Temperature unit.
  • Page 6 select Exit or Reset Time, press ENTER button to confirm. Press MENU Fixture Test button back to the last menu or exit menu mode let the unit idle one minute. Enter menu mode, select Fixture Test, press ENTER button to confirm, use UP/DOWN button to select Auto Test or Manual Test Firmware Version Select Firmware Version, press ENTER button to confirm, firmware version...
  • Page 7 3.4 Home Position Adjustment ENTER button to store. Press MENU button to exit. Press MENU button into menu mode, then press the ENTER button for about 3 seconds into offset mode to adjust the home position. Select the function by Iris—Reset Iris ENTER button.
  • Page 8: How To Control The Unit

    -128 to 127, press ENTER button to store. Press MENU button to exit. from -128 to 127, press ENTER button to store. Press MENU button to exit. Color2—Color home position adjust Focus—Focus home position adjust Enter offset mode, Select Color2, press ENTER button to confirm, the present Enter offset mode, Select Focus, press ENTER button to confirm, the present position will blink on the display, use UP/DOWN button to offset the value from position will blink on the display, use UP/DOWN button to offset the value from 0 to...
  • Page 9: Dmx512 Configuration

    5. DMX512 Configuration 6. DMX512 Connection 17 Channels Mode: 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. 2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.
  • Page 10: Troubleshooting

     Always dry the parts carefully. 7. Troubleshooting  Clean the external optics at least every 20 days. Clean the internal optics at least Following are a few common problems that may occur during operation. every 30/60 days. Here are some suggestions for easy troubleshooting: A.
