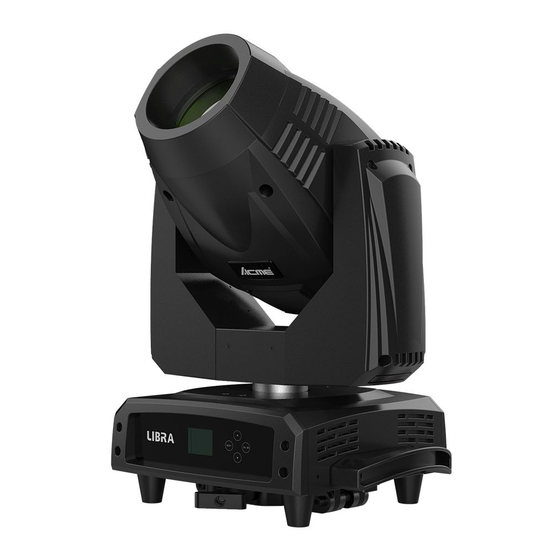

Summary of Contents for ACME Libre

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications ................. 4 3 Control Panel ....................6 4. Color/Gobo and Lamp ..................7 4.1 Color/Gobo ....................7 4.2 Light Source ..................... 8 4.3 Change The Lamp ..................8 4.4 Lamp Replacement Warning ..............10 5.

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in dirty or dusty environment, do clean fixtures regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together twist other cables. ...

  • Page 5: Technical Specifications

    2. Technical Specifications Power Voltage: AC 100~240V, 50/60Hz Power Consumption: 555W Light Source: PHILIPS MSD Platinum 18 R LL Color Temperature: 8000K Zoom Range: Beam Mode: 3°~7° Spot Mode: 5°~32° Wash Mode: 18°~23° Movement: Pan: 540° Tilt: 270° Pan/Tilt Resolution: 16bit Dimmer/Shutter: Smooth dimming from 0-100%;...
  • Page 6 Construction: Display: LCD Color display Date In/Out: 3-pin and 5-pin XLR Power In/Out: Wire/Power Connector in/ out Protection Rating: IP20 Features: Linear motorized zoom Motorized Focus 2 prisms: 8-facet prism+ 6-facet linear prism, rotatable in both directions and overlayable Outstanding color macro effect Independent frost effect Integrated three features: beam, spot, and wash Dimension/Weight:...

  • Page 7: Control Panel

    3 Control Panel Wire Version: POWERCON Version: 1. Display: To show the various menus and the selected function 2. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go forward to move down in the menu ENTER To perform the desired functions...

  • Page 8: Color/Gobo And Lamp

    6. POWER (POWERCON Version): Use to connect to supply power 7. FUSE(T 10A): Protect the unit from damage of over current 8. FIRMWARE UPGRADE: To upgrade the unit firmware 9. POWER SWITCH: Turn On/Off the power 10. POWER (Wire Version): To connect to the mains supply 4.

  • Page 9: Light Source

    4.2 Light Source PHILIPS MSD Platinum 18 R LL Because of its high internal pressure, there might be a risk that the Discharge lamp  would explode during operation. The lamp emits intense UV radiation which is harmful to the eyes and skin. The high luminance of the arc can cause severe damage to the retina if you take a close look at the lamp.
  • Page 10 3. Loosen the screw that holds the lamp in place. Unplug the leads of the lamp and lift the lamp out of its recess, disconnect the lamp and connect a new lamp that must be the same type with the old one. And then place the new lamp into the lamp recess. Finally reinstall the head cover, fastening it securely before reapplying power.

  • Page 11: Lamp Replacement Warning

    4.4 Lamp Replacement Warning When the lamp reaches 300 hours before its service time, the display will flash the message  “Replace Lamp Soon” for up to 5 minutes. During this period, the fixture will still work normally. When the lamp reaches its service time, the display will flash the message “Replace Lamp Now” ...
  • Page 13 DMX Settings To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, DMX Channel Mode, No DMX Status or View DMX Value. DMX Address To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 1 to 494/492, press the ENTER button to store.
  • Page 14 Pan Invert To select Pan Invert, press the ENTER button to confirm. Use the UP/DOWN button to select No (normal) or Yes (pan invert), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. Tilt Invert To select Tilt Invert, press the ENTER button to confirm.
  • Page 15 State/Power On To select State/Power On, press the ENTER button to confirm. Use the UP/DOWN button to select Off (Lamp off while power on) or On (Lamp on while power on), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. Display Settings Enter menu mode, select Display Settings, press the ENTER button to confirm, use the UP/DOWN button to select Display Invert, Backlight Intensity or Temperature Unit.
  • Page 16 Auto Test Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to automatically test pan, tilt, color, gobo, gobo rotation, prism, prism rotation, dimmer, shutter, zoom, focus, frost, and etc. Press the MENU button back to the last menu or exit menu mode after auto test.
  • Page 17 Lamp Time Reset Select Lamp Time Reset, press the ENTER button to set the passcode 050 to reset lamp time, press the MENU button to exit. Temperature Select Temperature, press the ENTER button to confirm, fixture temperature will show on the display, press the MENU button to exit.
  • Page 18 idling 30 seconds. Reset Functions Enter menu mode, select Reset Functions, press the ENTER button to confirm, use the UP/DOWN button to select Pan/Tilt Reset, Effect Reset or All Reset. Pan/Tilt Reset Select Pan/Tilt Reset, press the ENTER button to confirm, use the UP/DOWN button to select No or Yes, press the ENTER button to store.

  • Page 19: Home Position Adjustment

    RDM FUNCTIONS Select the MANUFACTURER menu to display the manufacturer of the fixture. Select the SOFTWARE VERSION menu and the program version number of the fixture will be displayed. Select the DMX START ADDRESS menu to change the DMX 512 address (001-512). Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
  • Page 20 Pan—pan home position adjustment Enter offset mode, Select Pan, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit. Tilt—Tilt home position adjustment Enter offset mode, Select Tilt, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button...
  • Page 21 Gobo2 —Gobo2 home position adjustment Enter offset mode, Select Gobo2, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit. RGobo2 —RGobo2 home position adjustment Enter offset mode, Select RGobo2, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the...

  • Page 22: Control By Universal Dmx Controller

    Focus—Focus home position adjustment Enter offset mode, Select Focus, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit. Frost—Frost home position adjustment Enter offset mode, Select Frost, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER...

  • Page 23: Address Setting

    3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of the units’ power is disconnected. 4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address number is between 1-512.
  • Page 24 19 Channels (Mode 1): CHANNEL VALUE FUNCTION 000-255 0°540° 000-255 PAN FINE TILT 000-255 0°270° 000-255 TILT FINE PAN/TILT Speed 000-255 0%100% Function 000-049 Null 050-059 Enable Auto Color Frost 060-069 Disable Auto Color Frost 070-129 Null 130-139 Lamp On 140-149 Reset XY 150-159...
  • Page 25 045-046 Color 21 047-048 Color 22 049-050 Color 23 051-052 Color 24 053-054 Color 25 055-056 Color 26 057-058 Color 27 059-060 Color 28 061-063 Color 29 064-127 Color wheel indexing 128-189 Counter-Clockwise rotation, fast to slow 190-193 Stop 194-255 Clockwise rotation, slow to fast GOBO1 000-003...
  • Page 26 120-127 Gobo16 shaking 128-189 Counter-Clockwise Rotation Fast to Slow 190-193 Stop 194-255 Gobo shaking slow to fast GOBO2 000-005 Open 006-010 Gobo 1 011-015 Gobo 2 016-020 Gobo 3 021-025 Gobo 4 026-030 Gobo 5 031-036 Gobo 6 037-041 Gobo 7 042-046 Gobo 8 047-051...
  • Page 27 PRISM 2 000-007 No prism2 effect 008-255 Prism2 effect R-PRISM 2 000-127 Index rotation 128-189 Counter-Clockwise rotation, fast to slow 190-193 Stop 194-255 Clockwise rotation, slow to fast ZOOM 000-255 0%100% FOCUS 000-255 0%100% Frost 000-007 008-255 SHUTTER 000-007 Shutter Off 008-015 Open 016-131...
  • Page 28 130-139 Lamp On 140-149 Reset XY 150-159 Reset Effect 160-199 Null 200-209 Reset All 210-229 Null 230-239 Lamp Off 240-255 Null COLOR 000-002 White 003-004 Color 1 005-006 Color 2 007-008 Color 3 009-010 Color 4 011-012 Color 5 013-014 Color 6 015-016 Color 7...
  • Page 29 010-012 Gobo 3 013-015 Gobo 4 016-018 Gobo 5 019-021 Gobo 6 022-024 Gobo 7 025-027 Gobo 8 028-030 Gobo 9 031-033 Gobo 10 034-036 Gobo 11 037-039 Gobo 12 040-042 Gobo 13 043-045 Gobo 14 046-048 Gobo 15 049-055 Gobo 16 056-059 Soft...
  • Page 30 062-067 Gobo 12 068-072 Gobo1 shaking 073-077 Gobo2 shaking 078-082 Gobo3 shaking 083-087 Gobo4 shaking 088-092 Gobo5 shaking 093-097 Gobo6 shaking 098-102 Gobo7 shaking 103-107 Gobo8 shaking 108-112 Gobo9 shaking 113-117 Gobo10 shaking 118-122 Gobo11 shaking 123-127 Gobo12 shaking 128-189 Counter-Clockwise Rotation Fast to Slow 190-193 Stop...

  • Page 31: Error Information

    008-255 SHUTTER 000-007 Shutter Off 008-015 Open 016-131 Strobe slow to fast 132-167 Slow open, fast close 168-203 Fast open, slow close 204-239 Slow open, fast close 240-247 Random strobe 248-255 Open DIMMER 000-255 0%100% 7. Error Information 1. CPU-B/C/D/E Error Check whether the 485 (DATA) leads on the PCB board are install in place or disconnected.
  • Page 32 Check if there is any damage to the circuit of the tilt motor drive board. 5. Tilt Encoder Error Check if the tilt encoder is damaged. Check if the tilt encoder is in poor contact with the lead of the PCB board or disconnected. 6.
  • Page 33 Check if the gobo wheel2 Hall elements is in poor contact with the lead of the PCB board or disconnected. Check if the gobo wheel2 motor is damaged. Check if there is any damage to the circuit of the gobo wheel2 motor drive board. 10.

  • Page 34: Troubleshooting

    Check if the zoom motor is damaged. Check if there is any damage to the circuit of the zoom motor drive board. 14. Lamp Fan1/2/3 Error Check if the lamp fan is not running or measure whether the voltage of the lamp fan is correct. Check if the fan lead is installed or disconnected.

  • Page 35: Fixture Cleaning

    4. Try to use another DMX controller. 5. Check to see if the DMX cables run near or run alongside to high voltage cables that may cause damage or interference to DMX interface circuit. C. One of the channels is not working well 1.
  • Page 36 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55032: 2015; EN 61000-3-2: 2014; EN 61000-3-3: 2013; EN 55035: 2017. &...
