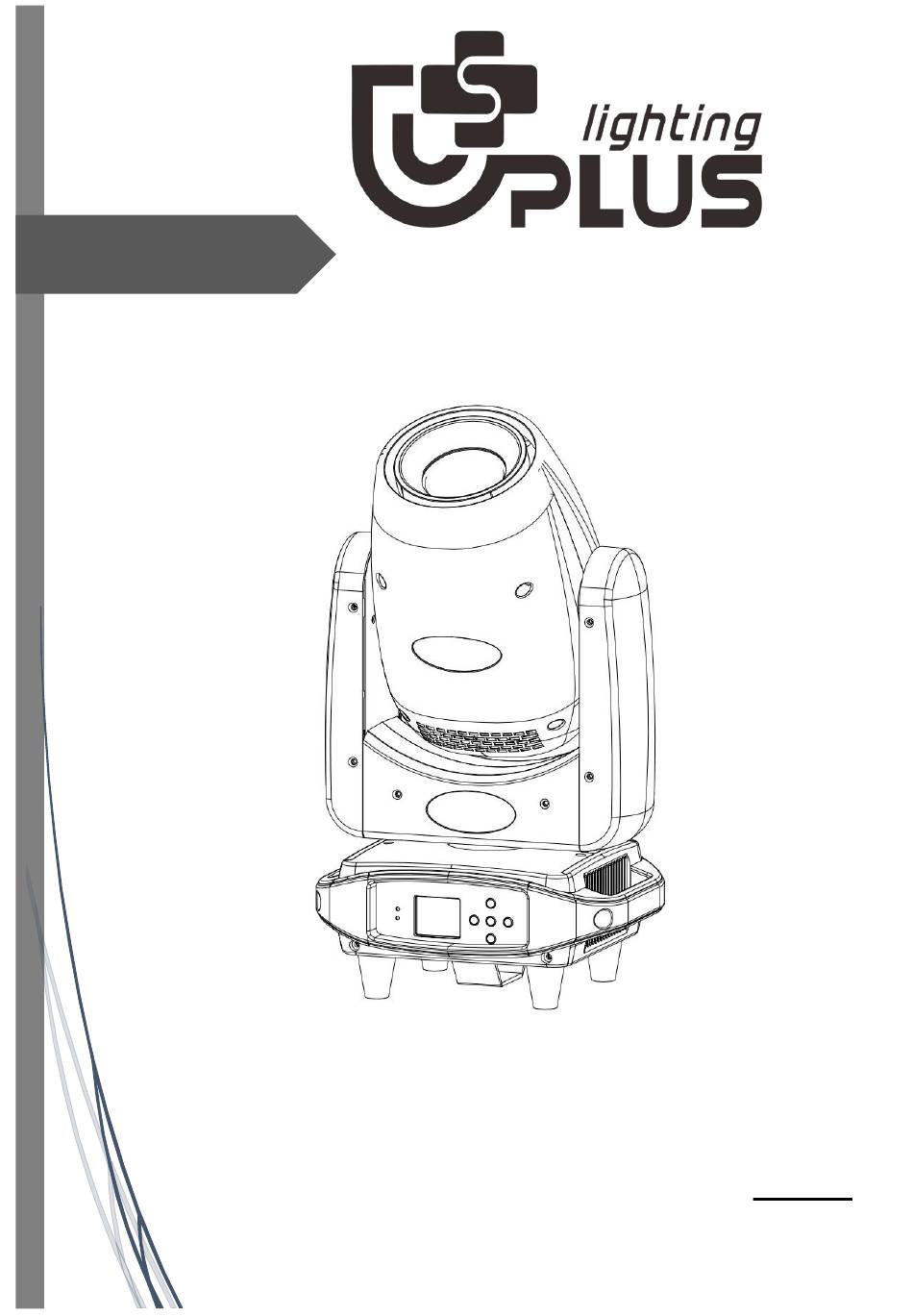

- Page 1 User manual S120 Please read the instructions carefully before use...
- Page 2 TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications…………………………………………………………………………4 Color/gobo wheel …………………………………………………………………………………4-5 Control Menu ………………………………………………………………………………………6-7 DMX Channels ……………………………………………………………………………………7-9 Dimension ……………………………………………………………………………………………9 Trouble Shooting…………………………………………………………………………………10 Fixture Cleaning………………………………………………………… ………………………10 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...
- Page 3 1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •...
- Page 4 fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. •The equipment must be fixed by professionals.
- Page 5 Static Gobo Wheel Rotation GOBO wheel:...
- Page 6 4.Control Menu Operation MAIN SECOND THIRD ADDR Dmx Address 001-512 DMX ctrl Auto Run Sound Ctr1 Mode Scene mode M/S choose Auto/slave Master Language English/Chinese Screen saver Mode1-4 -ON/OFF Display Screen Rot Foward DMX Indicate Mode 1-3 Screen Light 001-512 Scene select 1-10 Scene Time...
- Page 7 Gobe Rot 0-255 0 - 255 Prism1 Frost 0 - 255 Reset 0-255 Pan Inver OFF/ON Tilt Inver OFF/ON Data hold OFF/ON ADUR Scene time RESET Factory Setting Stepper into Error logging Fixture statas Stat Oversion C8.1.0 Light time 00:00h Total time 00:00 h 5.DMX Channels...
- Page 8 130-139 Colour6+colour7 140-149 Colour 7 Color 150-159 Colour7+White 160-205 Rotate forward (fast to slow) 206-208 stop 209-255 Rotage reverse (slow to fast) WHITE 10-19 GOBO1 20-29 GOBO2 Gobo 30-39 GOBO3 40-49 GOBO4 50-59 GOBO5 60-69 GOBO6 70-79 GOBO7 80-89 Shake slow to fast gobo1 90-99 Shake slow to fast gobo2 100-109...
- Page 9 0-127 None CH12 Prism 128-191 Inert prism1 192-255 Rotate reverse (slow to fast) CH13 Focus 0-255 Far to near 0-209 None 210-219 Reset XY motor over 3 second Reset CH14 220-239 Reset effect motor over 3 second 240-255 Reset fxiture over 3 second 6.Dimension...
- Page 10 7.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
