Summary of Contents for Vivo MOUNT-TVMG1

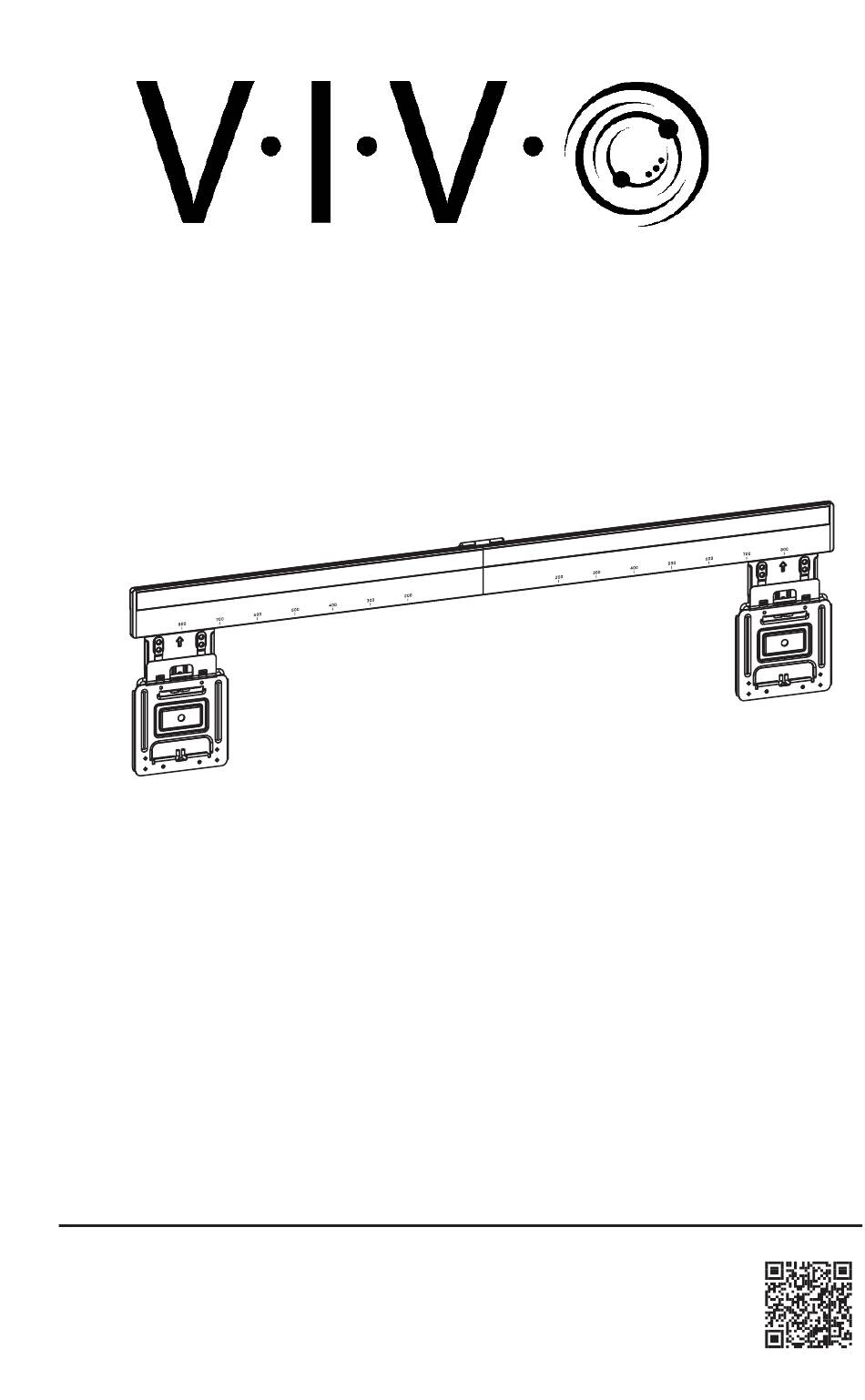

- Page 1 Universal Micro-Gap TV Wall Mount SKU: MOUNT-TVMG1 Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-tvmg1...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) Right Wall Bracket Left Wall Bracket C (x2) D (x2) E (x1) VESA Bracket Mounting Bracket Front Connector F (x1) G (x2) H (x1) Back Connector Kickstand Left Cover I (x1) J (x1) K (x4) Right Cover Level Large Pad... -
Page 4: Included Hardware & Tools
Included Hardware & Tools S-A (x2) M-A (x4) M-B (x4) T-A (x1) M5x5mm Screw M6x14mm Screw M8x16mm Screw 3mm Allen Wrench M-C (x4) M-D (x4) M-E (x4) M-F (x4) M6x30mm Screw M8x35mm Screw M8 Washer Small Spacer W-A (x4) M-G (x4) W-B (x4) W-C (x4) ST6.3x55mm Screw... -
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1 Remove the Rubber inserts from Wall Brackets (A,B) and set aside. Rubber Inserts Insert Back Connector (F) into track of one Wall Bracket, and slide both Wall Brackets Together. Secure by tIghtening the Set screw on the Back Connector with 3mm Allen Wrench (T-A). Install the Front Connector (E) to front of Wall Brackets using M5x5mm Screws (S-A) and a Phillips screwdriver to secure. - Page 6 STEP 2 Follow substeps below to install Mounting Brackets. Remove pre-installed screws on Wall Brackets (A,B) using 3mm Allen Wrench (T-A). Slide Mounting Brackets (D) onto Wall Brackets as shown. Reinstall previously removed screws using 3mm Allen Wrench.
- Page 7 ** PLEASE READ ** Determining Mounting Positioning 1. Mark Ideal TV Position: On your wall, mark the spot where the Bottom Edge (Y) of your TV should be based on your desired display height. 2. VESA Height (Z): Find the distance between the bottom of your TV and the top VESA mounting hole on the back.
- Page 8 STEP 3 Mounting Option 1: Concrete/Brick Mounting Pre-Drilling Instructions Drill mounting holes using illustration below. 3/8” (10mm) Drill Bit 2.4” (60mm) Hole Depth Use Wall Brackets (A,B) to mark desired drilling locations on the wall. Use of a Level (J) is recommended. Press Concrete Anchors (W-B) into the drilled holes.
- Page 9 STEP 3 - Con’t Mounting Option 2: Wood Stud Mounting Pre-Drilling Instructions Drill mounting holes using illustration below. 3/16” (4.5mm) Drill Bit 2.2” (55mm) Hole Depth Use Wall Brackets (A,B) to mark drilling locations on the wall where a stud is located. Use of a Level (J) and stud finder is recom- mended.
- Page 10 STEP 4 Re-insert previously removed Rubber inserts into slots on Wall Brackets. Rubber Insert Press Covers (H,I) into the sides of Wall Brackets (A,B).
- Page 11 STEP 5 Secure VESA Brackets (C) to the top two mounting holes on your TV using appropriate Screws (M-A through M-D), Washers (M-E), and Spacers (M-F,M-G). M-C, M-A, Arrow Arrow Ensure Arrows on VESA Brackets (C) are pointing upwards.
- Page 12 STEP 6 Secure Kickstands (G) to the bottom two mounting holes on your TV using appropriate Screws (M-A through M-D), Washers (M-E), and Spacers (M-F,M-G). M-C, M-A, Remove adhesive backing from Pads (K,L) and apply them to the bottom corners of your TV to fill space between wall and TV.
- Page 13 STEP 7 Slide the Mounting Brackets (D) to match the positions of the VESA Brackets (C) on TV. Hang your TV onto the Mounting Brackets as shown. 2 Person Mounting is Recommended...
- Page 14 STEP 8 Press the TV against the wall. Prop Kickstand (G) to gain access to the back of the TV.
- Page 15 Removing TV from Mount To remove the TV, fully extend from the wall and lift up. 2 Person Dismounting is Recommended...
-
Page 16: Last Updated
LAST UPDATED: 9/23/24 REV1.1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
