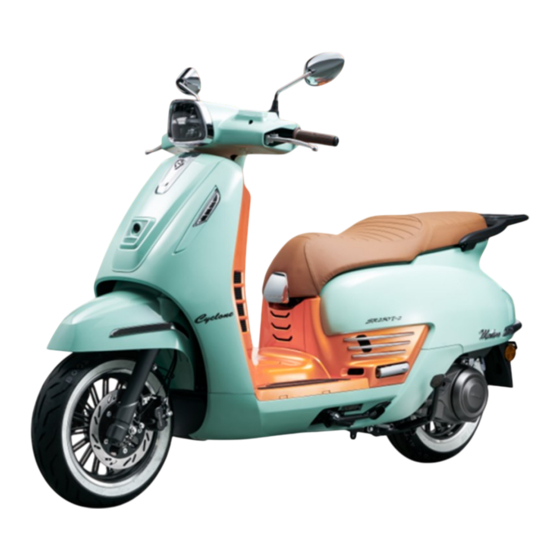

CyClone RT2E Modern 250 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RT2E Modern 250 and is the answer not in the manual?

Questions and answers

Related Manuals for CyClone RT2E Modern 250

Summary of Contents for CyClone RT2E Modern 250

  • Page 2 Dear CYCLONE users: Thank you for your trust and love for Zongshen CYCLONE! Before using this product, please read this instruction manual carefully and correctly master the basic operating functions, usage methods and other common sense of this model. All the data descriptions, technical specifications, performance parameters and other contents published in this instruction manual are compiled based on the latest information of the vehicle.
  • Page 3 Safety Information To ensure the safety of users and others, please strictly follow the safety information and driving steps provided in the instruction manual. Safety information reminds users to pay attention to potential dangers to avoid harm to themselves and others. This instruction manual contains a lot of important safety information, please read it carefully.
  • Page 4 Table of Content Driving Operations................Preface New Car Operation................Safety Information Safe Driving Guide................Table of contents Regular maintenance schedule............Notes......................Checking and changing engine oil............Vehicle Identification Number (VIN) and Engine Number.................... Air filter cleaning..................Vehicle Introduction................Coolant Inspection................. Smart Key....................
  • Page 5 User Manual Precautions Before using this product, please read this instruction manual carefully! Notice Danger 1. Strictly abide by traffic regulations and drive safely. 1.After unpacking, please check the accessories and various materials included in the vehicle according to the packing list.
  • Page 6 User Manual Vehicle Identification Number (VIN) and Engine Number The vehicle identification number (VIN), engine number and vehicle certificate are used to apply for a driving license and motorcycle household registration 3. The engine number is printed on the left 1.
  • Page 7 User Manual Vehicle Introduction 1. Rearview mirror 2. Left steering handle 3. Left combination switch 4. Instrument combination 5. Right combination switch 6. Fueling handle 7. Coolant filling port 8. Ignition lock 9. Helmet hook 10. Front storage box . 6 .
  • Page 8 User Notice SR250T-2 Full Vehicle Introduction 1. Rear armrest 2. Seat cushion 3. Rear wheel 4. Muffler 5. Left rear pedal 6. Fuel filling port 7. Right front pedal 8. Headlight 9. Right front shock absorber 10. Front wheel . 7 .
  • Page 9 User Notice SR250T-2 Full Vehicle Introduction 1. Headlight 2.Front wheel 3.Left front shock absorber 4. Front disc brake 5. Left front pedal 6. Side bracket 7. Seat cushion 8. Left rear pedal 9. Engine 10. Air filter 11. Rear armrest 12. Tail light...
  • Page 10 User Notice SR250T-2A Vehicle Introduction 1. Trunk 2. Rear armrest 3. Seat cushion 4. Rear wheel 5. Muffler 6. Left rear pedal 7. Fuel filling port 8. Headlight 9. Right front shock absorber 10. Front wheel . 9 .
  • Page 11 User Notice SR250T-2A Vehicle Introduction 1. Headlight 2.Front wheel 3.Left front shock absorber 4. Front disc brake 5. Left front pedal 6. Side bracket 7. Seat cushion 8. Left rear pedal 9. Main bracket 10. Engine 11. Rear armrest 12. Tail light .
  • Page 12 User Notice Smart Key 1.Remote control key button functions: 1.Remote control unlocking: Short press the unlock button within 1s, after the turn signal flashes twice in succession, you can press the ignition switch to lock the power, and the remote control distance is controlled within 30 meters.
  • Page 13 User Manual Ignition switch Press the ignition switch lever to turn on the power of the whole vehicle. The ignition switch mainly controls the ignition circuit and lighting circuit. Its operation is as follows: name Functional Description Press the power button and the blue light will turn on. "Bit 1.
  • Page 14 User Notice Fuel tank The fuel tank capacity is: 13L, and the fuel used is ≥92 unleaded gasoline. name Instructions 1. Fuel tank cap Turn 90° counterclockwise to open the fuel tank cap. (open) Align the latch on the fuel tank cap with the groove 2.
  • Page 15 User Manual name Instrument indication Functional Description When the left turn signal is on, ”The lights flash. 1.Left turn indicator When the ignition system circuit is turned on, the normal working condition The indicator light stays on; when the 2. EFI fault indicator light engine is started, it works normally If there is a fault, the light will stay on.
  • Page 16 User Manual Driving recorder (optional) set up disconnect disconnect Recorder Recorder The main functions of the driving recorder are as follows: 1.When the recorder is turned on, the host screen will display SSID: MT68- XXXX, PWA: 12345678. 2.Select the WIFI signal named MT68-XXXX on your mobile phone, the initial password is 12345678, then open the Boshi Technology mobile APP to successfully connect, and the WIFI icon on the host...
  • Page 17 User Manual Photographs Loop Video Short press to view image Slide/Long press to select Short press to play Select Download or Video/Long press Delete a picture Select Download or Delete Video Downloaded videos Emergency Video/Picture Short press to view Lock Video Edit Video Long press to select Delete Video...
  • Page 18 User Manual Left combination switch name Instructions The main functions of the left switch are as follows: When a motorcycle needs to overtake at night, press this "open 1. Overtaking light switch Off to warn of vehicles ahead. Move the turn signal button to " "...
  • Page 19 User Manual Right combination switch The main functions of the right switch are as follows: name Instructions When the vehicle is powered on, press and hold the TCS switch for 1.TCS switch more than three seconds. The TCS off light is always on; if you continue to press and hold the TCS switch for more than three seconds, the TCS off light will go out.
  • Page 20 User Manual Control part The brakes of this model are front and rear disc configuration, and the braking performance is safe and reliable. Braking is related to the safety of life and property, and must be adjusted and maintained correctly regularly to achieve the purpose of safe driving.
  • Page 21 User Manual Control part This motorcycle has a dry centrifugal clutch, which is an automatic clutch, continuously variable transmission and fixed engagement. If the automatic clutch continuously variable transmission slips or is not completely separated, please go to a professional repair station or our company's authorized repair service center for maintenance.
  • Page 22 User Manual Control part name Instructions 4. Storage box Used to store daily necessities such as vehicle tools Open the storage box to see the USB port for mobile phone 5.USB interface charging Power and other functions, USB specification is 5V2A. .
  • Page 23 User Manual Load Limit This model is designed to carry only one driver and one passenger. Please strictly follow the load requirements below, otherwise it will affect the safety and stability of the motorcycle. Factory-specified maximum vehicle payload: 150kg. The maximum load of the rear shelf is: 5kg; The maximum load capacity of the helmet hook is: 1kg.
  • Page 24 User Manual EFI system Notice The main function of the electronic fuel injection system is to atomize the fuel supplied from the fuel tank, mix it with air to form a uniform mixture and 1. It is strictly forbidden to disassemble the ECU and other EFI components when the key is introduce it into the combustion chamber.
  • Page 25 User Manual EFI system EFI system structure diagram Throttle Position Sensor Idle speed control valve Throttle body Crankshaft Position Sensor Crankshaft position Target wheel Ignition coil Heated oxygen sensor Engine Control Engine temperature sensor Module M3.5 Nozzle Intake air temperature/pressure integrated sensor WCPR Oil Fault diagnosis switch Pressure Regulator...
  • Page 26 User Manual EFI failure Possible causes Common Failures Classification Troubleshooting methods Check and tighten the battery The battery power supply is not connected properly eTshe fuse is in poor contact or has blown Check and replace the fuse Electrical applianc Oil pump relay is broken Check and replace the oil pump relay Oil pump not working...
  • Page 27 User Manual Spark plug ignition failure Idle speed is too high or too slow engine Check connectors or replace spark plugs and spark plug caps The spark plug cap and the spark plug are in poor contact stable Check engine valve clearance Engine valve clearance is too small Spark plug ignition failure Check connector or replace spark plug or spark plug cap...
  • Page 28 Operation Guide Things to check before driving Before driving, you should check according to the following requirements to ensure the user's safe driving and smooth driving. project examine Remark Serial number According to the mileage and working conditions, Fuel System Check the fuel capacity and check whether the fuel valve is leaking.
  • Page 29 Operation Guide Starting and preheating When starting electrically, the starting time should not exceed 5 seconds each time, and the interval between each time should not be less than 10 seconds. If three consecutive starts fail, the engine should be checked. The starting and preheating steps for a cold engine are as follows: 1.Turn on the ignition lock and check whether the motorcycle instrument indicator lights are working normally.
  • Page 30 Operation Guide Starting and preheating 3.Press the electric start button to start the motorcycle. 4.After starting, preheat the motorcycle at idle speed for 3 to 5 minutes. The motorcycle can be driven normally only after it is preheated. warn 1. In order to extend the service life of the motorcycle, when driving in a cold state, please be sure to preheat it for 3 to 5 minutes before driving, and do not drive at high speeds.
  • Page 31 Operation Guide Driving Operation 1.After starting and preheating, hold the brake handle, retract the main side stand, and put the motorcycle into braking state to prevent sliding. 2.Release the brake handle and slowly turn the accelerator handle to accelerate; start the motorcycle, and when it is running smoothly, you can put your feet back on the pedals.
  • Page 32 Operation Guide New car operation After purchasing a new motorcycle, users should pay attention to the running-in of the new motorcycle (the first 1000km is the running-in period, and the odometer reading shall prevail). The running-in of a new motorcycle directly affects the service life of the motorcycle, so users should control the speed within 6500r/min (the speed shall not exceed 50km/h, as determined by the speedometer) within the first 1000km.
  • Page 33 Operation Guide Safe driving guidance 1.Precautions for driving up and down slopes When driving on winding and undulating mountain roads, adjust the driving speed according to the actual situation to avoid overloading the engine. ① When going up a steep slope, you should increase the throttle in advance to increase the engine output power to prevent the motorcycle from stalling. ②...
  • Page 34 Operation Guide Safe driving guidance ②. During driving, keep your fingers on the brake handle to prevent emergencies. When driving after wading or washing the car, drive at a low speed and lightly hold the front and rear brake handles intermittently to dry the front and rear brakes.
  • Page 35 Maintenance Regular maintenance schedule Odometer reading km Maintenance cycle Every 5000km Every 10000km Every 20000km Running-in period: 1000km Remark Maintenance items Crankcase oil ※ Replace every 300km replace Replace every 10000km Gearbox lubricant ※ spark plug※ Check/clean/replace (every 10000km or when a fault occurs) Air filter ※...
  • Page 36 Maintenance Checking and replacing engine oil Replace the oil after warming up for a few minutes. Please change the oil strictly according to the standards. 1. Take out the oil dipstick and check whether the oil is black or deteriorated. Check whether the oil level is below the lower limit. If so, add oil to the level between the upper and lower limits.
  • Page 37 Maintenance Air filter cleaning When the air filter element is clogged with dust, the resistance of the intake system will increase, the mixture will be too rich, the power will decrease, and the fuel consumption will increase. Therefore, the filter element should be checked, cleaned and replaced regularly 1.Remove the air filter element.
  • Page 38 Maintenance Coolant inspection 1.The antifreeze used by our company is ethylene glycol type, which is a slightly toxic liquid. The ones sold are usually dyed, mostly blue and green, while the original ones from our company are red liquid. 2.It is recommended to add genuine antifreeze from our company. Please pay attention to the Production date, the shelf life at room temperature is 2 years.
  • Page 39 Maintenance Spark plug inspection and adjustment Remove the spark plug. If the spark plug insulator skirt is grayish white, it means the engine is overheated. This is because the spark plug has a low heat value or the spark plug is screwed in too long. You should replace the spark plug with the same model. If the spark plug insulator is dark black or has serious oil stains and dark black carbon deposits on the surface, it means the combustible mixture is too rich.
  • Page 40 Maintenance Throttle cable adjustment Adjust the throttle cable by turning the adjusting nut to achieve the correct free travel of the throttle handle. 1.When the free travel of the throttle handle is greater or less than the standard value, it needs to be readjusted. 2.Method for adjusting the free travel of the throttle wire: loosen the locking nut, turn the adjusting nut in or out until the specified free travel is reached, and tighten the locking nut.
  • Page 41 Maintenance Front and rear brake inspection The front and rear brakes of this model adopt disc configuration, which has the advantages of stable braking performance, safety and reliability, labor saving and good heat dissipation. 1.When the free travel of the brake handle is greater or less than the standard value, it needs to be readjusted.
  • Page 42 Maintenance Wheel inspection Spoke hub inspection/adjustment Inspection method: Check whether the spoke nut is loose or broken. Use a torque wrench or pinch the spoke with your hands to make sure it is tight and not loose. Treatment method: 1. If there are less than 4 loose spokes, tighten the loose spokes directly to the standard torque;...
  • Page 43 Maintenance Battery This vehicle uses a battery (wet-charged), the configuration specifications of this vehicle are: 12V11Ah, and it adopts full DC power supply. Battery (wet-charged) Valve-regulated wet-charged maintenance-free lead-acid battery does not need to be filled with liquid. Confirm the initial voltage before use. When the terminal voltage of the battery is below 12.60 in the full voltage state, the battery must be charged and used after it is fully charged.
  • Page 44 Maintenance Replacement of fuse Adjustment of electric horn A fuse is connected in series during battery charging and discharging. When the After the motorcycle has been running for a period of time, the electric horn fixing current exceeds the specified value, the fuse will automatically blow to protect the nut and adjustment screw may become loose, causing the electric horn to sound battery and electrical components.
  • Page 45 Maintenance Cleaning and storage 1. Motorcycle cleaning (1)Before cleaning the vehicle, the engine must be turned off. After the engine has cooled down, plug the exhaust outlet at the rear of the exhaust pipe and then rinse the outside of the vehicle. When cleaning, be careful not to use too high a pressure, otherwise the grease (such as wheel bearings, steering column bearings, oil seals, etc.) will be washed away.
  • Page 46 Technical specifications and performance parameters project SR250T-2Specifications/Parameters SR250T-2ASpecifications/Parameters 2050mm×770mm×1145mm 2180mm×770mm×1145mm Outer dimensions (length x width x height) 1410mm Wheelbase 120mm Minimum ground clearance 4500mm Minimum turning circle diameter 162kg 166kg Vehicle curb weight 150kg Maximum payload ZS1P73MM-S Engine Model Engine Type Single cylinder, four stroke, liquid cooling 73mm×59mm Bore x stroke...
  • Page 47 Electrical Schematics . 46 .
  • Page 48 . 47 .
