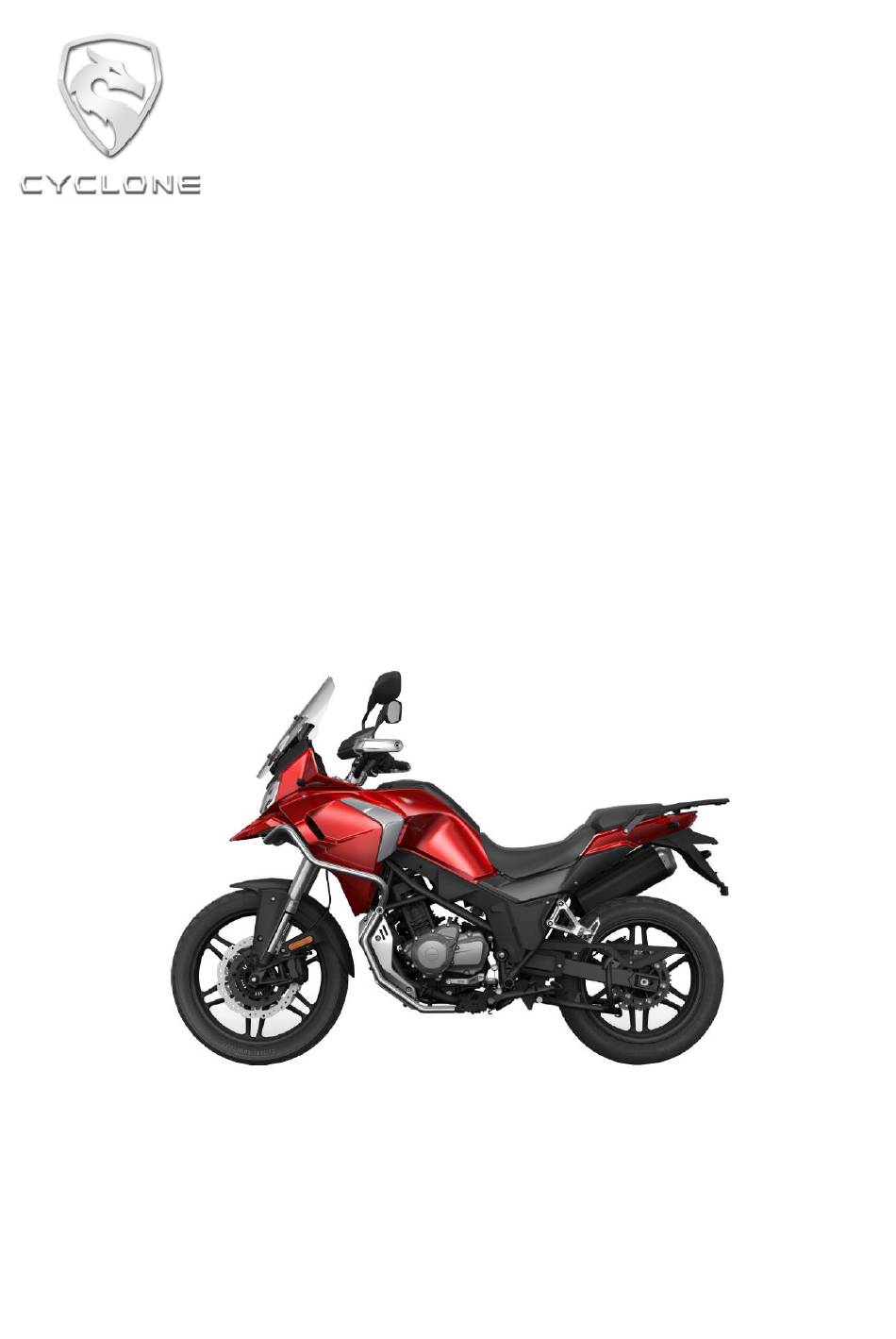

  • Page 1 User Manual of CYCLONE R X6 TFT Intelligent Instrument...

  • Page 2: About Product

    CYCLONE Motorcycle About product RX401 intelligent instrument has two UI effects for switching. Each UI effect is divided into high beam and night modes. High beam and night display modes are switched according to the light intensity. Photosensitive parameter range: >200lux for high beam mode; <200lux for night mode, error 10% The manual is mainly composed with high beam effect.
  • Page 3 RX401 Model: RX401 CYCLONE Motorcycle Description of interface Description of interface Icon Interpretation Fuel volume Vehicle speed Revolution speed Water temperature See detail on page 3/4 for description of other keys and caution lamps.
  • Page 4 RX401 Model: RX401 CYCLONE Motorcycle Description of interface Description of interface Icon Interpretation Left steering lamp Right steering lamp Engine fault Ambient lamp High beam lamp Engine oil pressure alarm Photosensitive sensor Gear (Gear N, also known as neutral gear)
  • Page 5 RX401 Model: RX401 CYCLONE Motorcycle Icon Interpretation Time Motorcycle information display and fault alarm pop-up window Fuel volume logo Vehicle speed Gear (Gear 1, Gear 2, Gear 3, Gear 4, Gear 5, Gear 6 and Gear N) Water temperature...
  • Page 6 RX401 Model: RX401 CYCLONE Motorcycle Description of setting interface Description of interface Icon Interpretation Vehicle speed Total mileage Revolution speed Fuel volume My Vehicle Setting Water temperature See detail on page 3/4 for description of other keys and caution lamps.
  • Page 7 RX401 Model: RX401 CYCLONE Motorcycle Description of setting interface Description of interface Icon Interpretation My Vehicle (title switching) Battery voltage Front wheel tire pressure / temperature Motorcycle appearance Tire pressure learning (title switching) Rear wheel tire pressure / temperature Coolant temperature Page up See detail on page 3/4/5 for description of other keys and caution lamps.
  • Page 8 RX401 Model: RX401 CYCLONE Motorcycle Description of setting interface Description of interface Icon Interpretation Front wheel (ID, front wheel tire pressure and temperature) Rear wheel (ID, rear wheel tire pressure and temperature) See detail on page 3/4/5/6 for description of other keys and caution lamps.

  • Page 9: Interface Information

    RX401 Model: RX401 CYCLONE Motorcycle Description of cellphone interconnection interface Interface information Icon Interpretation Cellphone mirror display area Vehicle speed Revolution speed See detail on page 3/4/5 for description of other keys and caution lamps.
  • Page 10 RX401 Model: RX401 CYCLONE Motorcycle Description of cellphone interconnection interface Press [MODE key] for switching to cellphone interconnection interface, keep your cellphone online and please scan QR code at the upper side of the interface with your cellphone to download Carbit Ride APP.
  • Page 11 RX401 Model: RX401 CYCLONE Motorcycle Description of setting interface Description of interface Icon Interpretation Setting (main title) Left and right switching arrow setting option (when switching to end option, left arrow shows gray display) OBD/ Setting function option (version information, time, display...
  • Page 12 RX401 Model: RX401 CYCLONE Motorcycle MODE Description of panel MODE MODE Press [MODE key] for cyclic switching: travel mode, sport mode, cellphone interconnection and setting. Refer to processes in the following logic diagram: Press [MODE key] Press [MODE key] Press [MODE key]...
  • Page 13 RX401 Model: RX401 CYCLONE Motorcycle Description of setting [Main menu] Press [SEL key] for cyclic switching: My Vehicle, setting option. Refer to processes in the following logic diagram: Press [SEL key] Setting My vehicle Press [SEL key] Press switching confirm option and then press [SEL key] for entering: My Vehicle sub-menu.
  • Page 14 RX401 Model: RX401 CYCLONE Motorcycle Description of [My Vehicle] setting Press [SEL key] for switching: My Vehicle / tire pressure learning option Refer to processes in the following logic diagram: Press [SEL key] Tire pressure learning My vehicle Press [SEL key]...
  • Page 15 RX401 Model: RX401 CYCLONE Motorcycle Description of [Tire pressure learning] setting Press [SEL key] for switching: my vehicle / tire pressure learning option Press to switch to [Tire pressure learning] option and then press and hold [SEL key] for entering: tire pressure learning sub-menu.
  • Page 16 RX401 Model: RX401 CYCLONE Motorcycle Description of setting [Main menu] Press [SEL key] for cyclic switching: My Vehicle, setting option. Refer to processes in the following logic diagram: Press [SEL key] My vehicle Setting Press [SEL key] Press switching confirm option and then press and hold [SET key] for entering: setting sub-menu.
  • Page 17 RX401 Model: RX401 CYCLONE Motorcycle Description of [Setting menu] Press [SEL key] for cyclic switching: setting function option (version information, time, display adjustment, cellphone platform, driving information, OBD fault, ambient lamp status, language, metric system / British system switching, maintenance and factory reset) scrolling switching.
  • Page 18 RX401 Model: RX401 CYCLONE Motorcycle Description of setting menu [Version information] Press [SEL key] for switching: version information. Refer to processes in the following logic diagram: Version information (highlighted content) Press [SEL key] Time (highlighted content) Press [SEL key] Display adjustment...
  • Page 19 RX401 Model: RX401 CYCLONE Motorcycle Description of setting menu [Time] Press [SEL key] for switching: time. Refer to processes in the following logic diagram: Version information (highlighted content) Hour adjustment Minute adjustment Press [SEL key] Press and hold SEL key...
  • Page 20 RX401 Model: RX401 CYCLONE Motorcycle Description of setting menu [Display adjustment] Press [SEL key] for switching: display adjustment. Refer to processes in the following logic diagram: Version information (highlighted content) Press [SEL key] Press and hold SET key Press [SEL key]...
  • Page 21 RX401 Model: RX401 CYCLONE Motorcycle Description of setting menu [Cellphone platform] Press [SEL key] for switching: cellphone platform. Refer to processes in the following logic diagram: Version information (highlighted content) Press [SEL key] Time (highlighted content) Press [SEL key] Display adjustment...
  • Page 22 RX401 Model: RX401 CYCLONE Motorcycle Description of setting menu [Driving information] Press [SEL key] for switching: driving information. Refer to processes in the following logic diagram: Version information (highlighted content) Press [SEL key] Time (highlighted content) Press [SEL key] Press and hold SET key...
  • Page 23 RX401 Model: RX401 CYCLONE Motorcycle Description of setting menu [OBD fault] Press [SEL key] for switching: OBD fault. Refer to processes in the following logic diagram: Version information (highlighted content) Press [SEL key] Time (highlighted content) Press [SEL key] Display adjustment...
  • Page 24 RX401 Model: RX401 CYCLONE Motorcycle Description of setting menu [Ambient lamp status] Press [SEL key] for switching: ambient lamp status. Refer to processes in the following logic diagram: Version information (highlighted content) Press [SEL key] Time (highlighted content) Press [SEL key]...
  • Page 25 RX401 Model: RX401 CYCLONE Motorcycle Description of setting menu [Language] Press [SEL key] for switching: language. Refer to processes in the following logic diagram: Version information (highlighted content) Press [SEL key] Time (highlighted content) Press [SEL key] Display adjustment (highlighted content)
  • Page 26 RX401 Model: RX401 CYCLONE Motorcycle Description of setting menu [Metric system & British system switching] Press [SEL key] for switching: metric system & British system switching. Refer to processes in the following logic diagram: Version information (highlighted content) Press [SEL key]...
  • Page 27 RX401 Model: RX401 CYCLONE Motorcycle Description of setting menu [Maintenance] Press [SEL key] for switching: maintenance. Refer to processes in the following logic diagram: Version information (highlighted content) Press [SEL key] Time (highlighted content) Press [SEL key] Display adjustment (highlighted content)
  • Page 28 RX401 Model: RX401 CYCLONE Motorcycle Description of setting menu [Factory reset] Press [SEL key] for switching: factory reset. Refer to processes in the following logic diagram: Version information (highlighted content) Press [SEL key] Time (highlighted content) Press [SEL key] Display adjustment...
