Summary of Contents for BZBGEAR BG-8K-HS41A

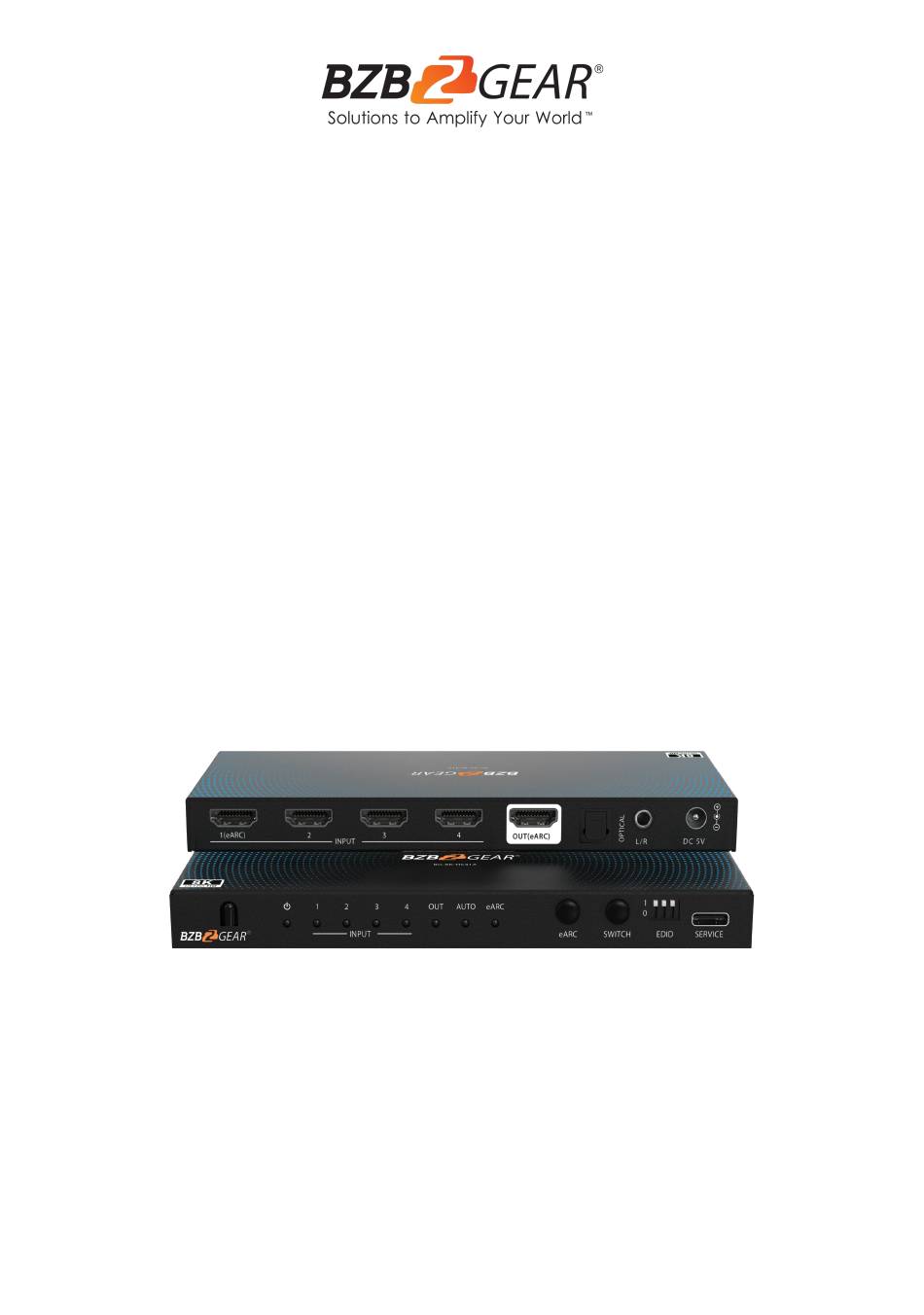

- Page 1 BG-8K-HS41A 48Gbps 4x1 Switcher with ARC/eARC Function User Manual...
- Page 2 BZBGEAR BG-8K-HS41A PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
- Page 3 BZBGEAR BG-8K-HS41A PRODUCT MANUAL Statement Safety Precaution Surge protection device recommended Introduction Features Packing List Specifications Operation Controls and Functions Rear Panel IR Remote Connection Diagram (Example 1) Connection Diagram (Example 2) Connection Diagram (Example 3) Troubleshooting Tech Support Warranty...
- Page 4 ● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards.

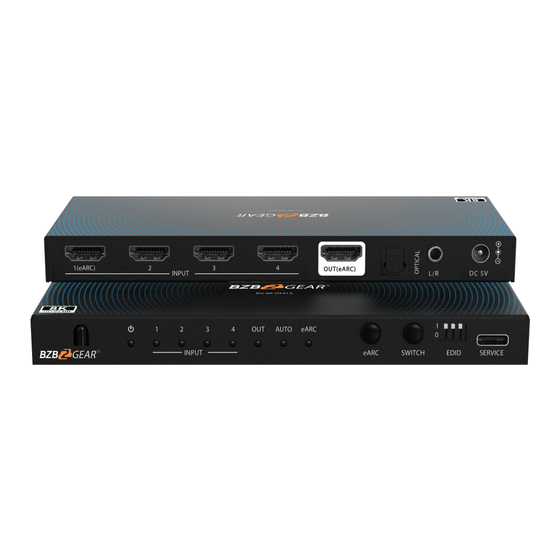

- Page 5 BZBGEAR BG-8K-HS41A PRODUCT MANUAL Introduction The BG-8K-HS41A 48Gbps 4x1 Switcher allows you to switch between four HDMI source signals on a single HDMI display, supporting video resolutions up to 8K@60Hz 4:2:0. It features advanced EDID management, CEC control, ARC/eARC, and audio de-embedding with output options through optical and analog audio ports.
- Page 6 BZBGEAR BG-8K-HS41A PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Audio Latency No Latency Video Latency No Latency Up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, Video Resolution 4K@120Hz 4:4:4 12bit...
- Page 7 BZBGEAR BG-8K-HS41A PRODUCT MANUAL Recommended HDMI Cable 4K24 1080P Video 4K60 Resolution 2m/6.6ft 8m/26f 12m/39ft 15m/49ft HDMI Cabe (Ultra HDMI Length 2.1) (HDMI in / out) The use of “Premium High Speed HDMI” cables is highly recommended. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
- Page 8 BZBGEAR BG-8K-HS41A PRODUCT MANUAL Operation Controls and Functions Front Panel Name Function Description IR Window IR input signal receiving window. The red LED is on when the device is powered on. Power LED IN LED When the HDMI IN 1/2/3/4 port is selected as the signal (1~4) source input channel, the corresponding green LED will be on.
- Page 9 BZBGEAR BG-8K-HS41A PRODUCT MANUAL Rear Panel Name Function Description HDMI input ports, connected to HDMI source devices such as DVD, PS4, or Set-top Box with HDMI cable. Note: When the ARC/eARC function is turned off, connect the IN 1/2/3/4 “IN 1(eARC)” port to the HDMI source device to work as a signal input port;...
- Page 10 BZBGEAR BG-8K-HS41A PRODUCT MANUAL IR Remote · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
- Page 11 BZBGEAR BG-8K-HS41A PRODUCT MANUAL Connection Diagram (Example 1) When the ARC/eARC function is turned off, the connection diagram is as follows. In this situation, the optical audio or L/R audio is from the selected input channel. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
- Page 12 BZBGEAR BG-8K-HS41A PRODUCT MANUAL Connection Diagram (Example 2) When the ARC/eARC function is enabled, select input port 1 by pressing the "SWITCH" button on the front panel or the "1" button on the IR remote. Then, connect the "IN 1 (eARC)"...
- Page 13 BZBGEAR BG-8K-HS41A PRODUCT MANUAL Connection Diagram (Example 3) When the ARC/eARC function is enabled, select input port 2, 3, or 4 by pressing the “SWITCH” button on the front panel or using the buttons on the IR remote. If you connect the “IN 1(eARC)”...
- Page 14 BZBGEAR BG-8K-HS41A PRODUCT MANUAL Troubleshooting Problems Causes Solutions No Power / All LED off Power supply not connected, Check if the power supply is connected fully, or wrong power connected correctly and the supply. output voltage value is within recommended specifications.
- Page 15 1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com.
- Page 16 Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specifications and information in this manual are for reference only and subject to change...
