BG-8K-88MA
48Gbps 8K 8x8 HDMI Matrix
User Manual

Advertisement

Table of Contents
loading

Related Manuals for BZBGEAR BG-8K-88MA

Summary of Contents for BZBGEAR BG-8K-88MA

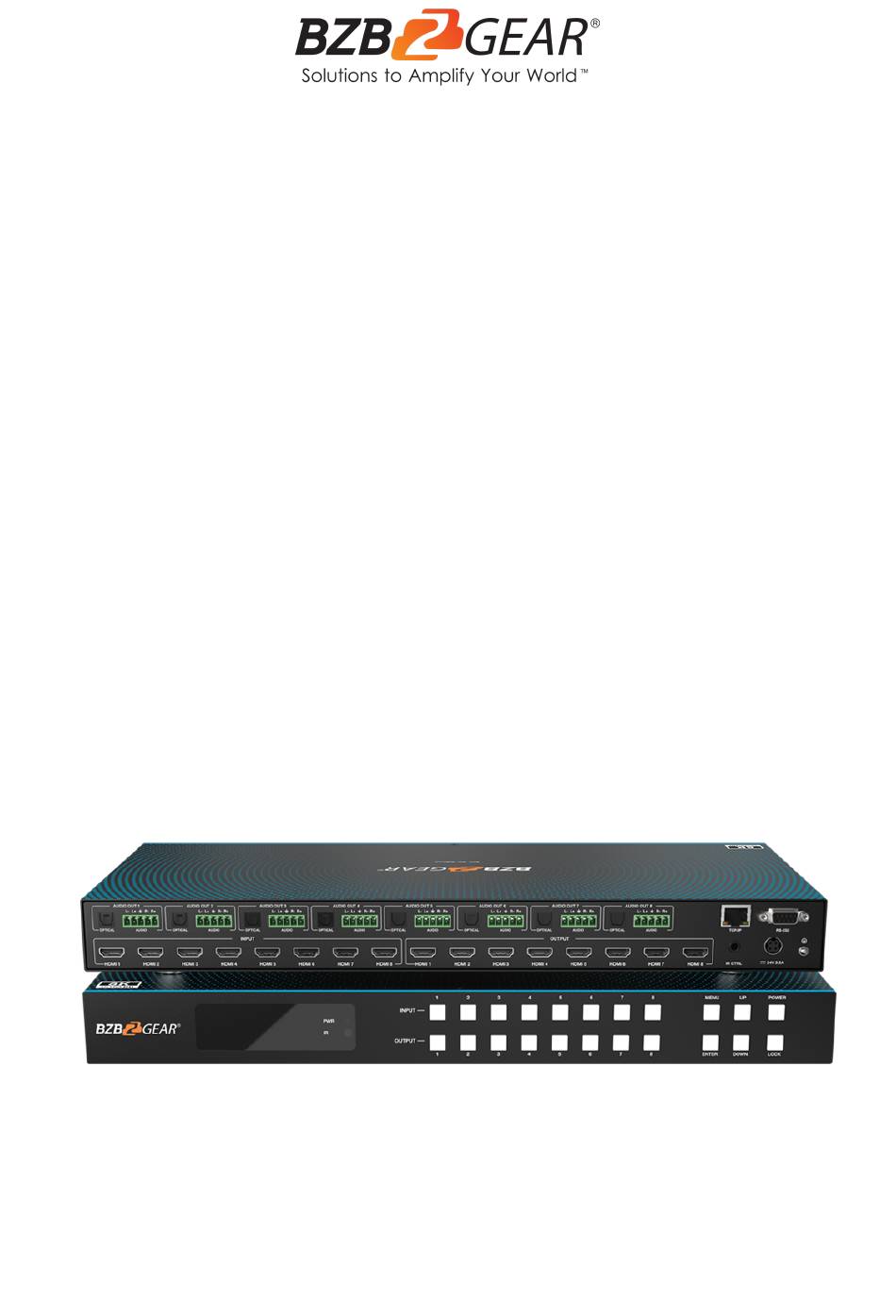

  • Page 1 BG-8K-88MA 48Gbps 8K 8x8 HDMI Matrix User Manual...
  • Page 2 BZBGEAR BG-8K-88MA PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-8K-88MA PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Package Contents Specifications Interface Descriptions IR Remote and Use IR Cable Pin Assignment EDID Management Web GUI User Guide Status Page Matrix Page Input Page Output Page Ext-Audio Page...

  • Page 4: Statement

    ● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards.

  • Page 5: Introduction

    LPCM 7.1, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio are all compatible. The BG-8K-88MA is capable of matrixing any of the 8 HDMI sources to any connected HDMI display. It further supports 8K to 4K or 8K/4K to 1080p downscaling for each HDMI output.

  • Page 6: Specifications

    BZBGEAR BG-8K-88MA PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 1200MHz/48Gbps Video Resolution Up to 8K60Hz 4:2:0, 8K30 Hz 4:4:4 and 4K120 4:4:4 Color Space RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 Color Depth 8/10/12-bit HDR Formats...

  • Page 7: Interface Descriptions

    BZBGEAR BG-8K-88MA PRODUCT MANUAL Interface Descriptions Name Description HDMI Input HDMI input ports 1 - 8 Optical Output S/PDIF optical audio output Balanced Audio 5-pin phoenix connector for balanced/unbalanced audio output Balanced connection method: L+, L -, GND, R+, R-...

  • Page 8: Ir Remote And Use

    BZBGEAR BG-8K-88MA PRODUCT MANUAL IR Remote and Use 1. Power on or Standby: Power on the matrix or set it to standby mode. 2. Input 1/2/3/4/5/6/7/8: Select input channel. ◄ ►: Select the last or next source. 3. Output 1/2/3/4/5/6/7/8: Select output channel.

  • Page 9: Ir Cable Pin Assignment

    BZBGEAR BG-8K-88MA PRODUCT MANUAL IR Cable Pin Assignment IR Signal Grounding Power EDID Management The BG-8K88MA has 36 factory defined EDID settings, 3 user-defined EDID modes, and 8 copy EDID modes. You can select a defined EDID mode or copy EDID mode to an input port through front panel buttons, RS-232 control, or Web GUI.
  • Page 10 BZBGEAR BG-8K-88MA PRODUCT MANUAL Defined EDID settings list: EDID EDID Description EDID EDID Description Mode Mode 1080P,2.0CH 4K120(420)_HDR,2.0CH 1080P,5.1CH 4K120(420)_HDR,5.1CH 1080P,7.1CH 4K120(420)_HDR,7.1CH 4K30,2.0CH 4K120(444)_HDR,2.0CH 4K30,5.1CH 4K120(444)_HDR,5.1CH 4K30,7.1CH 4K120(444)_HDR,7.1CH 4K60(420),2.0CH FRL10G_8K_HDR,2.0CH 4K60(420),5.1CH FRL10G_8K_HDR,5.1CH 4K60(420),7.1CH FRL10G_8K_HDR,7.1CH 4K60(444),2.0CH FRL12G_8K_HDR,2.0CH 4K60(444),5.1CH FRL12G_8K_HDR,5.1CH 4K60(444),7.1CH FRL12G_8K_HDR,7.1CH 1080P_HDR,2.0CH...

  • Page 11: Web Gui User Guide

    BZBGEAR BG-8K-88MA PRODUCT MANUAL Web GUI User Guide The BG-8K-88MA can be controlled via the built-in Web GUI as shown below. Step 1: Obtain the current IP Address of the matrix. The default IP address is 192.168.1.100. Users can get the current IP address in two ways: 1: View the IP address via the panel buttons.

  • Page 12: Status Page

    BZBGEAR BG-8K-88MA PRODUCT MANUAL Select the Username from the list, enter the password, and then click the“LOGIN” button. The Status page will appear. The default credentials are listed below: Username: Admin Password: admin Status Page The Status page provides basic information about the Model, the installed firmware version, and the network settings of the device.

  • Page 13: Input Page

    BZBGEAR BG-8K-88MA PRODUCT MANUAL Input Page Input: Input channel of the device. Active: Indicates whether the channel is connected to a signal source. It is green if connected, and yellow if it is not connected. Name: The input channel’s name. You can modify it by entering a name in the input box (max length is 31 characters) .

  • Page 14: Output Page

    BZBGEAR BG-8K-88MA PRODUCT MANUAL Be sure to select the correct file, select “User 1” or “User 2”, and then click “Upload”. After successful uploading the system will prompt as follows: Download EDID to your computer: Click the drop-down box of “Select EDID File” to select the corresponding input channel.

  • Page 15: Ext-Audio Page

    BZBGEAR BG-8K-88MA PRODUCT MANUAL Ext-Audio Page Mode: Click and select the audio mode. The audio sources can't be selected in Bind to Input / Bind to Output modes. In Audio Matrix mode, you can perform the following: • Select any audio source or ARC audio.

  • Page 16: Network Page

    BZBGEAR BG-8K-88MA PRODUCT MANUAL Network Page IP Setting: Modify the IP Mode/IP Address/Gateway/Subnet Mask/Telnet Port as required, click ● “Save” to save the settings. After modification, if the Mode is set to “Static”, it will switch to the corresponding IP ●...

  • Page 17: System Page

    BZBGEAR BG-8K-88MA PRODUCT MANUAL Set Network Defaults: Click “Set Network Defaults'' to restore the unit to its factory default network settings. A prompt will appear as shown below: Click “OK” to search the IP Address again. After searching is completed, it will switch to the login page, the default network setting is completed.

  • Page 18: Rs-232 Control Commands

    PRODUCT MANUAL RS-232 Control Commands The BG-8K-88MA supports RS-232 control. You will need a USB to serial cable with RS-232 DB9 male head. The RS-232 head of the serial cable is connected to the RS-232 control port on the rear of the Matrix, and the USB end of the serial cable is connected to a PC.
  • Page 19 BZBGEAR BG-8K-88MA PRODUCT MANUAL r beep! Get buzzer state r beep! beep on / beep off Lock/Unlock front panel panel button lock on panel button button,z=0~1 (z=0 lock s lock z! s lock 1! off,z=1 lock on) panel button lock off...
  • Page 20 BZBGEAR BG-8K-88MA PRODUCT MANUAL Command Default Function Description Example Feedback Code Setting Output Setting Get output y hdcp status. r output 1 r output y hdcp! output 1 HDCP: HDCP 1.4 (y=0~8,0=all) hdcp! set output y stream enable/ s output...
  • Page 21 BZBGEAR BG-8K-88MA PRODUCT MANUAL Command Code Default Function Description Example Feedback Setting EDID Setting Set HDMI input x EDID mode (x=0~8,z=1~39) z=1. 1080P,2.0CH, z=2. 1080P,5.1CH, z=3. 1080P,7.1CH, z=4. 4K30,2.0CH, z=5. 4K30,5.1CH, z=6. 4K30,7.1CH, z=7. 4K60(420),2.0CH, z=8. input 1 FRL12G_ 4K60(420),5.1CH,...
  • Page 22 BZBGEAR BG-8K-88MA PRODUCT MANUAL z=27. 4K120(420)_HDR,7.1CH z=28. 4K120(444)_HDR,2.0CH, z=29. 4K120(444)_HDR,5.1CH, z=30. 4K120(444)_HDR,7.1CH, z=31. FRL10G_8K_HDR,2.0CH, z=32. FRL10G_8K_HDR,5.1CH, z=33. FRL10G_8K_HDR,7.1CH z=34. FRL12G_8K_HDR,2.0CH, z=35. FRL12G_8K_HDR,5.1CH, z=36. FRL12G_8K_HDR,7.1CH, z=37. user1_EDID, z=38. user2_EDID, z=39, user3_EDID Ext-audio Setting Set output y ext-audio s output y exa x!
  • Page 23 BZBGEAR BG-8K-88MA PRODUCT MANUAL x=16. output 8 ARC output1 ext-audio- >input1 output2 ext-audio- r output y exa in Get output y ext-audio r output >input2 secected input source 0 exa in source! …….. (y=0~8, 0=all) source! output7 ext-audio- >output7 ARC output8 ext-audio- >output8 ARC...
  • Page 24 BZBGEAR BG-8K-88MA PRODUCT MANUAL s cec hdmi out y set hdmi output y volume up by s cec hdmi hdmi output 1 volume up vol+! CEC, y=0~8 (0=all hdmi output) out 1 vol+! s cec hdmi out y set hdmi output y active source by...

  • Page 25: Application Example

    BZBGEAR BG-8K-88MA PRODUCT MANUAL Application Example The audio processor supports microphone inputs, computers, BluRay players, mixers, and other audio source inputs. It can be used in combination with a video conference terminal, recording and broadcasting system, or a mixing console. The following figure shows a general connection diagram.

  • Page 26: Tech Support

    1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com.

  • Page 27: Mission Statement

    AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·...

  • Page 28: Copyright

    PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
