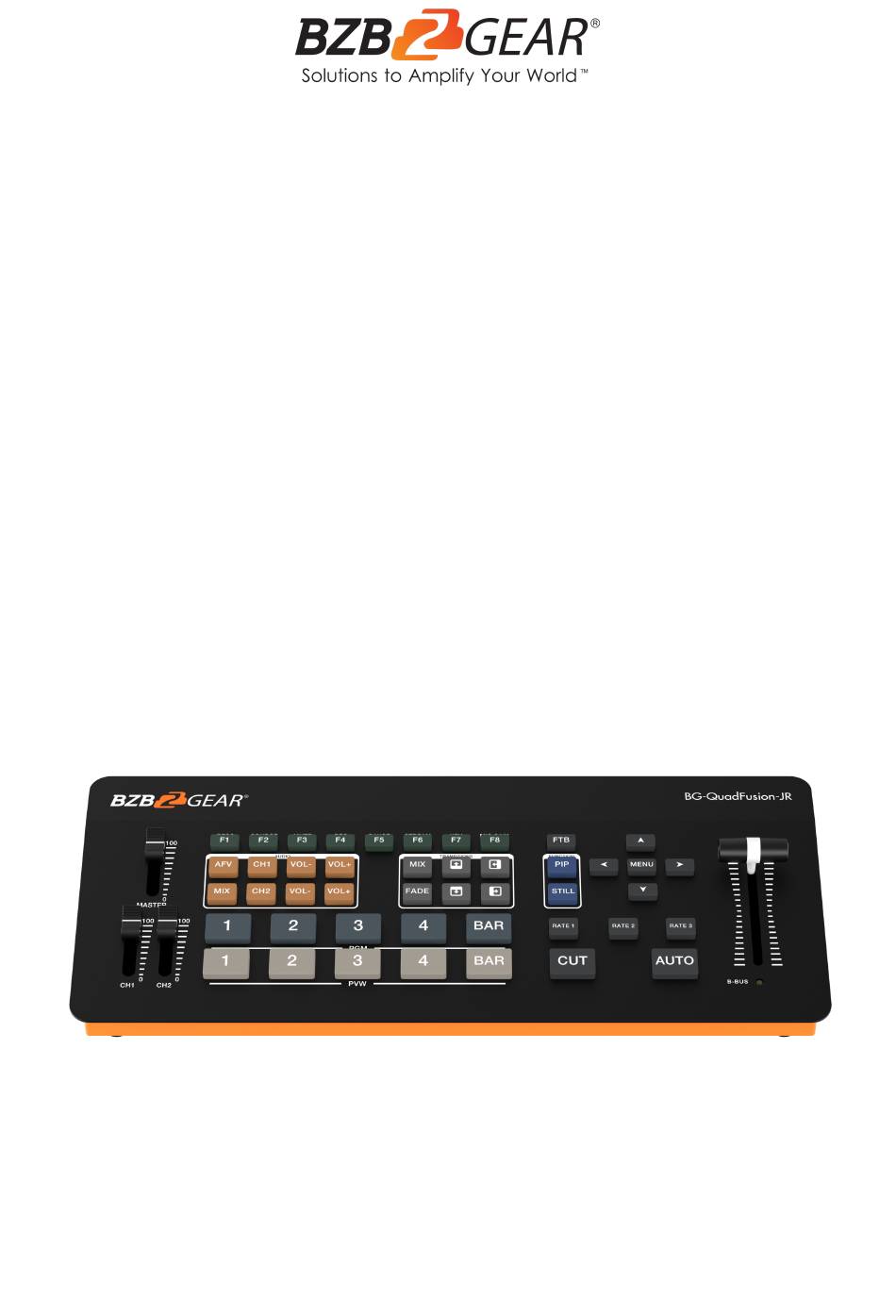

- Page 1 BG-QuadFusion-JR 4-Channel 1080P FHD HDMI & DisplayPort Production Switcher with Built-in Audio Mixer & USB 3.0 Capture Card User Manual...
- Page 2 BZBGEAR BG-QuadFusion-JR PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-QuadFusion-JR PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Package Contents Specifications Panel Descriptions Tally/GPI Pinout Multiview Window Button Descriptions Main Menu / System Settings Web Interface PC QuadFusion Control Application Application Diagram Tech Support Warranty Mission Statement Copyright ·... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-QuadFusion-JR is a 4-channel HDMI production switch with a built-in audio mixer and USB 3.0 capture card. . It supports 4 HDMI inputs as well as 1 alternative DisplayPort input for increased connectivity for a total of 5 video signals. Four of the video signals can be viewed simultaneously using the HDMI multiview output. -
Page 6: Package Contents
BZBGEAR BG-QuadFusion-JR PRODUCT MANUAL Package Contents ● 1 x BG-QuadFusion-JR ● 1 x User Manual ● 1 x Power Adapter (12V DC) ● 1 x USB 3.0 A to B cable Specifications Technical Specifications Input Connections 4x HDMI 1x DisplayPort... -
Page 7: Panel Descriptions
BZBGEAR BG-QuadFusion-JR PRODUCT MANUAL Mechanical Specifications Dimensions(W x D x H) 280mm x 110mm x 36mm Working Humidity 20%-70%RH Operating Temperature 32°F to 122°F (0°C to 50°C) Storage Temperature -4°F to 167°F (-20°C to 75°C) Power Supply Power Rate ≤25w... -
Page 8: Tally/Gpi Pinout
BZBGEAR BG-QuadFusion-JR PRODUCT MANUAL Tally/GPI Pinout Tally Function GPI Function PGM-IN 1 GPI-IN 1 PGM-IN 2 GPI-IN 2 PGM-IN 3 GPI-IN 3 PGM-IN 4 GPI-IN 4 PVW-IN 1 GPI-IN 5 PVW-IN 2 GPI-IN 6 PVW-IN 3 PVW-IN 4 GPI Optional Feature List:... -
Page 9: Multiview Window
BZBGEAR BG-QuadFusion-JR PRODUCT MANUAL Multiview Window ● The selected preview (PVW) window is shown on the top left and highlighted in green. ● The select program (PGM) window is shown on the top right and highlighted in red. ● The 4 windows below correspond to the input sources 1 - 4. Sources can be toggled between the HDMI and DisplayPort connections for each input. -
Page 10: Button Descriptions
BZBGEAR BG-QuadFusion-JR PRODUCT MANUAL Button Descriptions Menu and Directional Arrows MENU: Press the Menu button to open / enter / select a highlighted on screen menu item in the multiview window. Directional Arrows: Use the Directional Arrows to navigate the menu or to change values. - Page 11 BZBGEAR BG-QuadFusion-JR PRODUCT MANUAL Audio Mixer The BG-QuadFusion-JR supports analog balanced audio input and output, HDMI audio extraction, as well as audio matrixing using the Audio Follow Video (AFV) and MIX functions. ● Volume Sliders ○ Master: Overall system volume can be controlled by moving the Master slider up and down and it affects all audio channels.
- Page 12 BZBGEAR BG-QuadFusion-JR PRODUCT MANUAL Transition Controls ● CUT: Immediately switches the PVW and PGM outputs with no transition. ● AUTO: Automatically transition between PVW and PGM selections using the selected transition type. ● Rate 1 - Rate 3: Set the speed at which the AUTO transition button functions. Rate 1 is the highest speed while Rate 3 is the slowest speed.
- Page 13 BZBGEAR BG-QuadFusion-JR PRODUCT MANUAL ○ The PIP window will be active when the T-BAR is in the B-Bus state. ○ The PIP window can have its position, size, and border modified using the control application or on screen menu. ● STILL: The PGM video will freeze on the currently displayed image. The STILL button will illuminate green while active.
-
Page 14: Main Menu / System Settings
BZBGEAR BG-QuadFusion-JR PRODUCT MANUAL ● CHROMA: Removes the specified image background color (Blue or Green), and then overlays the PGM source over the PVW background source. Main Menu / System Settings Using the on screen multiview menu or control software users can access the Main Menu or System Settings to set the IP address on the device, restore the system to factory default settings, change the language and more. -
Page 15: Web Interface
PRODUCT MANUAL Web Interface By default, the BG-QuadFusion-Jr is automatically set to DHCP. This means the unit will automatically pull an IP address from the local network when it is connected. To find the unit's current IP address, navigate to the “Stream Settings” options in the on screen multiview menu. -
Page 16: Pc Quadfusion Control Application
A free Windows PC control software is provided for both of the QuadFusion production switches and allows for full remote control of the connected device. Software can be found and downloaded from the device product page on www.BZBGEAR.com. After downloading the application, extract the BG-QuadFusion.exe file to your desired location. - Page 17 BZBGEAR BG-QuadFusion-JR PRODUCT MANUAL The virtual software functions exactly the same as if you were pressing the buttons on the unit itself and it will cause the physical unit to mirror your actions. NOTE: T-Bar and volume sliders will re-adjust when they are physically moved on the unit.
-
Page 18: Application Diagram
BZBGEAR BG-QuadFusion-JR PRODUCT MANUAL Application Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 19: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 20: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change without notice.
