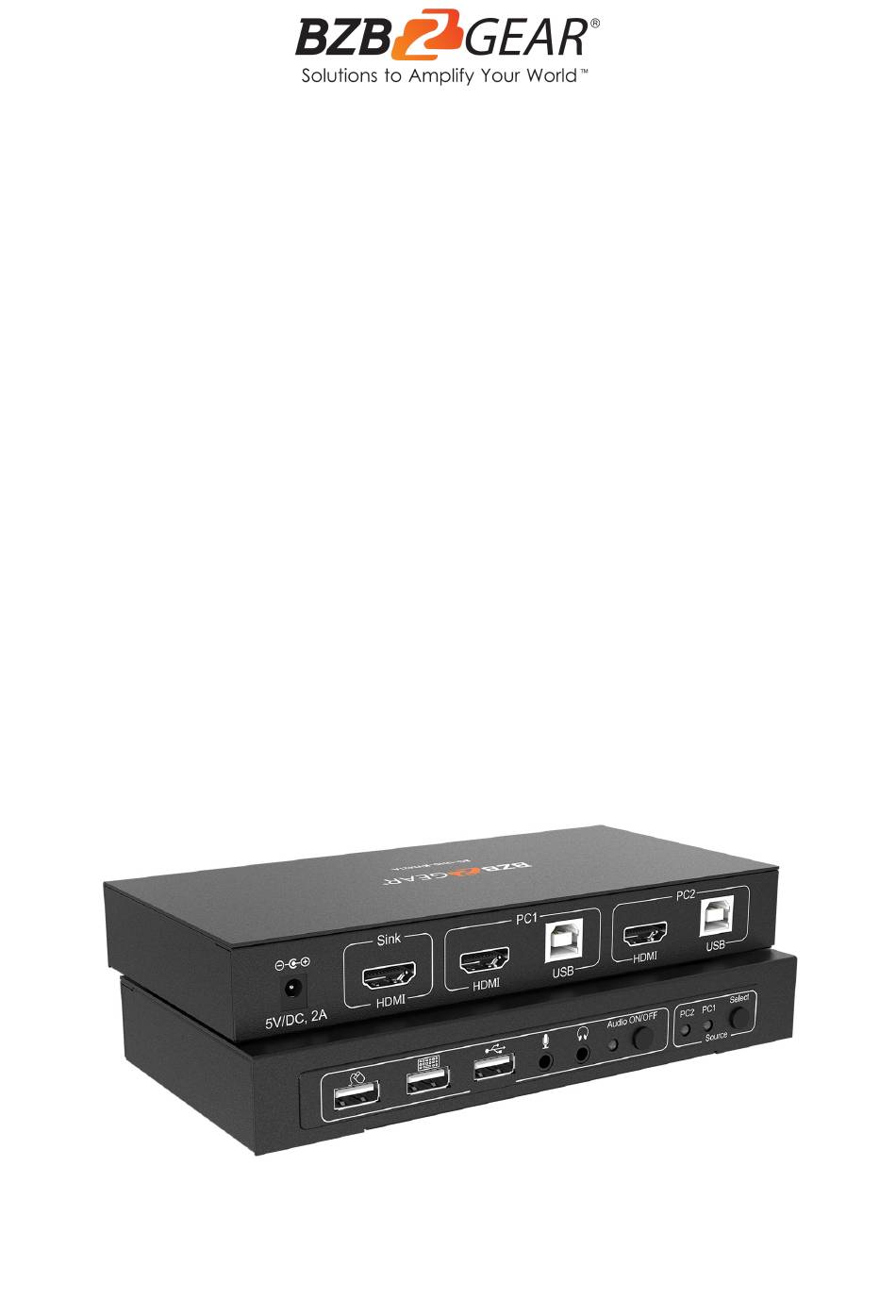

- Page 1 BG-UHD-KVM21A 2X1 1080P KVM Switcher with USB 2.0 and Audio Support User Manual...
- Page 2 BZBGEAR BG-UHD-KVM21A PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-KVM21A PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Compatibility: Packing List Technical Specifications Operation Controls and Functions Hardware Installation Hotkey Commands (HOTKEY) Notes: Application Example Tech Support Limited Product Warranty Terms Mission Statement Copyright · ·... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-UHD-KVM21A is a 4K HDMI USB 2.0 KVM switch. With support for resolutions up to 4K@30Hz, this device allows users to control two computers and share USB peripherals from a single workstation. Perfect for offices, software programmers, and technical support desks, users can easily switch between multiple operating systems without leaving their seat. -
Page 6: Operation Controls And Functions
BZBGEAR BG-UHD-KVM21A PRODUCT MANUAL Operation Controls and Functions Front Panel 1. USB Mouse Port: Connect to a USB mouse. 2. USB Keyboard Port: Connect to a USB keyboard. 3. USB Port: Connect to other USB devices. 4. MIC: Connect to a microphone. -
Page 7: Hardware Installation
BZBGEAR BG-UHD-KVM21A PRODUCT MANUAL Hardware Installation 1. Power off all devices you plan to connect to the 2x1 USB HDMI KVM Switch 4K2K. 2. Connect a monitor/display to HDMI OUTPUT of the switch by an HDMI cable. 3. Connect a USB keyboard and a USB mouse to the USB keyboard and Mouse ports of the switch. -
Page 8: Hotkey Commands
BZBGEAR BG-UHD-KVM21A PRODUCT MANUAL Hotkey Commands The Switch can respond to several hotkey commands. The basic form of the hotkey command is to tap the SCROLL LOCK key twice, then tap the command key(s). The following table shows the various hotkey commands that can be performed. - Page 9 BZBGEAR BG-UHD-KVM21A PRODUCT MANUAL CAPS: Command Function [Caps] ++ [Caps] + [→or↓] PC Switch to the next PC [Caps] ++ [Caps] + [←or↑] PC Switch to the previous PC [Caps] ++ [Caps] + [B] Turn the beep sound on or off.
- Page 10 BZBGEAR BG-UHD-KVM21A PRODUCT MANUAL CTRL + SHIFT: Command Function [Ctrl] ++ [Ctrl] or [Ctrl + Shift PC Switch to the next PC + →or↓] [Ctrl + Shift + ←or↑] PC Switch to the previous PC [Ctrl + Shift + B] Turn the beep sound on or off.
- Page 11 BZBGEAR BG-UHD-KVM21A PRODUCT MANUAL NUM: Command Function [Num] ++ [Num] + [→or↓] PC Switch to the next PC [Num] ++ [Num] + [←or↑] PC Switch to the previous PC [Num] ++ [Num] + [B] Turn the beep sound on or off.
-
Page 12: (Hotkey) Notes
BZBGEAR BG-UHD-KVM21A PRODUCT MANUAL (HOTKEY) Notes: 1. Hotkey Usage: ○ "++": Indicates quickly and continuously pressing the Scroll key twice. [Scroll] ++ [Scroll] + [1] ○ Example: ■ Quickly press the Scroll key twice. ■ Press the numeric "1" key. -
Page 13: Application Example
BZBGEAR BG-UHD-KVM21A PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 14: Tech Support
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change... - Page 15 BZBGEAR BG-UHD-KVM21A PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
