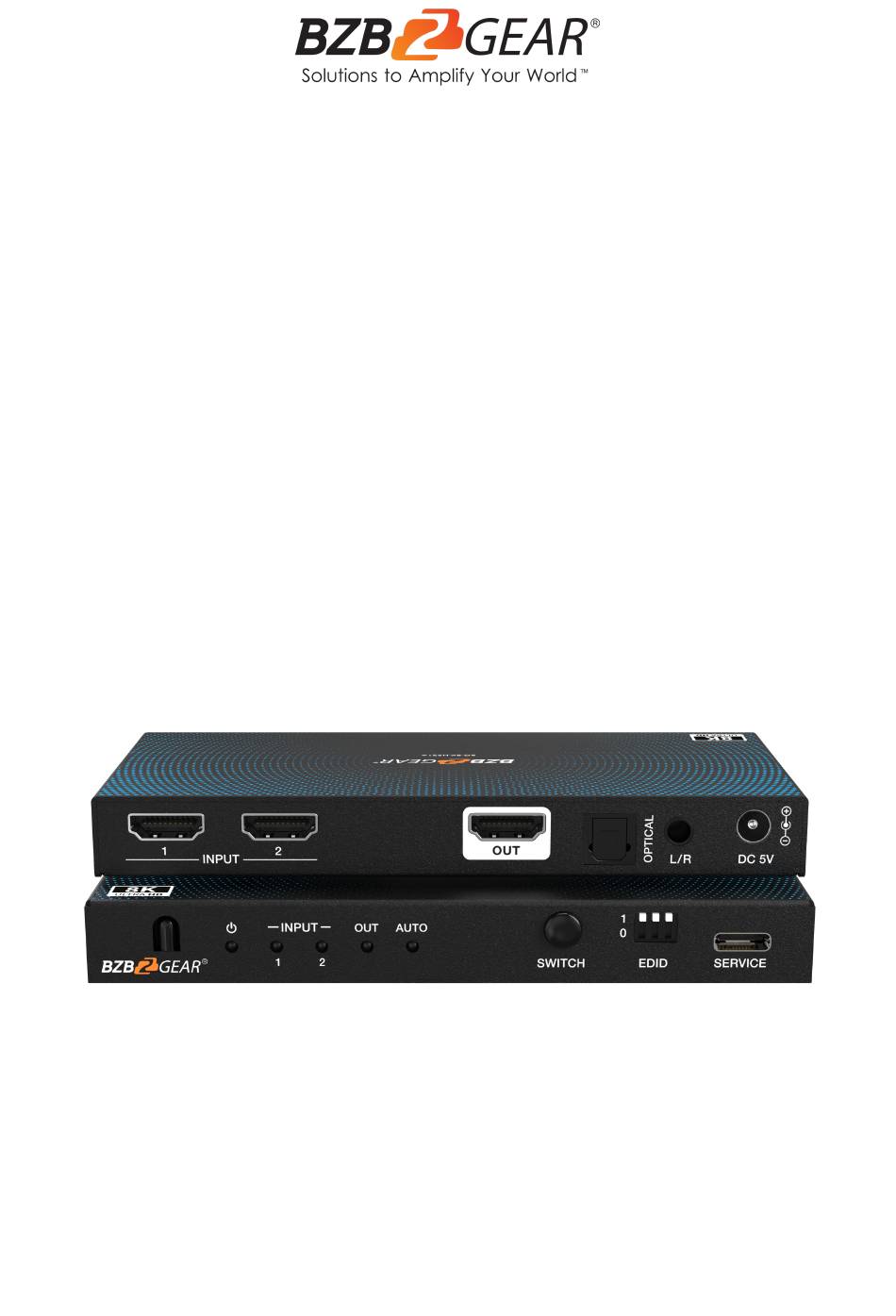

- Page 1 BG-8K-HS21A 2x1 8K UHD HDMI 2.1 Switcher with Audio De-embedder User Manual...
- Page 2 BZBGEAR BG-8K-HS21A PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-8K-HS21A PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Surge protection device recommended Introduction Features Packing List Specifications Operation Controls and Functions IR Remote Connection Diagram Troubleshooting Tech Support Limited Product Warranty Terms Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
BZBGEAR BG-8K-HS21A PRODUCT MANUAL Introduction This BG-8K-HS21A 48Gbps 2x1 Switcher allows you to switch between two HDMI sources to one HDMI display. It supports video resolutions up to 8K@60Hz 4:2:0. Additionally, it features advanced EDID management and an audio de-embedding function, with output available through optical and analog ports. -
Page 6: Specifications
BZBGEAR BG-8K-HS21A PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps Up to 8K@60Hz YCbCr 4:2:0 12bit, Video Resolution 4K@120Hz RGB/YCbCr 4:4:4 12bit Color Depth 8/10/12bit Color Space RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0... -

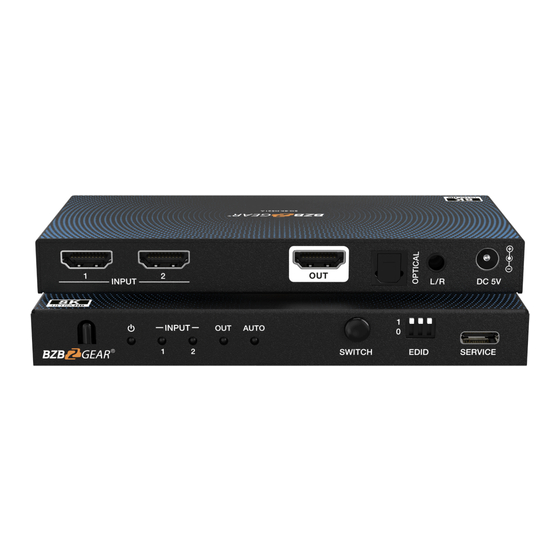

Page 7: Operation Controls And Functions
BZBGEAR BG-8K-HS21A PRODUCT MANUAL Operation Controls and Functions Front and Rear Panel Name Function Description IR Window IR input signal receiving window. The power LED lights in green when the device is working, POWER LED red when the device is on standby. - Page 8 BZBGEAR BG-8K-HS21A PRODUCT MANUAL 010- FRL 10G_8K_HDR, Audio 2ch PCM 001- FRL 10G_8K_HDR, Audio 5.1ch PCM/DTS/DOLBY 000- FRL 10G_8K_HDR, Audio 7.1ch PCM/DTS/DOLBY/HD SERVICE Firmware update and debug port. HDMI signal input port, connecting to HDMI source device IN port (1~2) such as DVD or PS5 with an HDMI cable.
-
Page 9: Ir Remote
BZBGEAR BG-8K-HS21A PRODUCT MANUAL IR Remote Connection Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 10: Troubleshooting
BZBGEAR BG-8K-HS21A PRODUCT MANUAL Troubleshooting Problems Causes Solutions No Power / All LED off Power supply not connected, Check if the power supply is connected fully, or wrong power connected correctly and the supply. output voltage value is within recommended specifications. -
Page 11: Tech Support
Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 12: Mission Statement
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
