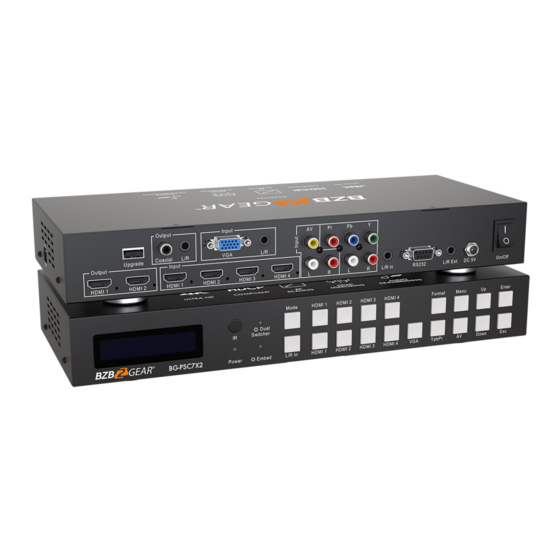

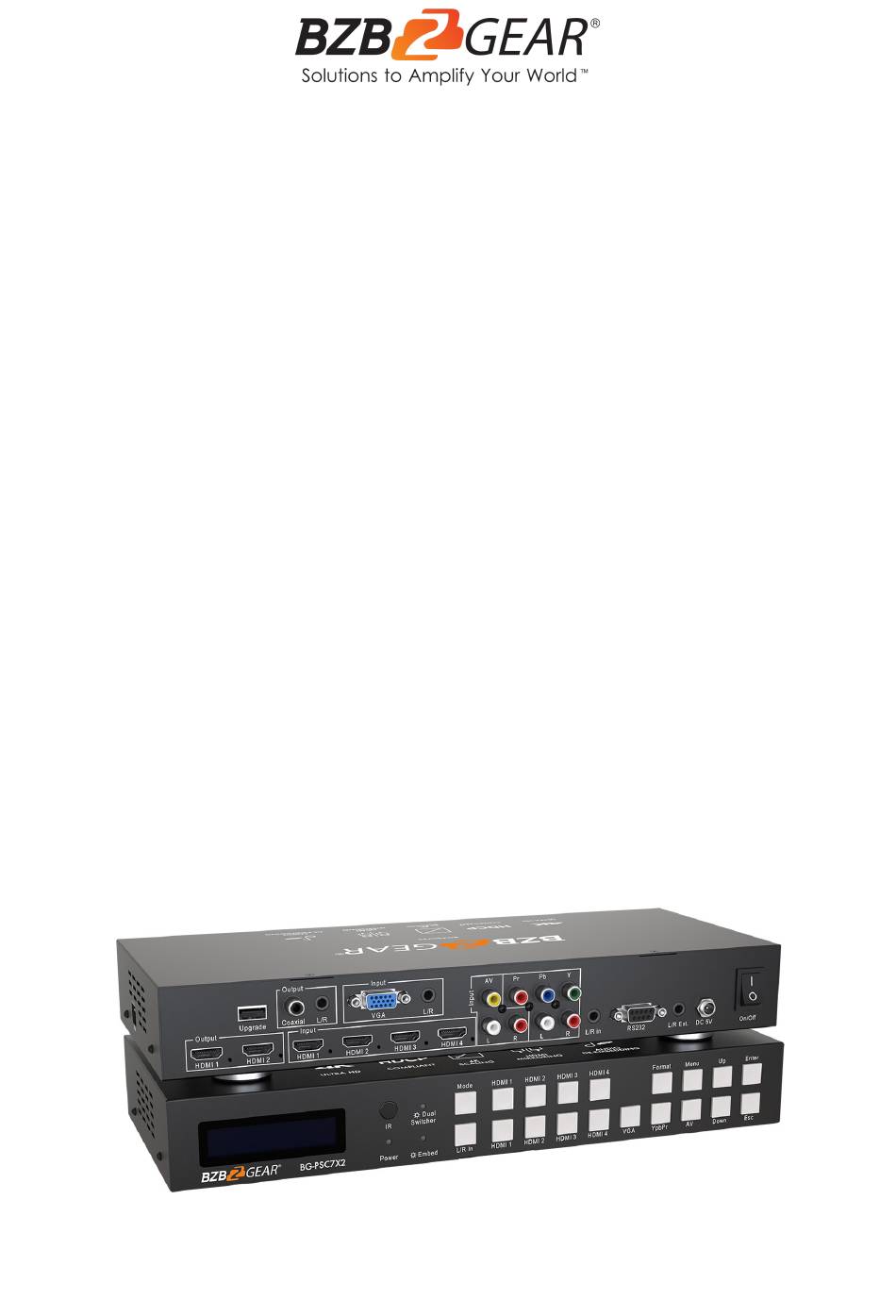

- Page 1 BG-PSC7X2 7X2 4K UHD HDMI/Component/VGA/Composite Video & Audio Presentation Switcher/Scaler User Manual...
- Page 2 BZBGEAR BG-PSC7X2 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-PSC7X2 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Menu Introduction Remote Control Description RS-232 Pin Assignment RS232 and Telnet Commands Application Example Tech Support Warranty Mission Statement Copyright ·... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
4K@30Hz, this unit is also equipped with an integrated scaler which allows resolutions as low as 640 x 480 to be scaled up to 1920x1080@60Hz. The powerful dual-switcher mode allows the BG-PSC7X2 to simultaneously function as a 4x1 4K HDMI switcher and a 7x1 1080P multi-format switcher. Featuring audio embedding, de-embedding, and supporting a variety of input connections, this unit is an effective... -
Page 6: Technical Specifications
BZBGEAR BG-PSC7X2 PRODUCT MANUAL Technical Specifications General Bandwidth: 10.2Gbps Video Input Connectors: 4x HDMI Type A, 1x VGA, 1xYPbPr, 1x AV Video Output Connectors: 2x HDMI Type A Audio Input Connectors: 2x 3.5mm stereo jack, 4x RCA (2 x L/R) Audio Output Connectors: 1x 3.5mm stereo jack, 1x RCA (SPDIF) -
Page 7: Operation Controls And Functions
BZBGEAR BG-PSC7X2 PRODUCT MANUAL Operation Controls and Functions Front Panel 1. LCD display: It shows the status of input-to-output selection, EDID info, and other information. 2. IR receiver window: Receive the IR from the remote control. 3. Dual switcher LED indicator: When the LED is lit, dual switcher mode is on. - Page 8 BZBGEAR BG-PSC7X2 PRODUCT MANUAL Rear Panel 19. USB Upgrade port: Used to upgrade the Scaler built-in BG-PSC7X2. 20. Audio output: It has coaxial and L/R outputs, the audio outputs will always follow HDMI output 2. 21. VGA input: VGA input with L/R audio input.
-
Page 9: Menu Introduction
BZBGEAR BG-PSC7X2 PRODUCT MANUAL Menu Introduction Three EDID segments will display on the LCD panel formatted as: INPUT VIDEO AUDIO, for example: IN1 1080P 2.0CH, means to set 1080P 2.0CH EDID to INPUT1. The blinking segment is the one that can be changed currently, pressing the “Menu” button will change the segment. -
Page 10: Remote Control Description
HDMI2/HDBT Out: Source selection for HDMI output 2 when in Matrix Switcher mode or when in Splitter mode Format: Video output resolution selection. The BG-PSC7X2 includes a built-in video scaler. Press the required resolution button on the remote control to change the HDMI output video resolution. -
Page 11: Rs-232 Pin Assignment
BZBGEAR BG-PSC7X2 PRODUCT MANUAL RS-232 Pin Assignment The connection method is as follows: Baud Rate: 57600 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None BG-PSC7X2 Remote Control Console Assignment Assignment · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 12: Rs232 And Telnet Commands
BZBGEAR BG-PSC7X2 PRODUCT MANUAL RS232 and Telnet Commands Command Action Print Help Information HELP Print Help Information STATUS Print System Status And Port Status Power On, System Run On Normal State POFF Power Off, System Run On Power Save State IR ON/OFF Set System IR Control On Or Off... -
Page 13: Application Example
BZBGEAR BG-PSC7X2 PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 14: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 15: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 16: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
