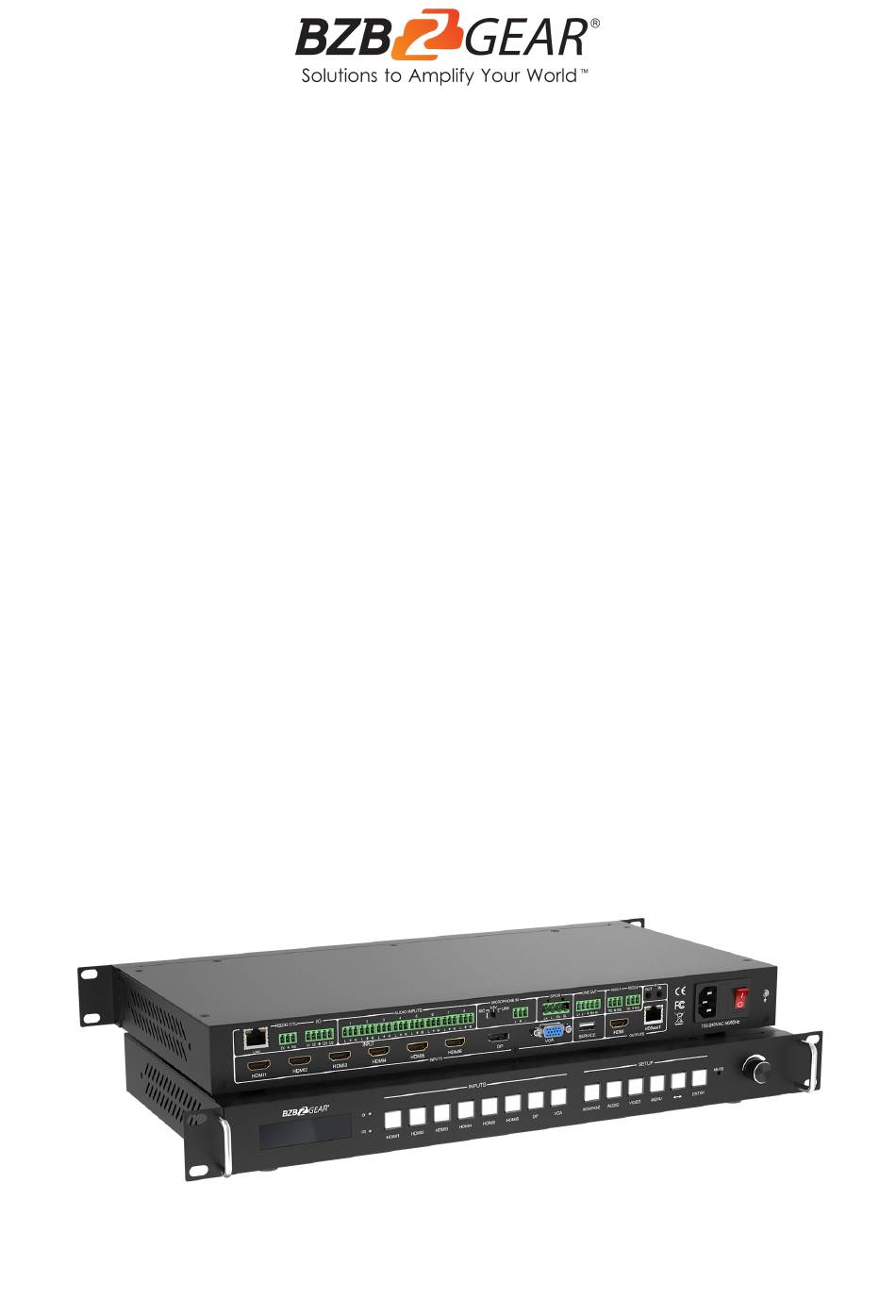

- Page 1 BG-PSC8X2HDB 8X2 4K 18Gbps UHD HDMI/IP/DP/VGA/Audio/HDBaseT Output Seamless Presentation Switcher User Manual...
- Page 2 BZBGEAR BG-PSC8X2HDB PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-PSC8X2HDB PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-PSC8X2HDB is an 18Gbps 8x2 seamless 4K presentation switcher. Equipped with 8 video inputs including 6 HDMI ports, 1 DisplayPort, and 1 VGA port, this HDMI 2.0, HDCP 2.2 and DP 1.2 compliant unit supports multi-format signal processing for seamless switching between all sources. -
Page 6: Technical Specifications
BZBGEAR BG-PSC8X2HDB PRODUCT MANUAL Technical Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 DP Version DP 1.2 Video Bandwidth 18Gbps Video Resolution 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz. Input Video Resolution 480p,576p,720p, 1920x1080i, 1920x1080p, 3840x2160@ 24Hz/25Hz/30Hz/50Hz/60Hz, 4096x2160@24Hz/25Hz/ 30Hz/50Hz/60Hz. -
Page 7: Operation Controls And Functions
BZBGEAR BG-PSC8X2HDB PRODUCT MANUAL Operation Controls and Functions Front Panel 1. LCM screen: Display EDID, output resolution, audio configuration, and other information. 2. Power LED: When the product is powered on, the red LED will illuminate. 3. IR: IR LED. - Page 8 BZBGEAR BG-PSC8X2HDB PRODUCT MANUAL Rear Panel 11. PC control: LAN port: Connect to a router. RS-232 CTL: Connect to a PC or control system. 12. I/O port: I1 & I2 are for input level detecting and O1 & O2 are for output level setting.
-
Page 9: Application Example
BZBGEAR BG-PSC8X2HDB PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 10: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 11: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 12: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
